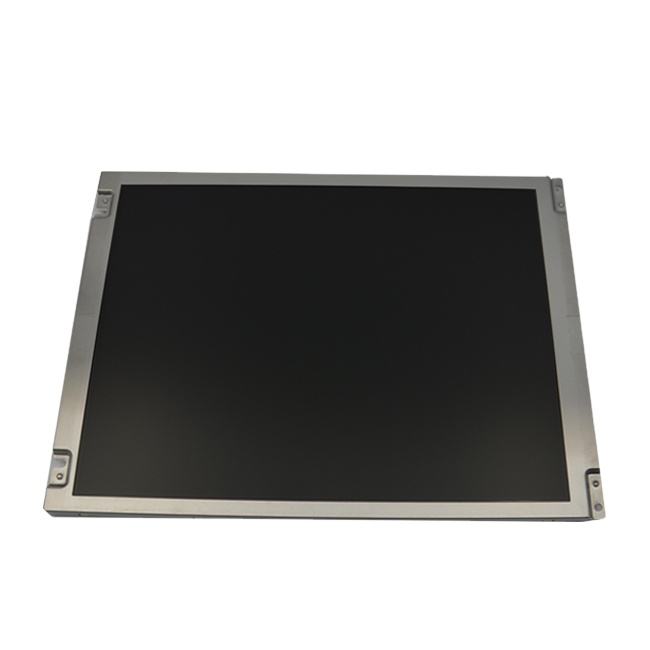

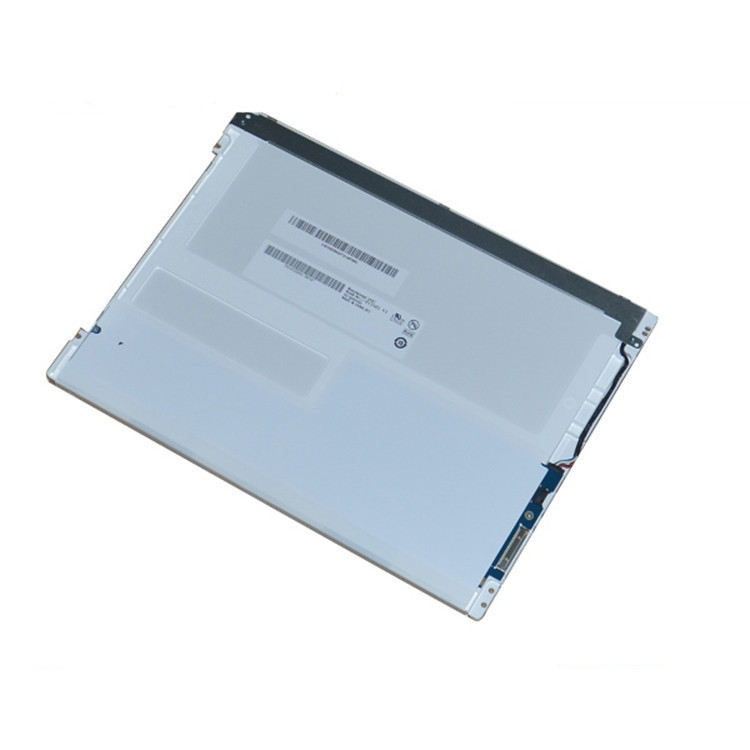

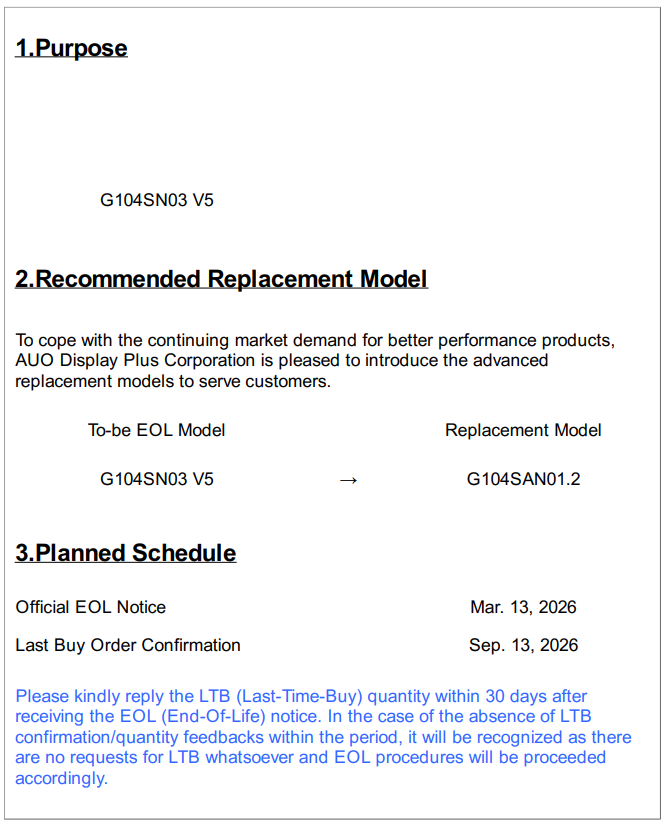

AUO G104SN03 V5 Application Details
| Basic Detail : |
Manufacturer |
AUO |
Model Name |
G104SN03 V5 |
| Panel Type |
a-Si TFT-LCD , LCM |
Model Alias |
G104SN03 V.5 |
| Panel Size |
10.4inch |
Designed For |
Idustrial |
| Maximum Ratings : |
OP Temperature |
-20~ 70°C |
ST Temperature |
-20 ~ 70 °C |
| RoHS |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
| Features : |
Lamp Repaceable，With LED Driver，180°Reverse，6/8bit，WLED Backlight , Matte |
AUO G104SN03 V5 Optical Details
| Basic Information : |
Luminance |
230cd/m² (Typ.) |
Contrast Ratio |
500:1 (Typ.) (Transmissive) |
| Good View at |
- |
Response Speed |
10/5 (Typ.)(Tr/Td) ms |
| Viewing Angle |
80/80/60/70 (Typ.)(CR=10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.310; Wy:0.330 |
Support Color |
262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature |
6638K |
White Variation |
1.33/1.54 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
50% |
sRGB |
69% coverage |
| Adobe RGB |
52% coverage |
DCI-P3 |
52% coverage |
| Rec.2020 |
37% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G104SN03 V5 Mechanical Details
| Pixel Features : |
Number of Pixel |
800(RGB)×600, SVGA |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch(W×H) |
0.088×0.264 mm (H×V) |
Pixel Pitch(W×H) |
0.264×0.264 mm (H×V) [96PPI] |
| Physical Size : |
Active Viewing(mm) |
211.2×158.4 mm (H×V) |
Outline Dim.(mm) |
236(W)×176.9(H) mm |
| Bezel Opening(mm) |
214.8(W)×162.0(H) mm |
Overall Depth(mm) |
5.7±0.3 mm |
| Outline Features : |
Form Style |
Flat Rectangle |
Shape Style |
|
| Aspect Ratio |
4:3 (H:V) |
Orientation |
Landscape type |
| Mounting : |
Face mounting holes (4-Φ2.5, 2-R1.25) on left, right bezel |
| Other Detail : |
Weight |
280g (Typ.) |
Treatment |
Antiglare, Hard coating (3H) |
AUO G104SN03 V5 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
Yes (180°) |
| Total Consumption : |
3.50W (Typ.) |
AUO G104SN03 V5 Interface Detail
| Signal Electrical : |
Input Current |
320mA (Typ.) |
Input Voltage |
3.3V (Typ.) |
| Consumption |
1.06W (Typ.) |
Signal Interface |
LVDS (1 ch, 6/8-bit) |
| Logic Voltage for Signals : |
- |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Pin Assignment |
| STM |
MSB24013P20HA |
1.0mm |
20pins |
1 pcs |
LVDS-20P1C8B-080A |
AUO G104SN03 V5 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
3S12P |
Position |
Edge light type |
| Exchange |
Replaceable |
Lamp Shape |
3 strings |
Lamp Life |
30K(Typ.) (Hours) |
| Driver Electrical : |
Voltage Input |
26.0/29.2V (Typ./Max.) |
Current Input |
25mA (Typ.) |
| Consumption |
1.95W (Typ.) |
| Interface Features : |
Position |
- |
Type |
Connector |
| Backlight Driver : |
With LED Driver |
| Driver Electrical : |
Input Voltage |
10.8/12.0/12.6V (Min./Typ./Max.) |
Input Current |
0.2A (Typ.) |
| Consumption |
2.44W (Typ.) |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Configuration |
| E&T |
3808K-F05N-02R |
1.25mm |
5 pins |
1 pcs |
|
AUO G104SN03 V5 Packing Details
| Package Box : |
Amount |
Size (L×W×H) |
Weight |
| 30pcs / box |
448×402×350mm |
13.0 Kgs |
