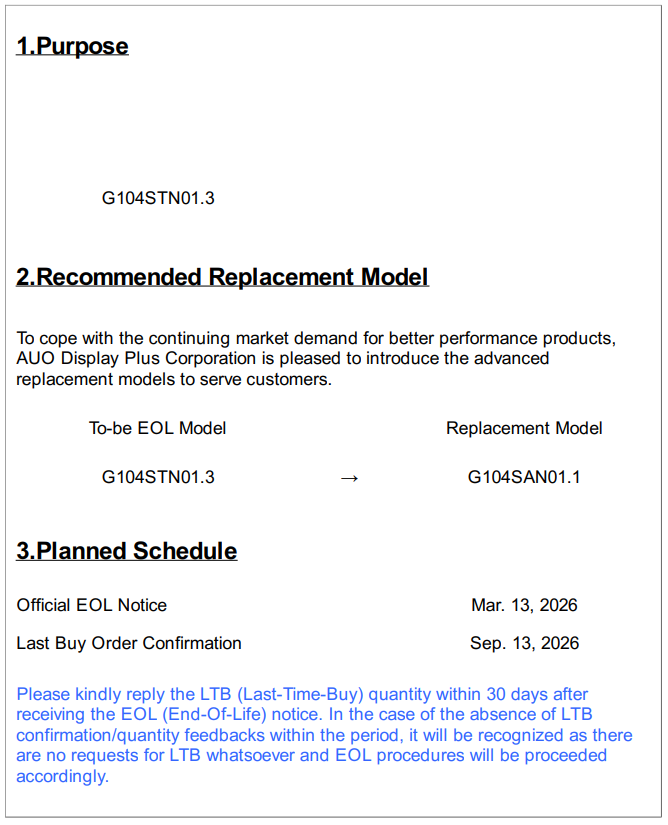

AUO G104STN01.3 Application Details
| Basic Detail : |
Manufacturer |
AUO |
Model Name |
G104STN01.3 |
| Panel Type |
a-Si TFT-LCD , LCM |
Model Alias |
G104STN01.3 |
| Panel Size |
10.4inch |
Designed For |
Idustrial |
| Maximum Ratings : |
OP Temperature |
-30 ~ 80°C |
ST Temperature |
-30 ~ 80 °C |
| RoHS |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
| Features : |
Wide Temperature，WLED Backlight，Life>=100K hours,With LED Driver,180°Reverse，Matte,6/8 bit |
AUO G104STN01.3 Optical Details
| Basic Information : |
Luminance |
450cd/m² (Typ.) |
Contrast Ratio |
700:1 (Typ.) (Transmissive) |
| Good View at |
- |
Response Speed |
20/10 (Typ.)(Tr/Td) ms |
| Viewing Angle |
80/80/60/70 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.310; Wy:0.330 |
Support Color |
262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature |
6638K |
White Variation |
1.33/1.54 (Typ./Max.)(5 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
53% |
sRGB |
73% coverage |
| Adobe RGB |
55% coverage |
DCI-P3 |
55% coverage |
| Rec.2020 |
39% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G104STN01.3 Mechanical Details
| Pixel Features : |
Number of Pixel |
800(RGB)×600, SVGA |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch(W×H) |
0.088×0.264 (H×V) |
Pixel Pitch(W×H) |
0.264×0.264 (H×V) [96PPI] |
| Physical Size : |
Active Viewing(mm) |
211.2(H) × 158.4(V) |
Outline Dim.(mm) |
227.3(H) × 177.5(V) |
| Bezel Area(mm) |
215.4(H) × 161.9(V) |
Depth(mm) |
6.4/9.3 (Typ./Max.) |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
4:3 (H:V) |
Orientation |
Landscape type |
| Mounting : |
Side mounting holes (4-M3) on left, right bezel |
| Other Spec : |
Weight |
294g (Typ.) |
Treatment |
Antiglare, Hard coating (3H) |
AUO G104STN01.3 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
Yes (180°) |
| Total Consumption : |
3.9W (Typ.) |
AUO G104STN01.3 Interface Detail
| Signal Electrical : |
Voltage Supply |
3.3V (Typ.) |
Current Supply |
320mA (Typ.) |
| Consumption |
1.5W (Typ.) |
Signal Interface |
LVDS (1 ch, 6/8-bit) |
| Interface Features : |
Position |
- |
Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
| JAE |
FI-SEB20P-HFE |
1.0 mm |
20 pins |
1.25 pcs |
|
AUO G104STN01.3 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
- |
Position |
Edge light type (Bottom side) |
| Exchange |
- |
Lamp Shape |
- |
Lamp Life |
100K(Min.) (Hours) |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
| JAE |
FI-S6P-HFE |
1.25 mm |
6 pins |
1 pcs |
|
| Backlight Driver : |
With LED Driver |
| Driver Electrical : |
Voltage Supply |
12.0V (Typ.) |
Current Supply |
0.2A (Typ.) |
| Consumption |
2.4W (Typ.) |
AUO G104STN01.3 Packing Details
| Package Box : |
Quantity |
Weight |
Box Size |
| 20 pcs / box |
8.48 Kgs |
450×275×320 mm (L×W×H)
|
