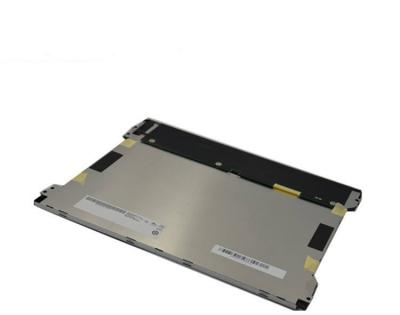

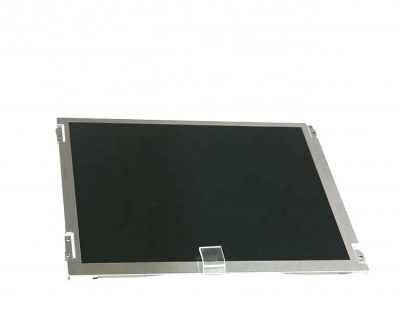

  • Wholesale AUO 12.1 inch tft lcd panel G121XN01 V001 with 1024*768 and working wi
  • Wholesale AUO 12.1 inch tft lcd panel G121XN01 V001 with 1024*768 and working wi
  • Model:G121XN01 V001
  • Brand:AUO
  • Size:12.1inch
  • Resolution:1024×768
  • Brightness:500 cd/m² (Typ.)
  • Perspective:80/80/70/70
  • Interface:LVDS
  • Operating Temp.:-30 ~ 85 °C
  • Production State:In Production
  • Get a Quote
  • Technical Parameters
  • AUO  G121XN01 V001 Application Details
    Basic Detail : Manufacturer AUO Model Name G121XN01 V001
    Panel Type a-Si TFT-LCD , LCM Model Alias
    Panel Size 12.1inch Designed For Idustrial
    Maximum Ratings : OP Temperature -30 ~ 85°C ST Temperature -30 ~ 85 °C
    RoHS RoHS Vibration Level 1.5G (14.7 m/s²)
    Features : Wide Temperature,WLED Backlight,Life>=50K hours,With LED Driver,Upside I/F,180°Reverse,Matte,6/8 bit

    AUO  G121XN01 V001 Optical Details
    Basic Information : Luminance 500cd/m² (Typ.) Contrast Ratio 700:1 (Typ.) (Transmissive)
    Good View at - Response Speed 25/10 (Typ.)(Tr/Td) ms
    Viewing Angle 80/80/70/70 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
    Color Performance : Chromaticity Wx:0.310; Wy:0.330 Support Color 262K/16.2M (6-bit / 6-bit + FRC)
    Color Temperature 6638K White Variation 1.33 (Max.)(5 points)
    1931 Color Gamlt : NTSC Ratio 72% sRGB 93% coverage
    Adobe RGB 72% coverage DCI-P3 75% coverage
    Rec.2020 54% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    AUO   G121XN01 V001 Mechanical Details
    Pixel Features : Number of Pixel 1024(2)×768(2), XGA Arrangement RGBW Rectangle
    Dot Pitch(W×H) 0.120×0.120 mm Pixel Pitch(W×H) 0.240×0.240 mm  [105PPI]
    Physical Size : Active Viewing(mm) 245.76(W)×184.32(H) mm Outline Dim.(mm) 279(H) × 209(V)
    Bezel Area(mm) 250.8(H) × 189.4(V) Depth(mm) 6.0/9.0 (Typ./Max.)
    Outline Features : Form Style Flat Rectangle Outline Shape
    Aspect Ratio 4:3 (H:V) Orientation Landscape type
    Mounting : Face mounting holes (4-Φ3.4, 3-R1.7) on left and right bezel
    Other Spec : Weight 510g (Max.) Treatment Antiglare, Hard coating (3H)

    AUO  G121XN01 V001 Electronics Details
    Refresh Rate : 60Hz
    Reverse Scan : Yes (180°)
    Total Consumption : 6.80W (Typ.)

    AUO   G121XN01 V001 Interface Detail
    Signal Electrical : Voltage Supply 3.3V (Typ.) Current Supply 280/336mA (Typ./Max.)
    Consumption 0.924/1.11W (Typ./Max.) Signal Interface LVDS (1 ch, 6/8-bit)
    Interface Features : Position Rear Type Connector
    Interface Detail : Brand Model Pitch Pins Quantity Pin Configuration
    STM MSB240420E 1.25 mm 20 pins 1 pcs LVDS-20P1C8B-080B

    AUO   G121XN01 V001 Backlight Details
    Lamp Features : Lamp Type WLED Quantity 9S2P Position Edge light type (Top side)
    Exchange No Lamp Shape 2strings Lamp Life 50K(Min.) (Hours)
    Interface Features : Position - Physical Type Connector
    Interface Detail : Brand Model Pitch Pins Quantity Pin Configuration
    E&T 3808K-F05N-02R 1.25 mm 5 pins 1 pcs
    Backlight Driver : With LED Driver
    Driver Electrical : Voltage Supply 10.8/12.0/12.6V (Min./Typ./Max.) Current Supply 0.49A (Typ.)
    Consumption
    5.88/7.5W (Typ./Max.)

    AUO  G121XN01 V001 Packing Details
    Package Box : Quantity Weight Box Size
    20 pcs / box 14.8 Kgs
    570×320×420mm (L×W×H)
