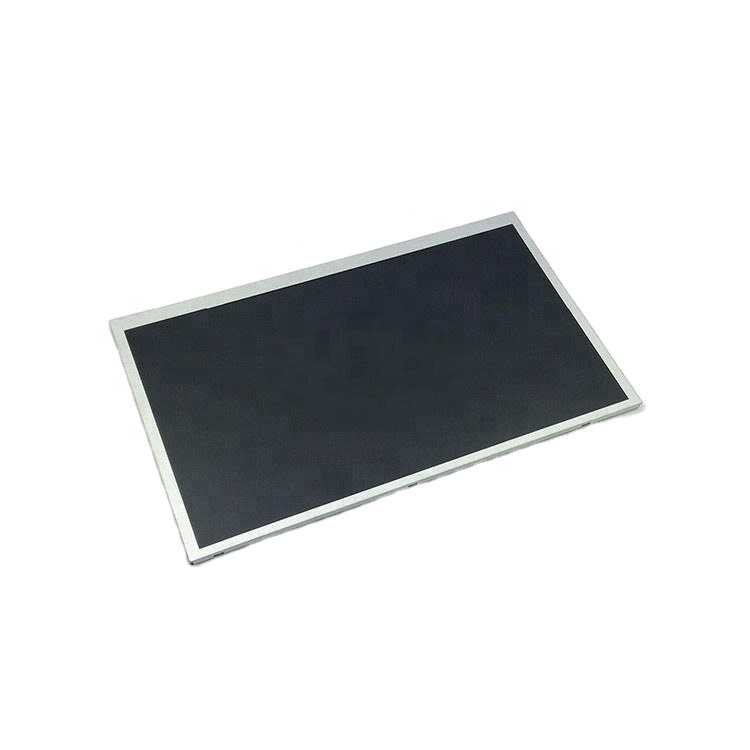

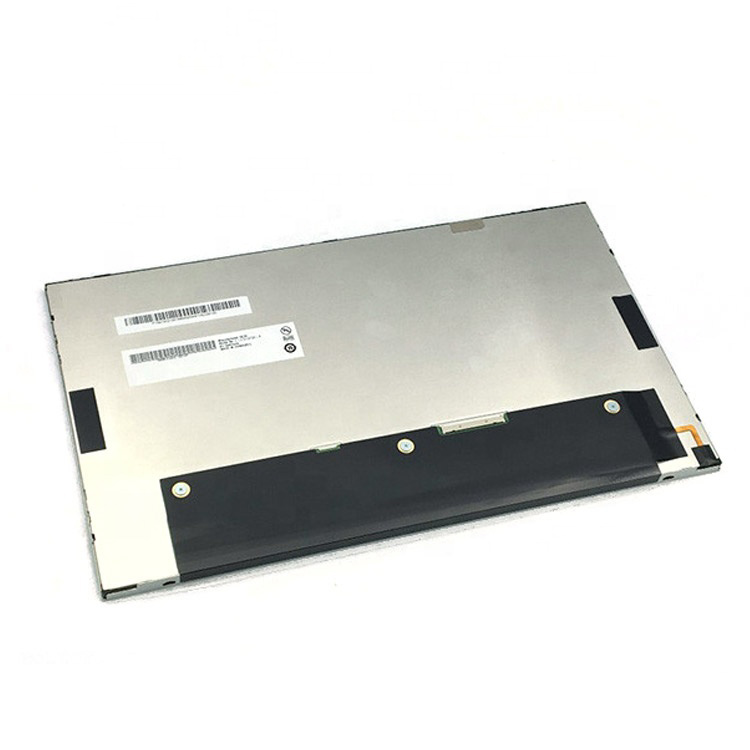

AUO G133XTN01.1 Application Details
| Basic Detail : |
Manufacturer |
AUO |
Model Name |
G133XTN01.1 |
| Panel Type |
a-Si TFT-LCD , LCM |
Model Alias |
|
| Panel Size |
13.3inch |
Designed For |
Idustrial |
| Maximum Ratings : |
OP Temperature |
-20 ~ 60°C |
ST Temperature |
-30 ~ 70 °C |
| RoHS |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
| Features : |
WLED Backlight，Reverse I/F, With LED Driver, Matte |
AUO G133XTN01.1 Optical Details
| Basic Information : |
Luminance |
300cd/m² (Typ.) |
Contrast Ratio |
400:1 (Typ.) (Transmissive) |
| Good View at |
- |
Response Speed |
25 (Typ.)(Tr+Td) |
| Viewing Angle |
70/70/50/60 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Support Color |
16.7M (6-bit + Hi-FRC) |
| Color Temperature |
6485K |
White Variation |
1.25 (Max.)(5 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
46% |
sRGB |
65% coverage |
| Adobe RGB |
48% coverage |
DCI-P3 |
48% coverage |
| Rec.2020 |
34% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G133XTN01.1 Mechanical Details
| Pixel Features : |
Number of Pixel |
1366(RGB)×768, WXGA |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch(W×H) |
0.0716×0.2148 mm (H×V) |
Pixel Pitch(W×H) |
0.2148×0.2148 mm (H×V) [118PPI] |
| Physical Size : |
Active Viewing(mm) |
293.42×164.97 mm (H×V) |
Outline Dim.(mm) |
306.3×203.7 mm (H×V) |
| Bezel Area(mm) |
295.07(H) × 166.68(V) |
Depth(mm) |
3.0 (Max.) mm |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
16:9 (H:V) |
Orientation |
Landscape type |
| Mounting : |
Face mounting holes (8 pcs) on up, down slugs |
| Other Spec : |
Weight |
255g (Max.) |
Treatment |
Antiglare, Hard coating (3H) |
AUO G133XTN01.1 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
No |
| Total Consumption : |
3.0W (Max.) |
AUO G133XTN01.1 Interface Detail
| Signal Electrical : |
Voltage Supply |
3.3V (Typ.) |
Current Supply |
0.2/0.21A (Typ.) |
| Consumption |
0.66/0.76W (Typ./Max.) |
Signal Interface |
LVDS (1 ch, 8-bit) |
| Interface Features : |
Position |
Rear |
Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
| HRS |
FH41-40S-0.5SH(05) |
0.5mm |
40 pins |
1 pcs |
|
AUO G133XTN01.1 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
- |
Position |
Edge light type |
| Exchange |
- |
Lamp Shape |
- |
Lamp Life |
20K(Min.) (Hours) |
| Interface Features : |
Position |
- |
Physical Type |
Included in panel signal interface |
| Backlight Driver : |
With LED Driver |
| Driver Electrical : |
Voltage Supply |
5.0/12.0/21.0V (Min./Typ./Max.) |
Current Supply |
0.18A (Typ.) |
| Consumption |
2.1/2.3W (Typ./Max.) |
