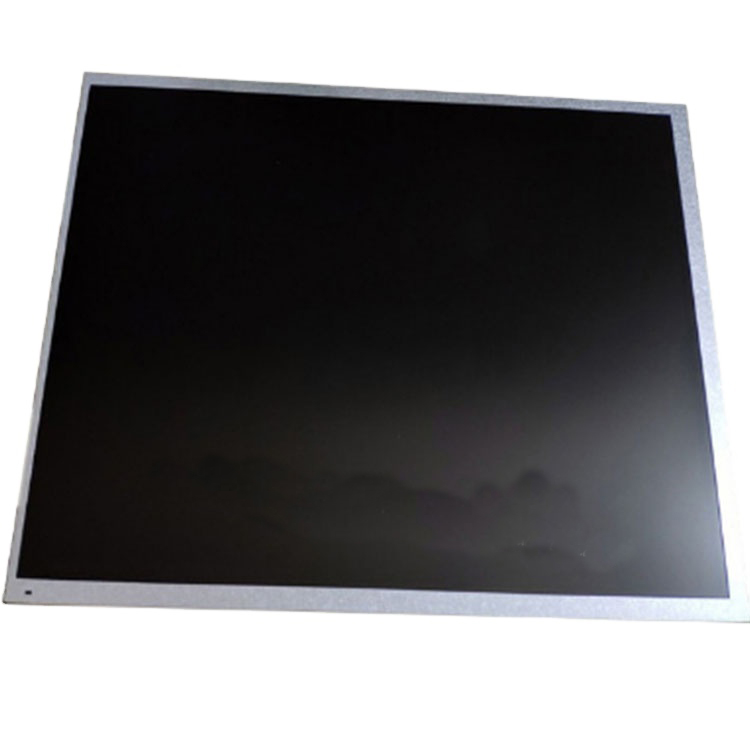

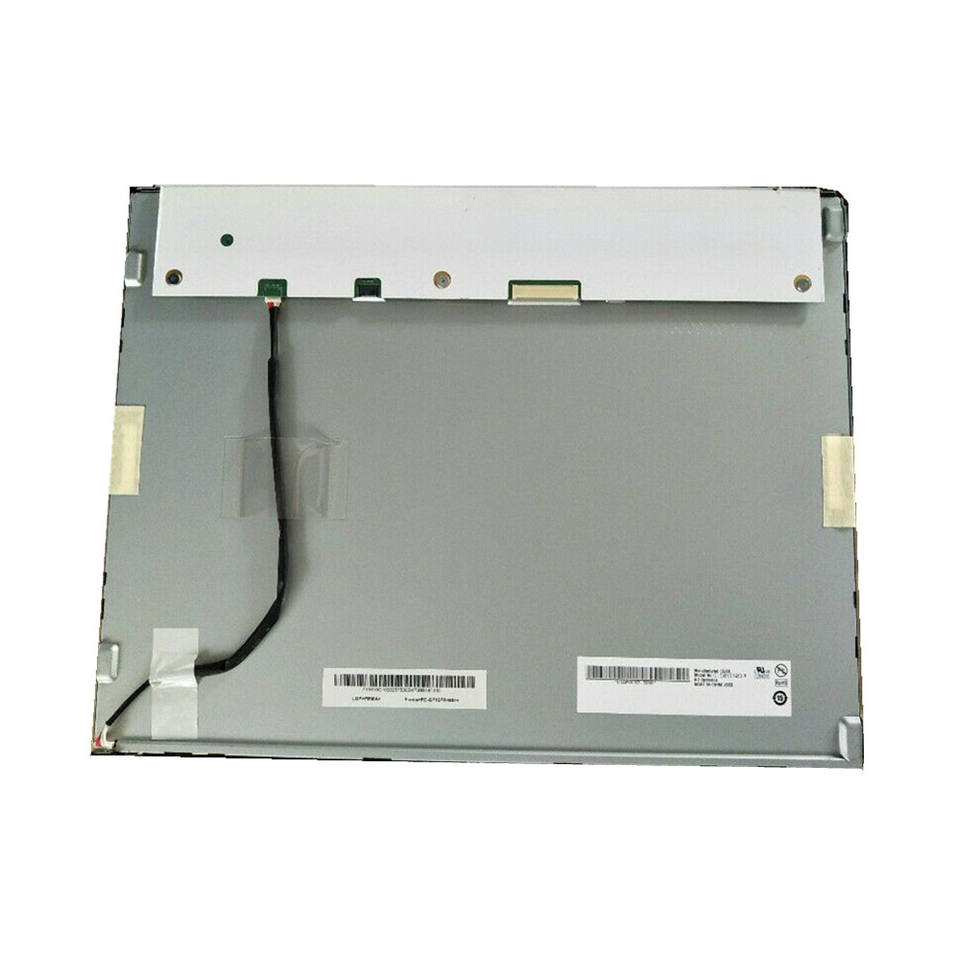

AUO G150XTN03.0 Application Details
| Basic Detail : |
Manufacturer |
AUO |
Model Name |
G150XTN03.0 |
| Panel Type |
a-Si TFT-LCD , LCM |
Model Alias |
|
| Panel Size |
15inch |
Designed For |
Idustrial |
| Maximum Ratings : |
OP Temperature |
0 ~ 65°C |
ST Temperature |
-20 ~ 65°C |
| RoHS |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
| Features : |
WLED Backlight，With LED Driver, 6/8 bit，Matte |
AUO G150XTN03.0 Optical Details
| Basic Information : |
Luminance |
350cd/m² (Typ.) |
Contrast Ratio |
700:1 (Typ.) (Transmissive) |
| Good View at |
- |
Response Speed |
5.7/2.3 (Typ.)(Tr/Td) ms |
| Viewing Angle |
85/85/80/80 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Support Color |
262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature |
6485K |
White Variation |
1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
60% |
sRGB |
84% coverage |
| Adobe RGB |
63% coverage |
DCI-P3 |
63% coverage |
| Rec.2020 |
45% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G150XTN03.0 Mechanical Details
| Pixel Features : |
Number of Pixel |
1024(RGB)×768 [XGA] |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch(W×H) |
0.099×0.297 mm |
Pixel Pitch(W×H) |
0.297×0.297 mm [85PPI] |
| Physical Size : |
Active Viewing(mm) |
304.128(W)×228.096(H) mm |
Outline Dim.(mm) |
326.5(W)×253.5(H) mm |
| Bezel Area(mm) |
313.55(W)×237.25(H) mm |
Depth(mm) |
12.0 (Max.) mm |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
4:3 (H:V) |
Orientation |
Landscape type |
| Mounting : |
Side mounting holes (4-M3) on left, right bezel |
| Other Spec : |
Weight
|
1.20Kgs (Max.) |
Treatment |
Antiglare, Hard coating (3H) |
AUO G150XTN03.0 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
No |
| Total Consumption : |
10.9W (Max.) |
AUO G150XTN03.0 Interface Detail
| Signal Electrical : |
Voltage Supply |
3.3V (Typ.) |
Current Supply |
1.0/1.5A (Typ./Max.) |
| Consumption |
3.3/5.0W (Typ./Max.) |
Signal Interface |
LVDS (1 ch,6/8-bit) |
| Interface Features : |
Position |
- |
Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
| STM |
MSB240420E |
1.25mm |
20 pins |
1 pcs |
LVDS-20P1C8B-020D |
AUO G150XTN03.0 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
- |
Position |
Edge light type (Bottom side) |
| Exchange |
No |
Lamp Shape |
- |
Lamp Life |
30K(Min.) (Hours) |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Interface Detail : |
Brand |
Model |
Amount |
Pin Pitch |
Pin Amount |
Pin Assignment |
| E&T |
3808K-F05N-02R |
1 pcs |
1.25 mm |
5 pins |
|
| Backlight Driver : |
With LED Driver |
| Driver Electrical : |
Voltage Supply |
12.0±1.2V |
Current Supply |
0.70A (Typ.) |
| Consumption |
8.4/10W (Typ./Max.) |
AUO G150XTN03.0 Packing Details
| Package Box : |
Quantity |
Weight |
Box Size |
| 15 pcs / box |
20.0Kgs |
375×430×360 mm (L×W×H) |
