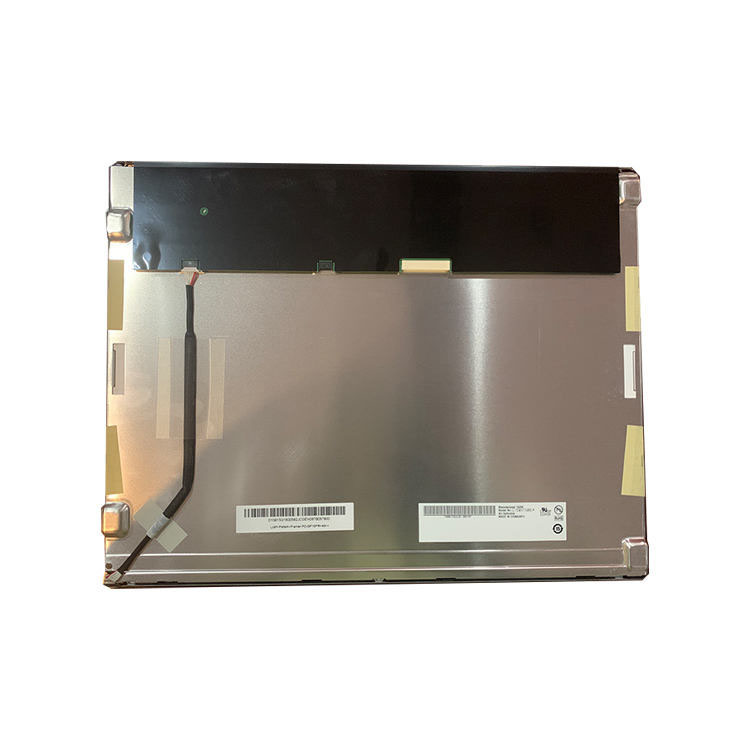

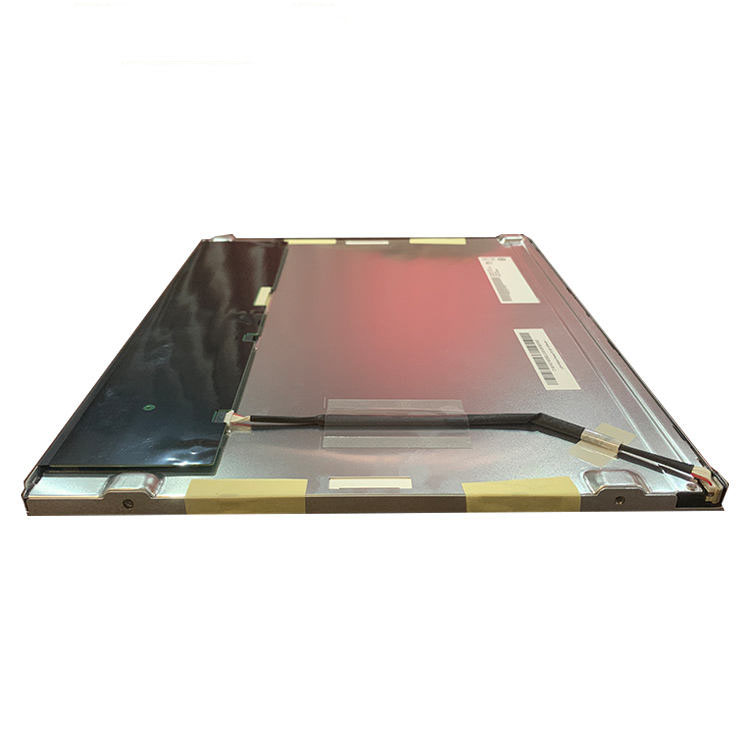

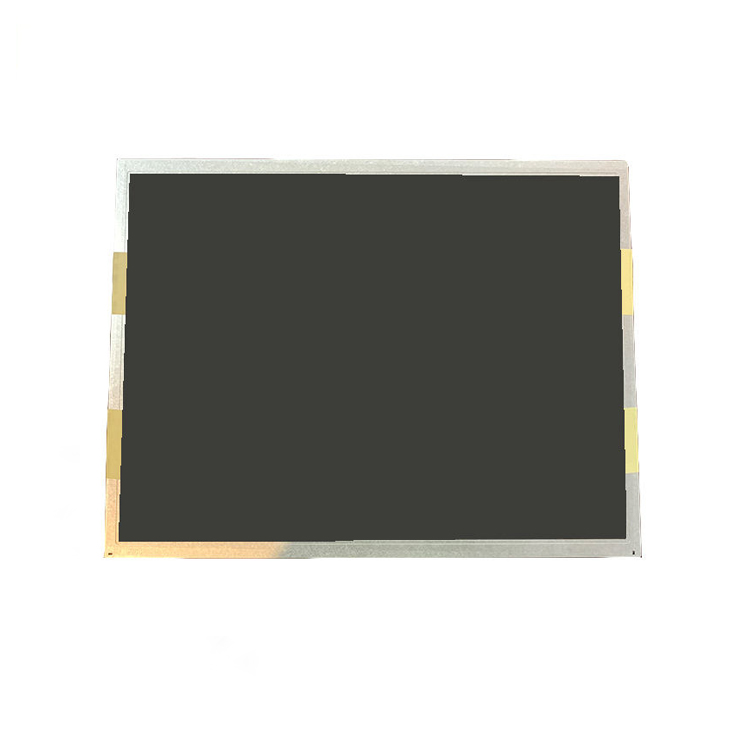

AUO G150XTN06.4 Application Details
| Basic Detail : |
Manufacturer |
AUO |
Model Name |
G150XTN06.4 |
| Panel Type |
a-Si TFT-LCD , LCM |
Model Alias |
|
| Panel Size |
15inch |
Designed For |
Idustrial |
| Maximum Ratings : |
OP Temperature |
-30 ~ 85°C |
ST Temperature |
-30 ~ 85°C |
| RoHS |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
| Features : |
Wide Temperature，Lamp Repaceable，WLED Backlight，Life>=70K hours,With LED Driver,Upside I/F, 180°Reverse，Matte,6/8 bit |
AUO G150XTN06.4 Optical Details
| Basic Information : |
Luminance |
400cd/m² (Typ.) |
Contrast Ratio |
800:1 (Typ.) (Transmissive) |
| Good View at |
- |
Response Speed |
5.7/2.3 (Typ.)(Tr/Td) |
| Viewing Angle |
80/80/70/80 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.311; Wy:0.322 |
Support Color |
262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature |
6658K |
White Variation |
1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
63% |
sRGB |
85% coverage |
| Adobe RGB |
65% coverage |
DCI-P3 |
66% coverage |
| Rec.2020 |
47% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G150XTN06.4 Mechanical Details
| Pixel Features : |
Number of Pixel |
1024(RGB)×768, XGA |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch(W×H) |
0.099×0.297 (H×V) |
Pixel Pitch(W×H) |
0.297×0.297 (H×V) [85PPI] |
| Physical Size : |
Active Viewing(mm) |
304.128(H) × 228.096(V) |
Outline Dim.(mm) |
326.5(H) × 253.5(V) |
| Bezel Area(mm) |
307.4(H) × 231.3(V) |
Depth(mm) |
12.0 (Max.) |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
4:3 (H:V) |
Orientation |
Landscape type |
| Mounting : |
Side mounting holes (4-M3) on left, right bezel |
| Other Spec : |
Weight |
1.00Kgs (Typ.) |
Treatment |
Antiglare, Hard coating (3H) |
AUO G150XTN06.4 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
Yes (180°) |
| Total Consumption : |
8.92W (Typ.) |
AUO G150XTN06.4 Interface Detail
| Signal Electrical : |
Voltage Supply |
3.3V (Typ.) |
Current Supply |
450/750mA (Typ./Max.) |
| Consumption |
1.49/2.48W (Typ./Max.) |
Signal Interface |
LVDS (1 ch, 6/8-bit) |
| Interface Features : |
Position |
Rear |
Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
| STM |
MSB240420E |
1.25 mm |
20 pins |
1 pcs |
|
AUO G150XTN06.4 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
- |
Position |
Edge light type (Bottom side) |
| Exchange |
Replaceable |
Lamp Shape |
- |
Lamp Life |
70K(Min.) (Hours) |
| Interface Features : |
Position |
- |
Physical Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
| E&T |
3808K-F05N-12R
|
1.25 mm |
5 pins |
1 pcs |
|
| Backlight Driver : |
With LED Driver |
| Driver Electrical : |
Voltage Supply |
12.0V |
Current Supply |
0.62/0.84A (Typ./Max.) |
| Consumption |
7.43/10.13W (Typ./Max.) |
AUO G150XTN06.4 Packing Details
| Package Box : |
Quantity |
Weight |
Box Size |
| 15pcs / box |
18.5 Kgs (Max.) |
434×380×353 mm (L×W×H) |
