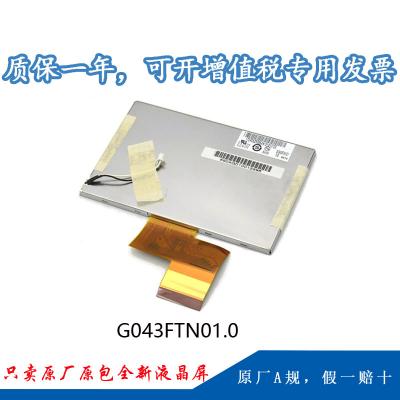

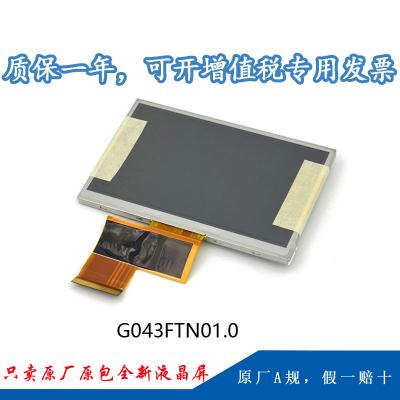

G043FTN01.0 Original AUO 4.3 Inch 480x272 WQVGA LCD 40 pins RGB Screen TFT LCD M

Your location:Home > Products > AUO LCD screen > 4.3 inch >
  • G043FTN01.0 Original AUO 4.3 Inch 480x272 WQVGA LCD 40 pins RGB Screen TFT LCD M
  • G043FTN01.0 Original AUO 4.3 Inch 480x272 WQVGA LCD 40 pins RGB Screen TFT LCD M
  • Model:G043FTN01.0
  • Brand:AUO
  • Size:4.3"
  • Resolution:480×272
  • Brightness:550 cd/m² (Typ.)
  • Perspective:80/80/55/65 (Typ.)
  • Interface:RGB
  • Operating temperature:-20 ~ 70 °C
  • Current production status:In Production
  • Technical Parameters
  • AUO G043FTN01.0 Application Details

    Basic Detail : Manufacturer AUO Model Name G043FTN01.0
    Panel Type a-Si TFT-LCD , LCM Another Name G043FTN01 V0
    Panel Size 4.3 inch Designed For Industrial
    Maximum Ratings : OP Temperature -20~ 70 °C ST Temperature -30 ~ 80 °C
    RoHS RoHS Vibration Level 1.5G (14.7 m/s²)
    Features : Hight Brightness ,WLED Backlight, Matte


    AUO G043FTN01.0 Optical Details

    Basic Information : Luminance 550 cd/m² (Typ.) Contrast Ratio 400:1 (Typ.) (Transmissive)
    Good View at 6 o'clock Response Speed 15/20 (Typ.)(Tr/Td) ms
    Viewing Angle 80/80/55/60 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
    Color Performance : Chromaticity Wx:0.305; Wy:0.330 Support Color 16.7M (8-bit)
    Color Temperature

    6914K White Variation 1.33/1.43 (Typ./Max.)(9 points)
    1931 Color Gamlt : NTSC Ratio 53% sRGB 74% coverage
    Adobe RGB 56% coverage DCI-P3 55% coverage
    Rec.2020 40% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)


    AUO G043FTN01.0 Mechanical Details

    Pixel Features : Number of Pixel 480(RGB)×272, WQVGA Arrangement RGB Vertical Stripe
    Dot Pitch(W×H) 0.066×0.198 mm Pixel Pitch(W×H) 0.198×0.198 mm  [128PPI]
    Physical Size : Active Viewing 95.04(W)×53.856(H) mm Overall Dim. 105.5(W)×67.2(H) mm
    Bezel Opening 100.8(W)×58.76(H) mm Overall Depth 2.9(Typ.) mm
    Aspect Ratio(W:H) 16:9 Shape Style
    Other Detail : Mass 44.0g (Typ.) Surface Antiglare


    AUO G043FTN01.0 Electronics Details

    Refresh Rate : 60Hz
    Reverse Scan : No
    Total Consumption : 0.39W (Typ.)
    Time Controller (T-CON) : Embedded T-CON


    AUO G043FTN01.0 Interface Details

    Signal Electrical : Input Current 18/25mA (Typ./Max.) Input Voltage 3.3V (Typ.)
    Consumption 59.4/82.5mW (Typ./Max.) Signal Interface Parallel RGB (1 ch, 8-bit)
    Logic Voltage : 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
    Interface Features : Position


    - Physical Type FPC
    Interface Detail : Brand Model Pin Pitch Pins Amount Pin Assignment
        0.5 mm 40 pins 1 pcs


    AUO G043FTN01.0 Lightting Details

    Lamp Features : Lamp Type WLED Amount - Position Edge light type
    Exchange - Lamp Shape - Lamp Life 20K(Min.) (Hours)
    Lamp Electrical : Input Voltage 25.65/27.9V (Typ./Max.) Input Current 11mA (Typ.)
    Consumption 0.31W (Max.)

    Interface Features : Position - Physical Type Included in panel signal interface
    Backlight Driver : No


    AUO G043FTN01.0 Packing Details

    Package Box : Amount Size (L×W×H) Weight
    50 pcs / box 11.4 Kgs -
