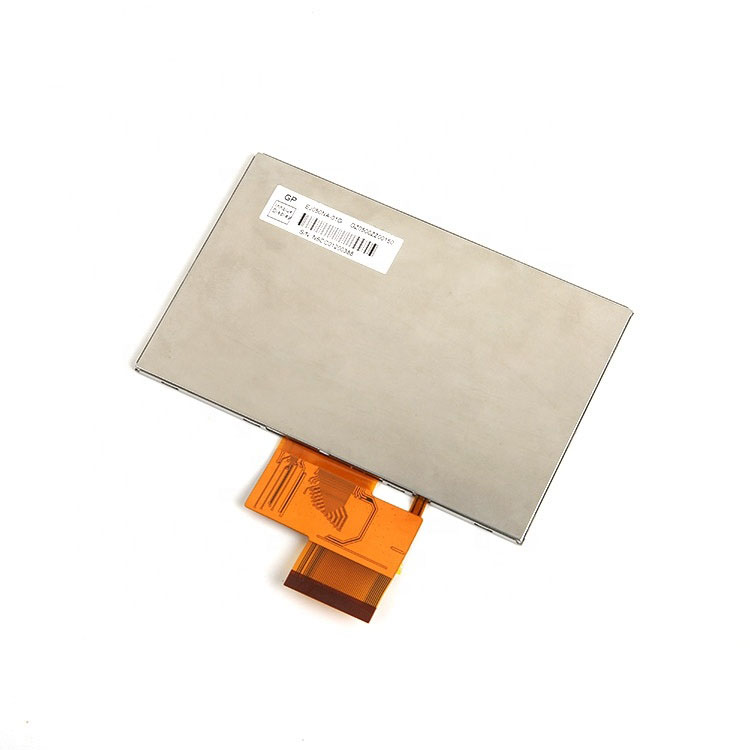

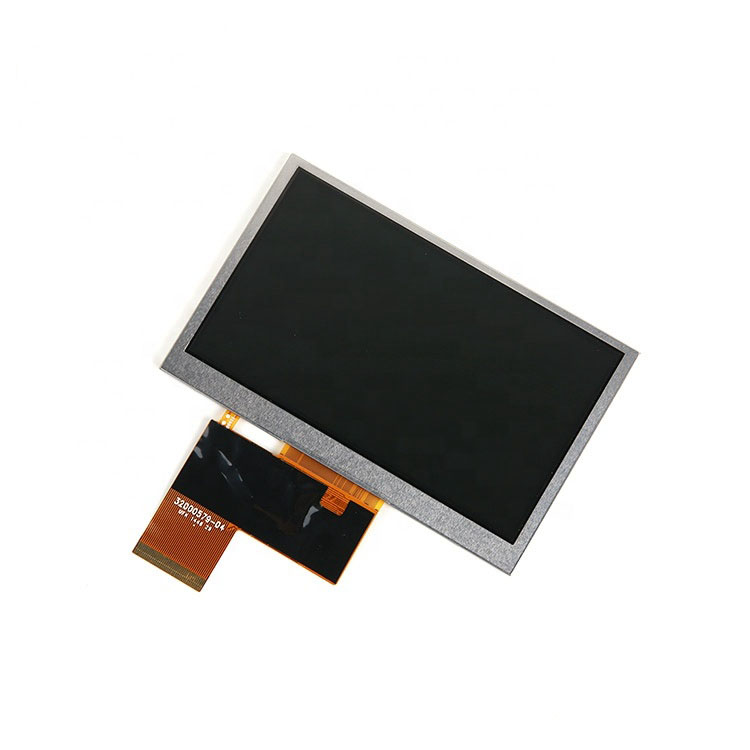

Innolux EJ050NA-01G Application Details
| Basic Detail : |
Panel Brand
|
INNOLUX/CHI MEI |
Model Name |
EJ050NA-01G |
| Panel Type |
a-Si TFT-LCD , LCM |
Another Name |
|
| Panel Size |
5.0” |
Designed For |
Portable Navigation，VOIP Phone，MID UMPC,MP3 PMP |
| Maximum Ratings : |
OP Temperature |
-20 ~ 70 °C |
ST Temperature |
-30 ~ 80 °C |
| RoHS |
RoHS |
Vibration Level |
- |
| Features : |
WLED Backlight，U/D.L/R Reverse |
Innolux EJ050NA-01G Optical Details
| Basic Information : |
Luminance |
350 cd/m² (Typ.) |
Contrast Ratio |
500 : 1 (Typ.) (Transmissive) |
| Good View at |
6 o'clock |
Response Speed |
10/15 (Typ.)(Tr/Td) (ms) |
| Viewing Angle |
70/70/50/70 (Typ.)(CR≥10) |
Operating Mode |
TN, Normally White, Transmissive |
| Color Performance : |
Chromaticity |
X:0.310; Y:0.330 |
Display Colors |
16.7M (8-bit) |
| Color Temperature |
6638K |
White Variation |
1.33/1.43 (Typ./Max.)(9 points) |
Innolux EJ050NA-01G Mechanical Details
| Pixel Features : |
Number of Pixel |
800(RGB)×480 [WVGA] |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch (W×H) |
0.045×0.135 mm |
Pixel Pitch (W×H) |
0.135×0.135 mm [188PPI] |
| Physical Size : |
Active Viewing(mm) |
108(W)×64.8(H) mm |
Bezel Area (mm) |
110.6(W)×67.6(H) mm |
| Outline Dim.(mm) |
120.7(W)×76.3(H) mm |
Depth(mm) |
3.10±0.2 mm |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
15:9 (H:V) |
Orientation |
Landscape type |
| Other Spec : |
Weight |
58.5g (Typ.) |
Surface |
Clear |
Innolux EJ050NA-01G Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
Yes (U/D, L/R) |
| Power Consumption : |
1.504W (Typ.) |
| Time Controller (T-CON) : |
Embedded T-CON |
Innolux EJ050NA-01G Interface Details
| Signal Electrical : |
Signal Interface |
Parallel RGB (1 ch, 8-bit) |
Logic Voltage |
0≤VIL≤0.3DVDD; 0.7VDD≤VIH≤DVDD |
| Signal Electrical : |
Voltage Input |
3.3/10.4/16.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
Current Input |
10.0/50.0/1.0/1.0mA (Typ.)(DIDD/AIDD/IGH/IGL) |
| Consumption |
0.223W |
| Interface Features : |
Position |
- |
Physical Type |
FPC |
| Interface Detail : |
Brand |
Model |
Pin Pitch |
Pins |
Amount |
Pin Assignment |
| |
|
0.5mm |
50 pins |
1 pcs |
DRGB-50P1C8B-115A |
Innolux EJ050NA-01G Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
7S2P |
Position |
Edge light type |
| Exchange |
- |
Lamp Shape |
Array
|
Lamp Life |
15K(Min.) (Hours) |
| Lamp Electrical : |
Voltage Supply |
21.7±2.1V |
Current Supply |
40±4mA |
| Consumption |
868mW (Typ.) |
| Interface Features : |
Position |
- |
Physical Type |
Included in panel signal interface |
| Backlight Driver : |
No |
Innolux EJ050NA-01G Carton Details
| Package Box : |
Amount |
Weight |
Size (L×W×H) |
| 72pcs / box |
7.67±0.38Kgs |
375×280×210 mm |
