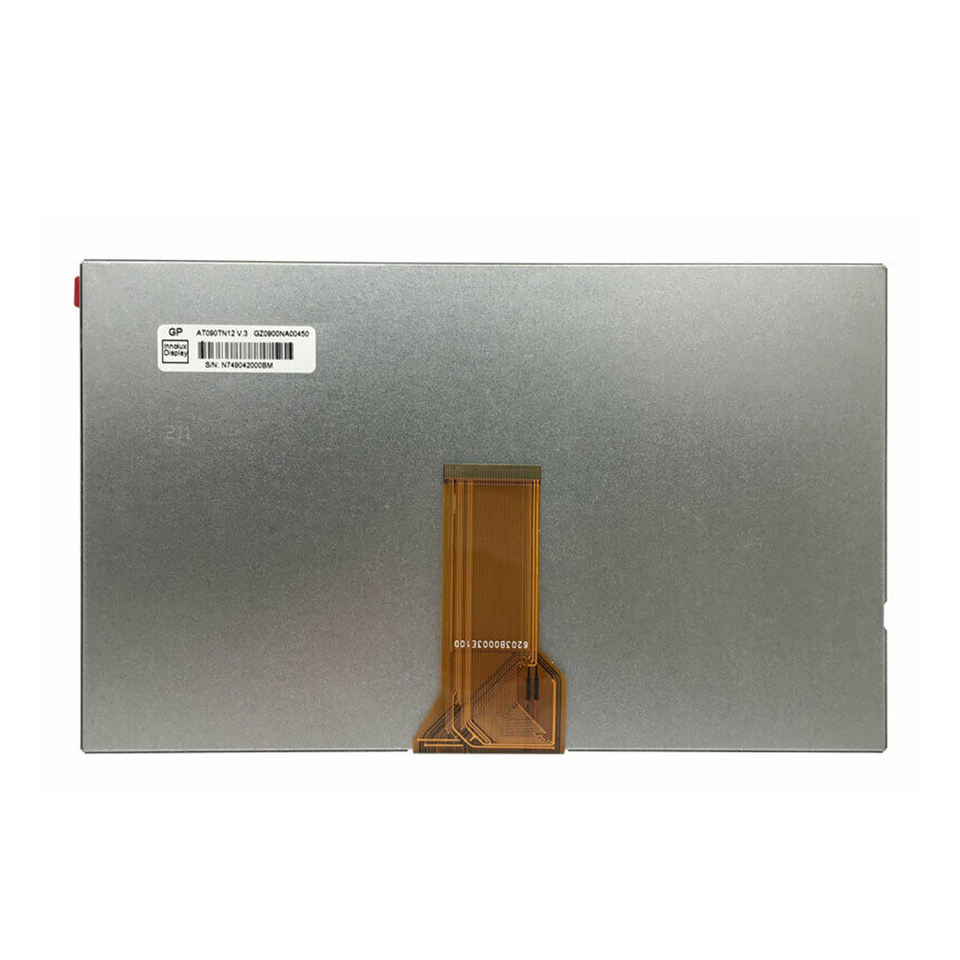

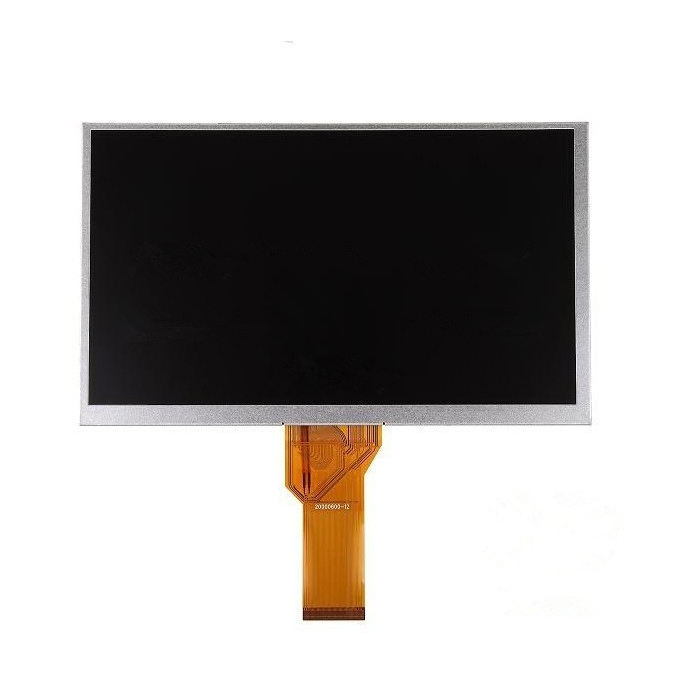

  • 9 inch 800*480 Resolution 250 nits Color TFT Lcd Module Innolux AT090TN12 V.3
  • 9 inch 800*480 Resolution 250 nits Color TFT Lcd Module Innolux AT090TN12 V.3
  • Model:AT090TN12 V.3
  • Brand:Innolux
  • Size:9.0inch
  • Resolution:800×480
  • Brightness:250cd/m²
  • Perspective:70/70/50/70
  • Interface:TTL
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Get a Quote
  • Technical Parameters
  • Chimei Innolux AT090TN12 V.3 Application Details
    Basic Detail : Panel Brand INNOLUX/CHI MEI Model Name AT090TN12 V.3
    Panel Type a-Si TFT-LCD , LCM Another Name
    Panel Size 9.0” Designed For Digital Photo Frame,Portable DVD Player
    Maximum Ratings : OP Temperature -20 ~ 70 °C ST Temperature -30 ~ 80 °C
    RoHS RoHS Vibration Level -
    Features : WLED Backlight,U/D.L/R Reverse,6/8bit,Matte

    Chimei Innolux AT090TN12 V.3 Optical Details
    Basic Information : Luminance 250 cd/m² (Typ.) Contrast Ratio 500 : 1 (Typ.) (Transmissive)
    Good View at 6 o'clock Response Speed 10/15 (Typ.)(Tr/Td)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
    Color Performance : Chromaticity X:0.310; Y:0.330 Display Colors 262K/16.2M (6-bit / 6-bit + Dithering)

    Color Temperature
    6638K White Variation 1.33/1.43 (Typ./Max.)(9 points)

    Chimei Innolux AT090TN12 V.3 Mechanical Details
    Pixel Features : Number of Pixel 800(RGB)×480, WVGA Arrangement RGB Vertical Stripe
    Dot Pitch (W×H) 0.0825×0.2327 mm Pixel Pitch (W×H) 0.2475×0.2327 mm  [104PPI]
    Physical Size : Active Viewing(mm) 198(W)×111.696(H) mm Bezel Area (mm) 201.0(W)×114.7(H) mm
    Outline Dim.(mm) 211.1(W)×126.5(H) mm Depth(mm) 5.9±0.3 mm
    Outline Features : Form Style Flat Rectangle Outline Shape
    Aspect Ratio 16:9 (W:H) Orientation Landscape type
    Other Spec : Weight 253g (Typ.) Surface Antiglare

    Chimei Innolux  AT090TN12 V.3 Electronics Details
    Refresh Rate : 55Hz
    Reverse Scan : Yes (U/D, L/R)
    Power Consumption : 2.41W
    Time Controller (T-CON) : Embedded T-CON

    Chimei Innolux  AT090TN12 V.3  Interface Details
    Signal Electrical : Signal Interface  TTL (1 ch, 6/8-bit) Logic Voltage 0≤VIL≤0.3DVDD; 0.7DVDD≤VIH≤DVDD
    Signal Electrical : Voltage Input 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) Current Input 5.5/32.0/0.3/-0.3mA (Typ.)(IDVDD/IAVDD/IGH/IGL)
    Consumption 360mW (Typ.)
    Interface Features : Position - Physical Type FPC
    Interface Detail : Brand Model Pin Pitch Pins Amount Pin Assignment


    0.5mm 50pins 1 pcs DRGB-50P1C8B-115A

    Chimei Innolux  AT090TN12 V.3 Backlight Details
    Lamp Features : Lamp Type WLED Quantity 3S11P Position Edge light type
    Exchange
    -
    Lamp Shape Array Lamp Life 20K(Min.) (Hours)
    Lamp Electrical : Voltage Supply 9.9±0.6V Current Supply 220±22mA
    Consumption 2.05W (Typ.)
    Interface Features : Position - Physical Type
     Included in panel signal interface
    Backlight Driver : No

    Chimei Innolux AT090TN12 V.3 Carton Details
    Package Box : Amount Weight Size (L×W×H)
    30pcs / box 10.5±0.5 Kgs 530×355×255 mm
