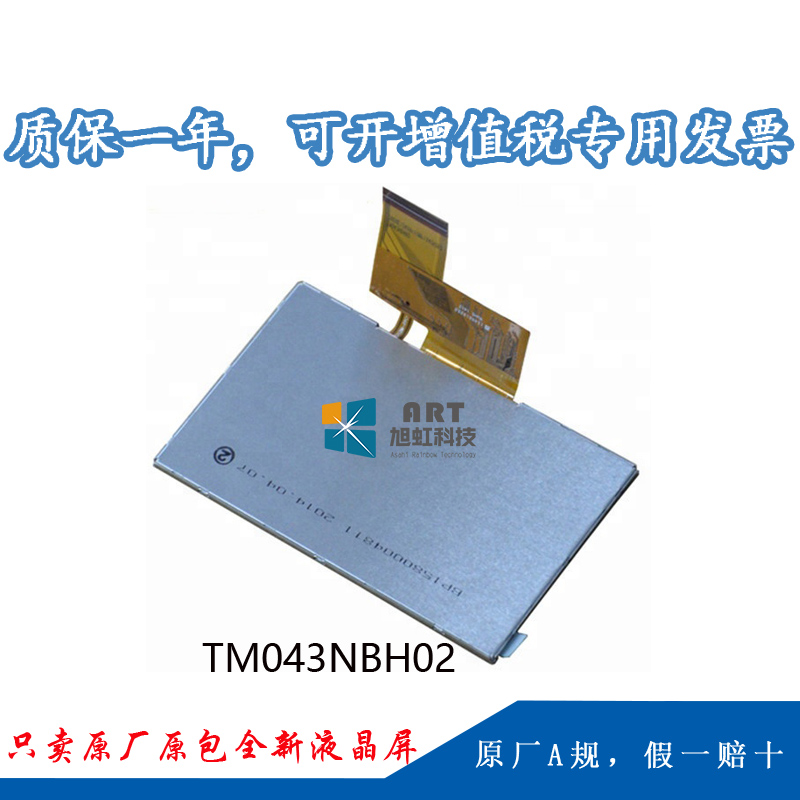

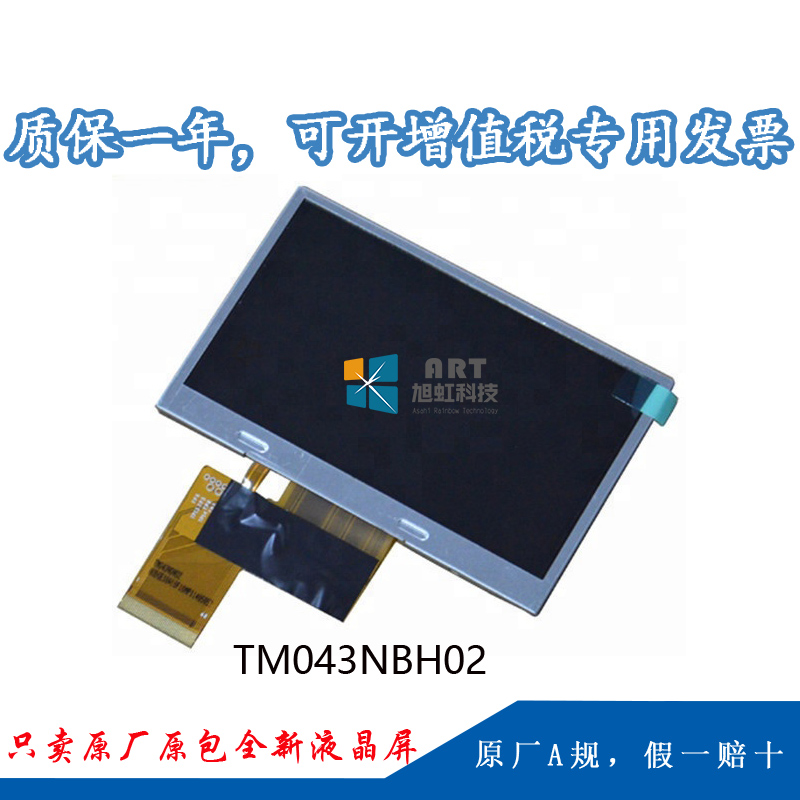

  • Tianma 4.3 inch 480x272 TFT LCD Module Displays TM043NBH02 with touch screen
  • Tianma 4.3 inch 480x272 TFT LCD Module Displays TM043NBH02 with touch screen
  • Model:TM043NBH02
  • Brand:TIANMA
  • Size:4.3inch
  • Resolution:480×272
  • Brightness:280cd/m²
  • Perspective:70/70/70/50
  • Interface:RGB
  • Operating Temp.:-20 ~ 60 °C
  • Production State:Discontinued
  • Get a Quote
  • Technical Parameters

Tianma 4.3 inch 480x272 TFT LCD Module Displays TM043NBH02 with touch screen

  • TIANMA TM043NBH02 Application Details
    Basic Detail : Panel Brand TIANMA Model Name TM043NBH02
    Panel Type a-Si TFT-LCD , LCM Another Name
    Panel Size 4.3” Designed For Industrial,Portable Navigation,MP3 PMP
    Maximum Ratings : OP Temperature -20 ~ 60 °C ST Temperature -30 ~ 70 °C
    RoHS RoHS Vibration Level
    Features : With Touch, WLED Backlight

    TIANMA TM043NBH02 Optical Details
    Basic Information : Luminance 280 cd/m² (Typ.) Contrast Ratio 450:1 (Typ.) (Transmissive)
    Good View at 6 o'clock Response Speed 20 (Typ.)(Tr+Td) ms
    Viewing Angle 70/70/70/50 (Typ.)(CR≥10) Operating Mode TN, Normally White, Transmissive
    Color Performance : Chromaticity X:0.315; Y:0.328 Display Colors 16.7M (6-bit + Hi-FRC)

    Color Temperature
    6386K White Variation 1.33 (Max.)(9 points)
    1931 Color Gamlt : NTSC Ratio 48% sRGB 67% coverage
    Adobe RGB 50% coverage DCI-P3 50% coverage
    Rec.2020 36% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    TIANMA TM043NBH02 Mechanical Details
    Pixel Features : Number of Pixel 480(RGB)×272, WQVGA Arrangement RGB Vertical Stripe
    Dot Pitch (W×H) 0.066×0.198 (H×V) Pixel Pitch (W×H) 0.198×0.198 (H×V)  [128PPI]
    Physical Size : Active Viewing(mm) 95.04(H) × 53.856(V) Bezel Area (mm) 98.3(H) × 57.1(V)
    Outline Dim.(mm) 105.5(H) × 67.2(V) Depth(mm) 4.1±0.3
    Outline Features : Form Style Flat Rectangle Outline Shape
    Aspect Ratio 16:9 (H:V) Orientation Portrait type
    Touch Panel : Touch Points 1 point Touch Panel 4-wire Resistive Touch
    TP Controller Without touch controller Touch Signal -
    Other Spec : Weight 58.4g Surface Hard coating(3H)


    TIANMA TM043NBH02 Electronics Details
    Refresh Rate : 60Hz
    Reverse Scan : No
    Driver IC : COG Built-in HX8257A
    Time Controller (T-CON): Embedded T-CON

    TIANMA TM043NBH02 Interface Details
    Signal Systerm : Parallel RGB (1 ch, 8-bit) Logic Voltage 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD
    Signal Electrical : Voltage Input
    1.8/2.8V (Typ.)(IOVCC/VCI)
    Current Input -
    Consumption -
    Interface Features : Position - Physical Type FPC
    Interface Detail : Brand Model Pin Pitch Pins Amount Pin Assignment
        0.5mm 40pins 1 pcs

    TIANMA TM043NBH02 Backlight Details
    Lamp Features : Lamp Type WLED Quantity 5S2P Position Edge light type
    Exchange
    -
    Lamp Shape Array Lamp Life 20K(Typ.) (Hours)
    Lamp Electrical : Input Voltage 16/18V (Typ./Max.) Input Current 40/50mA (Typ./Max.)
    Consumption 640mW (Typ.)
    Interface Features : Position - Physical Type I
    ncluded in panel signal interface
    Backlight Driver : No

    TIANMA TM043NBH02 Carton Details
    Package Box : Amount Weight Size (L×W×H)
    112 pcs / box 9.77±0.49 Kgs 530×350×250 mm
