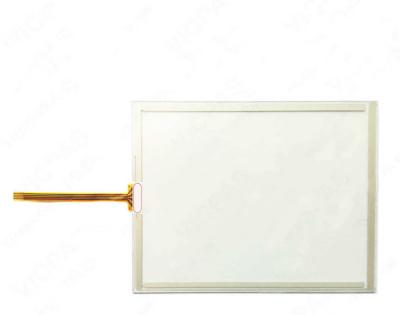

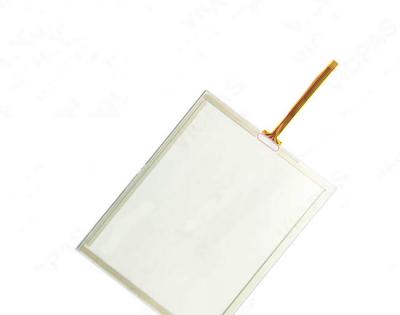

  • Amt9525 6 4" 4-wire resistive touch screen,Suitable 6.4-inch Industrial LCD
  • Amt9525 6 4" 4-wire resistive touch screen,Suitable 6.4-inch Industrial LCD
  • Model:amt9525
  • Brand:AMT
  • Aximum:4wire resistive touch screen
  • Size:6.4 "
  • Maximum resolution supported:146.3 * 114.55 mm
  • Interface signal:USB
  • LCDinterface:130 * 97.5 mm
  • Operating Temp.:- 10 ~ 60 ° C
  • Production State:In Production
  • Get a Quote
  • Technical Parameters
  • Amt9525 6.4 "4-wire resistive touch screen

    6.4 Inch AMT 4-wire Resistive Touch Panel 9525
    Basic Info:
    Model No.: 6.4 inch RTP 9525
    Screen Size: 5-15 Inches
    Aspect Ratio: 4:3
    Application: Industrial Control System
    Screen Type: Resistive
    Resistive Touch Screen Type: Analog
    Customized: Non-Customized
    Tail Design: FPC/ZIF
    Thickness Overall(mm): 1.4
    Size: 6.4 Inch
    Additional Info:
    Packaging: TBD
     Productivity: 100000
    Brand: AMT
    Transportation: Ocean,Land,Air
    Place of Origin: TAIWAN
    Supply Ability: 100000
    Certificate: CE,ROHS,ISO9001
    HS Code: 84716090
    Port: SHENZHEN,HK
    Mechanical Dimensions and Construction
    1.1 General: Analog Resistive touch screen is laminated by ITO film to ITO glass.
    1.2 Mechanical Performance:
    1.2.1 Surface hardness: 3H
    1.2.2 ITO Glass Thickness: 1.1mm
    1.2.3 Tail Type: FPC
    1.2.4 Surface Finish Type: Anti-glare
    2. Typical Optical Characteristics
    2.1 Visible Light Transmission: 82 ± 3%
    2.2 Haze: 9.5 ± 2.5%
    3. Electrical Specifications
    3.1 Operating Voltage: 5.5V or less
    3.2 Contact current: 20mA (maximum)
    3.3 Circuit close resistance: X : 400~1000Ω
    Y : 200~650Ω
    3.4 Circuit open resistance: > 10MΩ at 25VDC
    3.5 Contact bounce:<10ms
    3.6 Linear Test :<1.5 %
    3.7 Capacitance:100nF(maximum)
    3.8 Electrostatic Discharge Protection : (per EN 61000-4-2 )
    The touch screen withstands of 15KV air discharge and 8KV contact discharge.
    4. Linearity
    4.1 Linear Test Specification
    Direction X:<1.5 %
    Direction Y:<1.5 %


    Notes

    Suitable for 6.4-inch Industrial LCD screen, such as AUO6.5-inch g065vn01, etc
