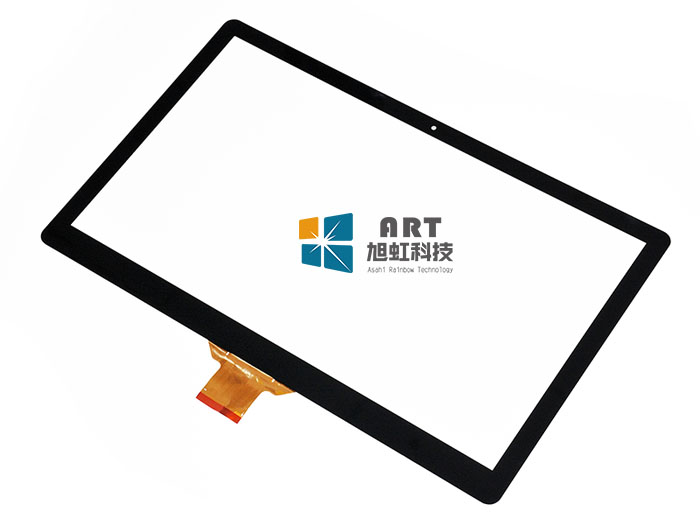

| Model No. | XH12004A-GDA-A2 |
| Size | 12.1inch |
| Product proportion | 4:3 |
| Touch type | capacitive touch screen |
| Touch point | 10 |
| Outline Dimensional | 290.00*220.50mm |
| View Area | 246.00*184.50mm |
| Panel structure | G+G |
| Temperature range | -20℃～+70℃ (30min) |
| Humidity range | -30℃～+80℃ |
| Working voltage | DC5.0V |
| Linear equation | ≤2% |
| Optical Characteristics | ≥87% |
| Surface Hardness | ≥ 6H |
| interface | USB/IIC |
| IC | ILITEK 2510 |
| FPC | COB+PCB |
| Common outgoing lines of FPC with side width | Wide side, left center |
