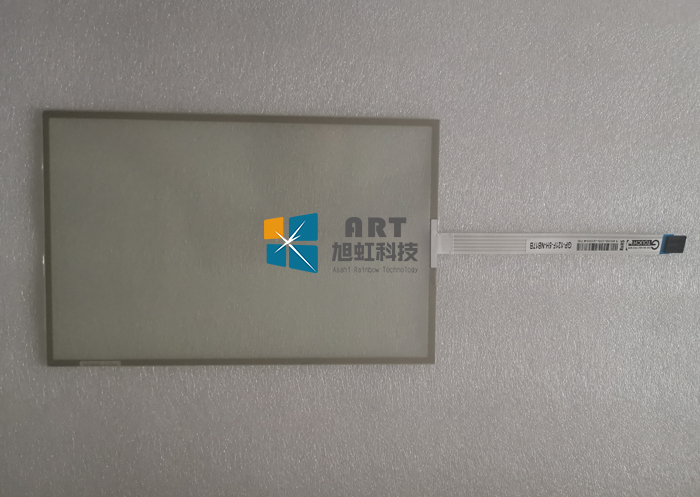

Gp-065f-5h-na02a 6.5 "5-wire resistive touch screen |
|
Brand |
GTOUCH |
Model |
GP-065F-5H-NA02A |
Diagonal Size |
6.5” |
Outline Dim. |
153*118mm |
Display size |
133.08*99.96 mm |
Visual size |
137.08*103.96mm |
Overall Depth |
2.2mm |
OP Temperature |
-20°C ~ +70°C |
ST Temperature |
-20°C ~ +80°C |
OP humidity |
20%RH ~85%RH |
ST humidity |
10%RH ~ 90%RH |
Click life |
>10000000times(Single point) |
Transmittance |
>80% |
Haze degree |
<13% |
Working voltage |
5V-12V |
Environmental testing |
Storage temperature: - forty ° C ~ + eighty ° C operating temperature: - twenty ° C ~ + seventy ° C
|
Transmission speed |
19200baud |
Impedance characteristics |
300-600Ω |
Linear error |
<1.5% |
New testing method |
High temperature test: test temperature 80 ℃, store 288 hours, take out and store 24 hours at room temperature; Low temperature test: test temperature - Store at 40 ℃ for 288 hours, take out and store at room temperature for 24 hours ; High temperature and humidity test: test temperature 60 ℃, humidity 90rh, storage 288 hours, take out at room temperature for 24 hours; Cold and hot shock test: the test temperature was - 40 ℃ and 80 ℃, and the storage time was 30 minutes each, 10 cycles, and then stored at room temperature for 24 hours; Durability test: r8mm / 250g force / 2 times per second single touch touch panel, more than 10 million times; Writing test: R 0.8 mm / 250 g force, draw back 100000 times in a straight line of one inch |
Notes |
Gp-065f-5h-na02a 5-wire resistive touch screen is suitable for 6.5-inch Industrial LCD screen, such as Youda 6.5-inch g065vn01 V2, etc |
Download link of gp-065f-5h-na02a specification: https://pan.baidu.com/s/1IW-e0zZRJWIcDYyldnD25g Extraction code: xnaf after copying this content, open Baidu network disk mobile app, operation is more convenient
