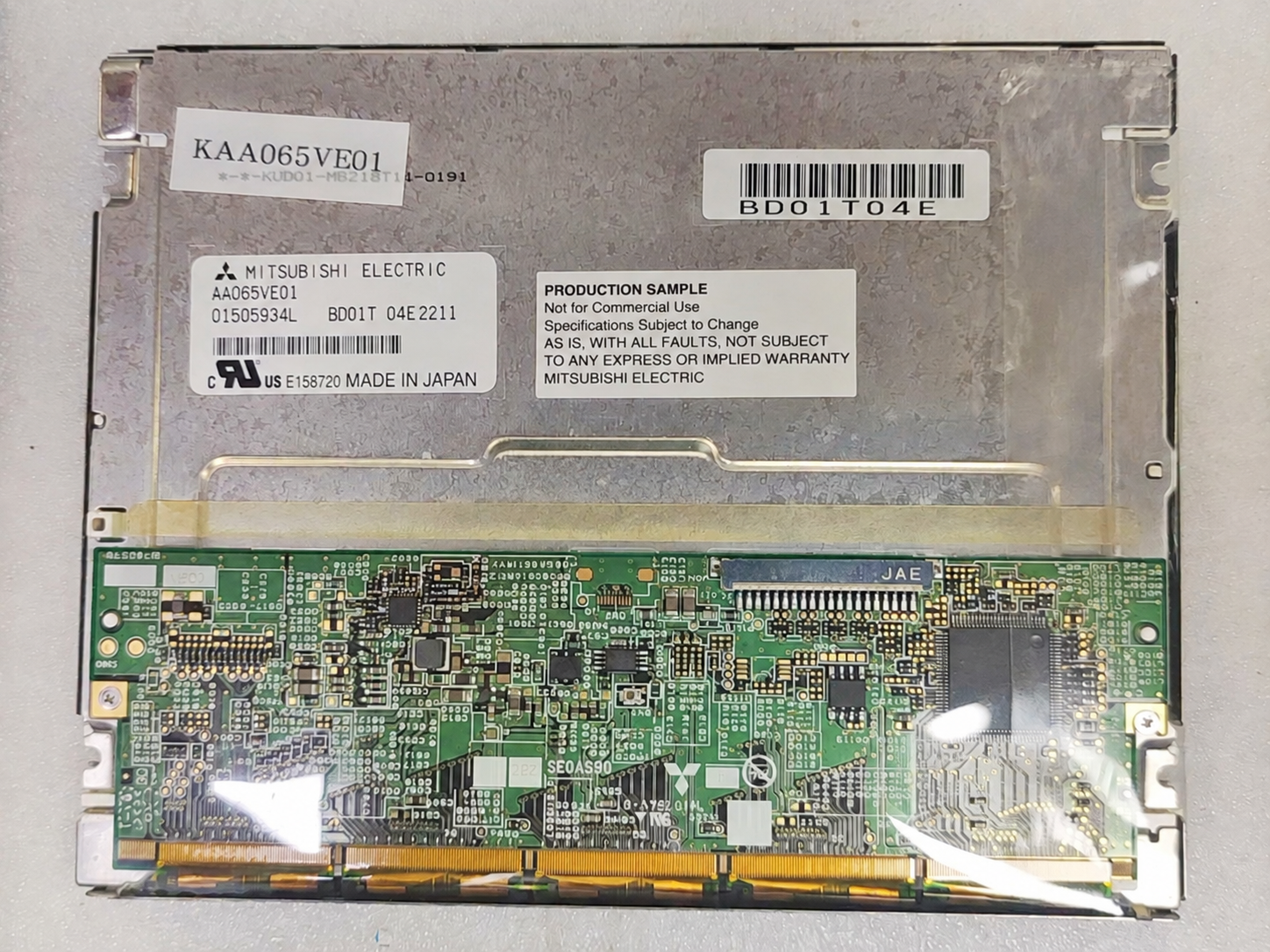

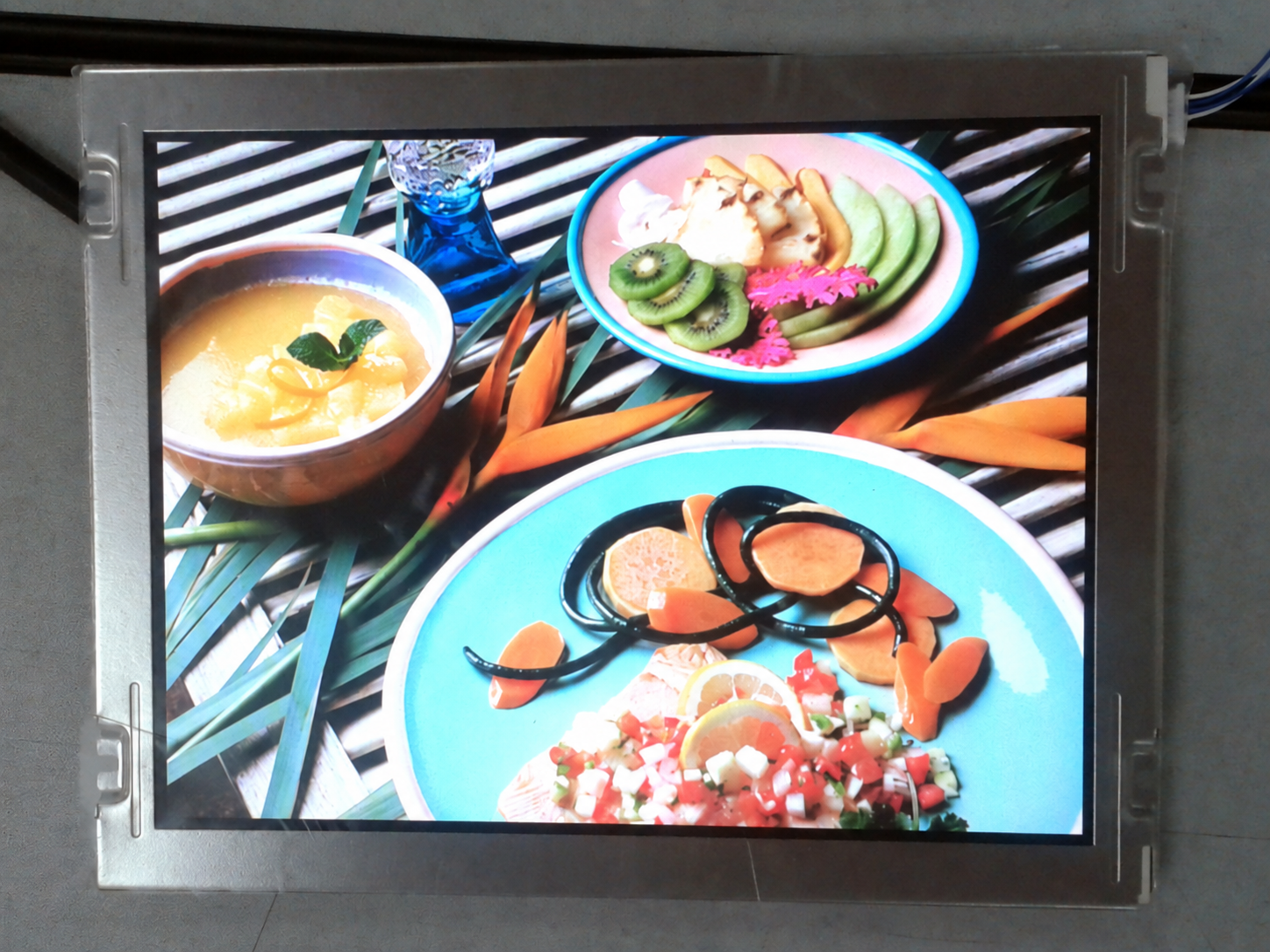

User-supplied reference photos, not a proposed replacement. The unedited rear label identifies AA065VE01 and carries a "PRODUCTION SAMPLE / Not for Commercial Use" notice with specifications subject to change. These photos do not establish production-unit specifications or saleable stock. Both displayed images were AI-retouched to remove watermarks; reconstructed text, barcodes, circuitry and connector details must not be used for technical verification. The front display image is illustrative, not evidence of optical performance. Confirm the full designation, revision and requirements using the unedited originals, physical label and approved documentation.
Mitsubishi AA065VE01 Replacement Selection Support
Need to replace an AA065VE01 panel in existing equipment? Send us the original panel label, drawing and interface requirements so we can review potential alternatives.
No drop-in replacement is confirmed on this page. Matching screen size alone does not establish compatibility.
Request AA065VE01 Replacement ReviewSample Photo Notice
The supplied rear photo is marked PRODUCTION SAMPLE — Not for Commercial Use. Its label also states that specifications are subject to change. It is provided only as a model reference, not as an offer of this sample for sale or confirmation of final production specifications. Confirm the applicable production revision using approved documentation.
Legacy Product and Supply Status
Mitsubishi Electric announced in June 2020 that its subsidiary Melco Display Technology planned to end TFT-LCD module production, aiming for June 2022. This page is retained to support replacement selection for the legacy AA065VE01 model, not to represent ongoing original production.
Any remaining original stock, condition, traceability and availability must be checked separately. No stock or delivery commitment is made here.
Source: Mitsubishi Electric announcement, June 15, 2020 (PDF).
Original Listing Reference
The following values come from the previous website listing. They have not been verified against an approved AA065VE01 datasheet for this replacement review and are not specifications for a substitute panel.
| Original model | Mitsubishi AA065VE01 |
|---|---|
| Listed size | 6.5 inches |
| Listed resolution | 640 × 480 (VGA) |
| Listed brightness | 700 cd/m² (Typ.) |
| Listed interface | LVDS — connector, pin assignment, signal voltage levels, data mapping and timing require verification. |
What Must Be Checked Before Replacement?
| Mechanical fit | Outline dimensions, thickness, mounting points, active area, viewing area and cable clearance. |
|---|---|
| Signal compatibility | Resolution, LVDS signal voltage levels, data mapping, connector, pin assignment and supported timing. |
| Power and backlight | Panel supply voltage, power sequencing, backlight type, voltage/current, driver requirements and dimming control. |
| Optical and environmental | Brightness, viewing direction, contrast, operating temperature and equipment-specific reliability requirements. |
| System validation | Controller settings, cable or adapter changes, sample testing and approval in the actual equipment. |
A candidate may require cable, controller, backlight-driver or mechanical changes. Do not connect an unverified replacement panel.
Datasheet, Drawing and Replacement Review
Request available reference documentation for AA065VE01 and a technical review of your replacement requirements. Documentation availability and the applicable revision will be confirmed in response.
Request AA065VE01 Documents & Review- A clear photo of the full panel label and suffix.
- The original datasheet or mechanical drawing, if available.
- Equipment model, controller information and connector photos.
- Application, required quantity and target delivery date.
If the inquiry form does not accept attachments, mention that you have photos or drawings and request a suitable way to send them.
Replacement Review Process
- Identify the original panel and equipment requirements.
- Compare candidate documentation and record all differences.
- Confirm any necessary modifications, availability and commercial terms.
- Test a sample in the equipment before approving a production replacement.
Common Questions
Can any 6.5-inch VGA panel replace AA065VE01?
No. Mechanical, electrical, signal and backlight requirements must also match or be addressed through approved modifications.
Is a direct replacement already approved?
No specific substitute has been validated on this page. Candidate selection requires documentation review and testing in your equipment.
Does this page mean original Mitsubishi stock is available?
No. Remaining original stock must be checked separately; this page provides a replacement inquiry route.
