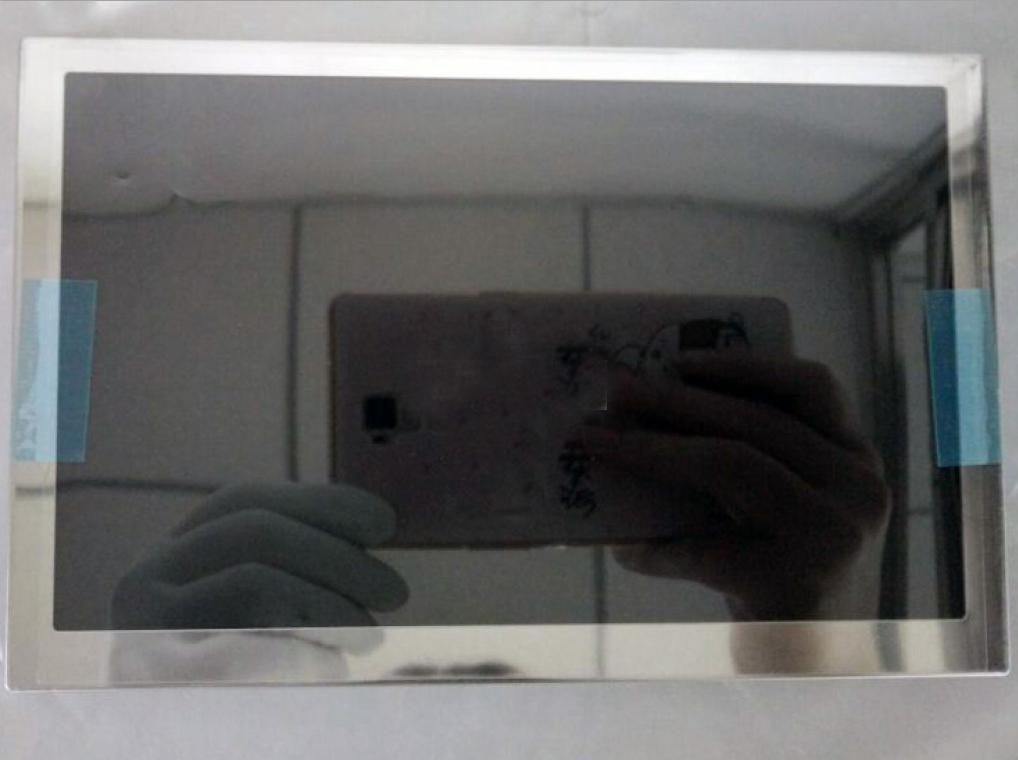

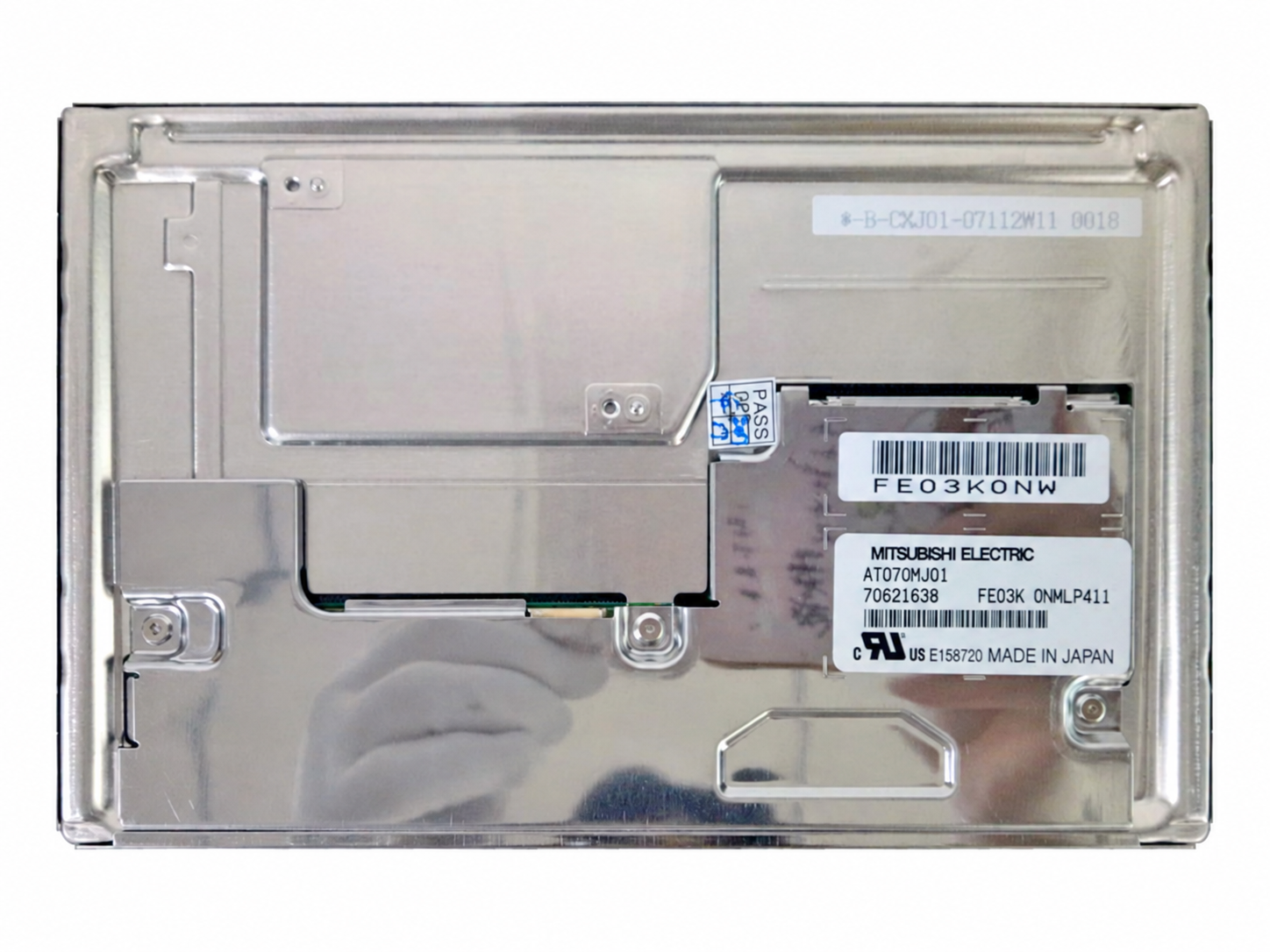

Original-model reference photos, not a proposed replacement. Use approved documentation for technical verification.
Mitsubishi AT070MJ01 Replacement Selection Support
Need to replace an AT070MJ01 panel in existing equipment? Send us the original panel label, drawing and interface requirements so we can review potential alternatives.
No drop-in replacement is confirmed on this page. Matching screen size alone does not establish compatibility.
Request AT070MJ01 Replacement ReviewLegacy Product and Supply Status
Mitsubishi Electric announced in June 2020 that its subsidiary Melco Display Technology planned to end TFT-LCD module production, aiming for June 2022. This page is retained to support replacement selection for the legacy AT070MJ01 model, not to represent ongoing original production.
Any remaining original stock, condition, traceability and availability must be checked separately. No stock or delivery commitment is made here.
Source: Mitsubishi Electric announcement, June 15, 2020 (PDF).
Original Model Reference
Our previous listing has inconsistent identifiers: its title names AT070MJ01, while its detailed table names AA070MJ01. These identifiers are not treated as interchangeable, and the table parameters are not used here to establish specifications for your panel.
| Model shown in the previous title | Mitsubishi AT070MJ01 |
|---|---|
| Listed size | 7 inches |
| Documentation required | Send a clear photo of the full panel label and the applicable manufacturer datasheet so the actual model, revision and replacement requirements can be checked. |
Reference reviewed: 2026-10-22.
What Must Be Checked Before Replacement?
| Mechanical fit | Outline dimensions, thickness, mounting points, active area, viewing area and cable clearance. |
|---|---|
| Signal compatibility | Resolution, Signal type, channel arrangement, data mapping, connector, pin assignment and supported timing. |
| Power and backlight | Panel supply voltage, power sequencing, backlight voltage/current, driver requirements and dimming control. |
| Optical and environmental | Brightness, viewing direction, contrast, operating temperature and equipment-specific reliability requirements. |
| System validation | Controller settings, cable or adapter changes, sample testing and approval in the actual equipment. |
A candidate may require cable, controller, backlight-driver or mechanical changes. Do not connect an unverified replacement panel.
Datasheet, Drawing and Replacement Review
Request available reference documentation for AT070MJ01 and a technical review of your replacement requirements. Documentation availability and the applicable revision will be confirmed in response.
Request AT070MJ01 Documents & Review- A clear photo of the full panel label and suffix.
- The original datasheet or mechanical drawing, if available.
- Equipment model, controller information and connector photos.
- Application, required quantity and target delivery date.
If the inquiry form does not accept attachments, mention that you have photos or drawings and request a suitable way to send them.
Replacement Review Process
- Identify the original panel and equipment requirements.
- Compare candidate documentation and record all differences.
- Confirm any necessary modifications, availability and commercial terms.
- Test a sample in the equipment before approving a production replacement.
Common Questions
Can any 7-inch panel replace AT070MJ01?
No. Mechanical, electrical, signal and backlight requirements must also match or be addressed through approved modifications.
Is a direct replacement already approved?
No specific substitute has been validated on this page. Candidate selection requires documentation review and testing in your equipment.
Does this page mean original Mitsubishi stock is available?
No. Remaining original stock must be checked separately; this page provides a replacement inquiry route.
