Driving board of industrial LCD with EDP interface

Date:2019-11-13

From the Youda roadmap we share each time, we can see that there are more and more LCD screens with EDP interface, including 8-inch, 10.1-inch, 11.6-inch, 12.5-inch, 13.3-inch, 14 inch, 15 inch, 15.6-inch, 17 inch, 17.3-inch and 18.5-inch Industrial LCD screens with EDP interface. We can see that EDP interface will be a trend in the future.

At present, the mainstream interface of our industrial LCD screen is LVDS interface, so the LCD driver board driving LVDS interface Industrial LCD screen is everywhere. Today, we share a LCD driver board driving EDP interface Industrial LCD screen - xh-edp520g, VGA to DP, HDMI to DP, DVI to EDP DP LCD driver board.

Xh-edp520g specification parameters:

Size: 112 * 16 * 14mm

Interface signal: 1-way VGA input, 1-way HDMI input, 2 * 2W power amplifier

Maximum resolution: 1920 * 1200

Chip solution: MSTAR

Input power + 12V single power supply or 5V power supply, support large screen power supply standby processing

Functions: DP LCD driver board can support automatic sensitivity, knob dimming, multi language, DICOM brightness correction, gamma setting (preset 7 gamma curves).

Working conditions: temperature - 20 ℃ to 70 ℃; Relative humidity 20% to 80%

Storage conditions: temperature - 40 ℃ to 80 ℃; Relative humidity 5% to 85%

Applicable specifications: Industrial LCD driver board, EDP LCD driver board, DisplayPort interface

Application: industrial control display, special occasion display, EDP screen, DisplayPort screen

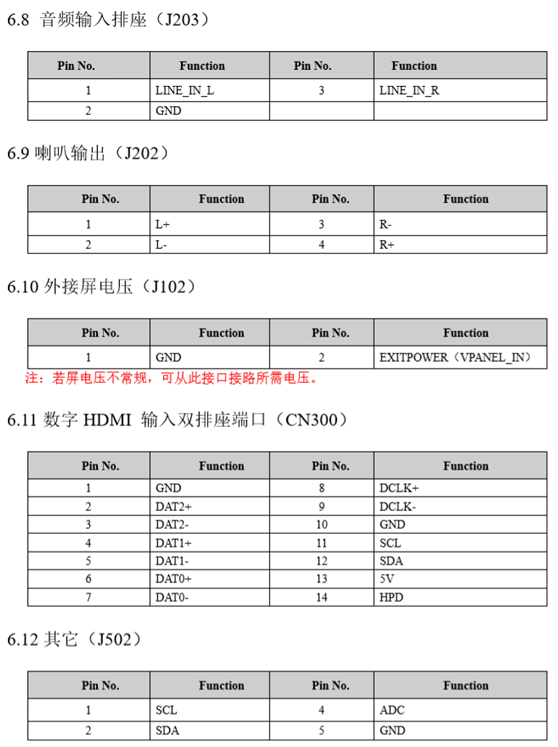

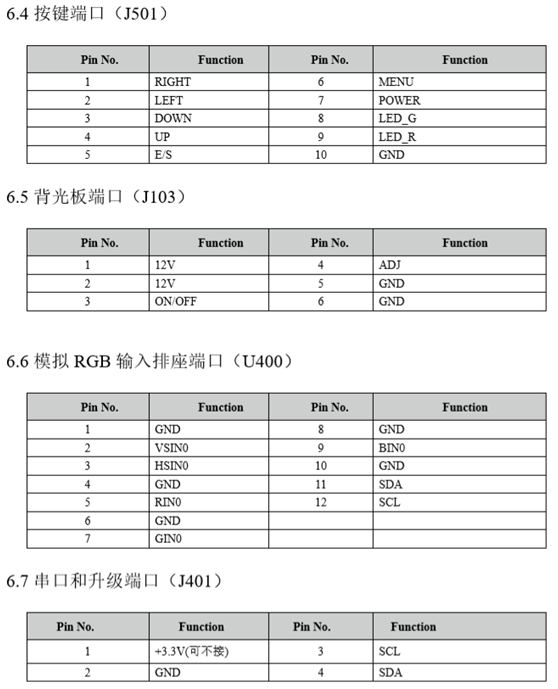

Definition of interface terminal:

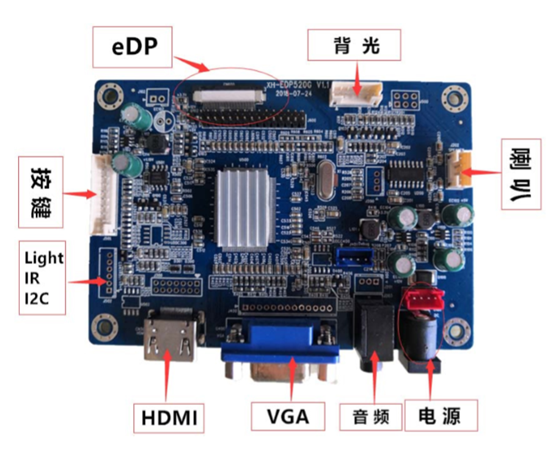

XH-EDP520G产品实物图:



关于XH-EDP520G规格书下载地址:链接: https://pan.baidu.com/s/1bR89IYsoU133Hus82cQHvQ 提取码: useq 复制这段内容后打开百度网盘手机App,操作更方便哦
