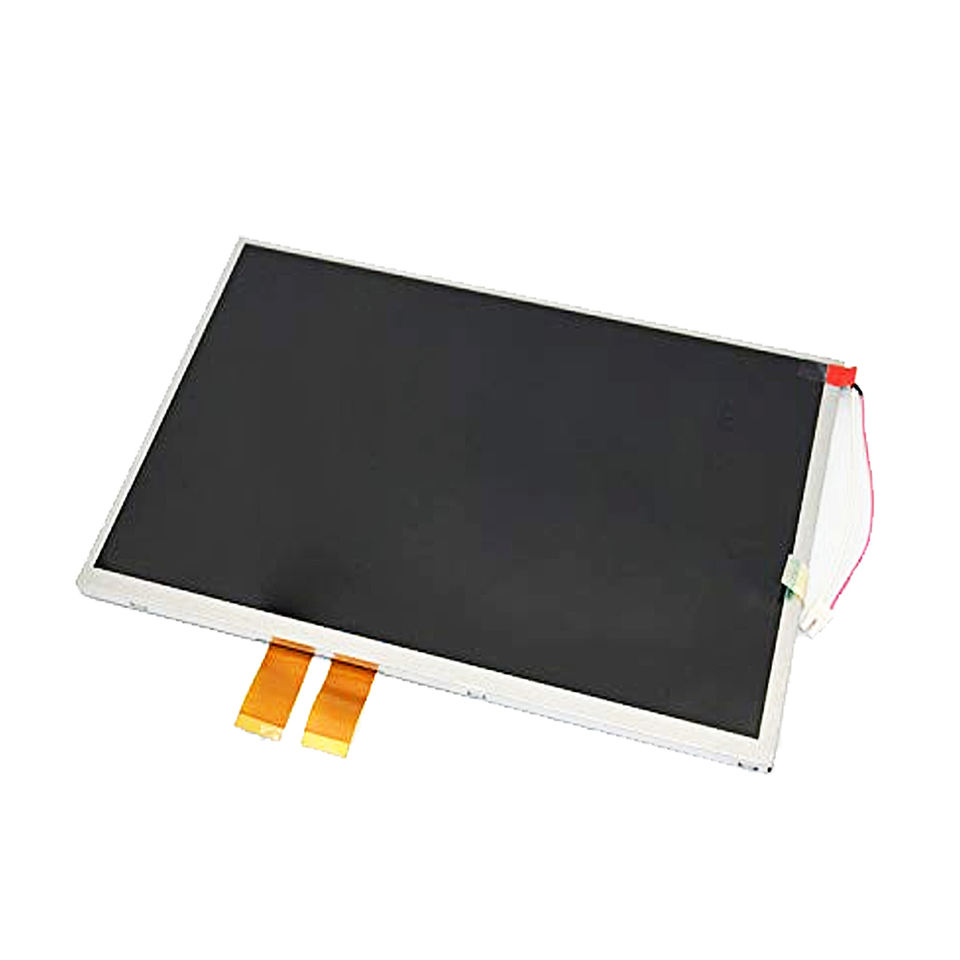

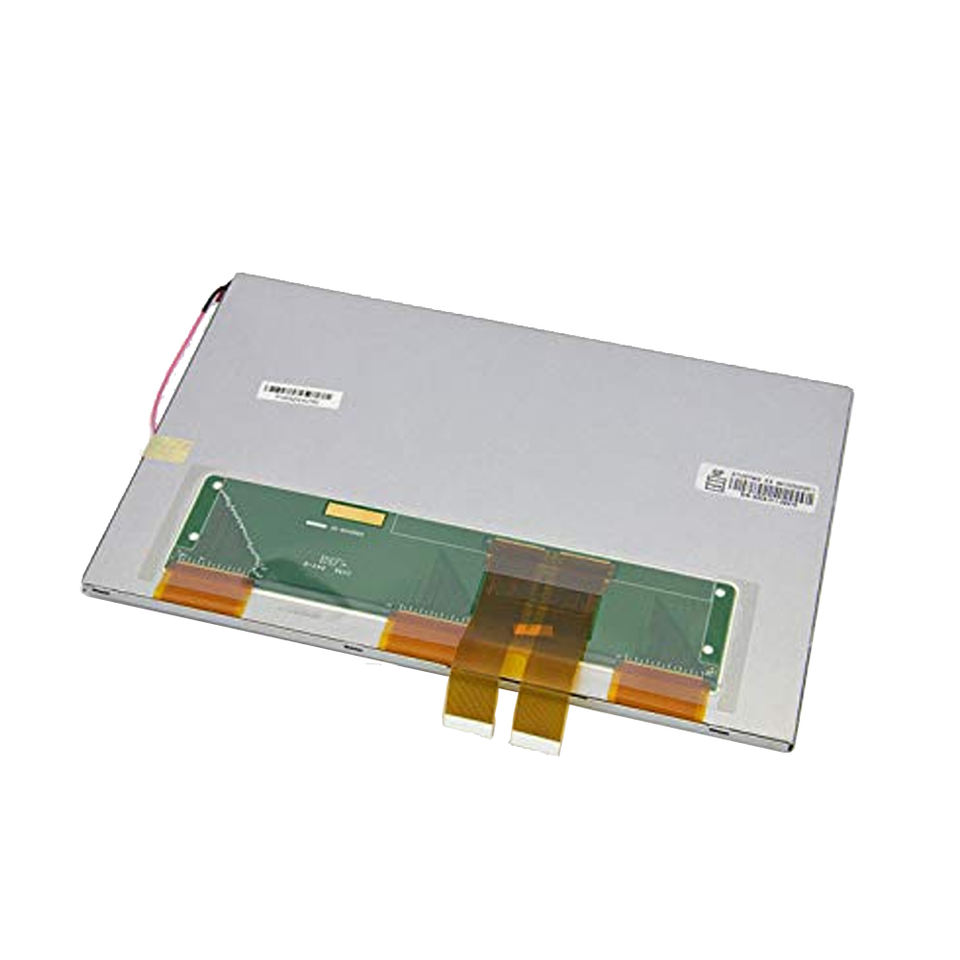

Chimei Innolux AT102TN03 V.9 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | AT102TN03 V.9 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.2” | Designed For | Digital Photo Frame，Portable DVD Player | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | - | |
| Features : | Wide Temperature，WLED Backlight，U/D,L/R Reverse,Matte | |||
Chimei Innolux AT102TN03 V.9 Optical Details
| Basic Information : | Luminance | 250 cd/m²(Typ.) | Contrast Ratio | 300 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 15/20 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 65/65/45/65 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | X:0.310; Y:0.330 | Display Colors | 262K (6-bit) |
Color Temperature | 6638K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
Chimei Innolux AT102TN03 V.9 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*480 [WVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0925*0.2760 mm (H*V) | Pixel Pitch (W×H) | 0.2775*0.2760 mm (H*V) [91PPI] | |
| Physical Size : | Active Viewing(mm) | 222*132.48 mm (H*V) | Bezel Area (mm) | 225.3*135.7 mm (H*V) |
| Outline Dim.(mm) | 235*145.8 mm (H*V) | Depth(mm) | 5.9±0.3 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (6-M2) on left, right bezel | |||
| Other Spec : | Weight | 325g (Typ.) | Surface | Antiglare |
Chimei Innolux AT102TN03 V.9 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 2.11W (Typ.) |
| Time Controller (T-CON) : | Need external T-CON |
Chimei Innolux AT102TN03 V.9 Interface Details
| Signal Electrical : | Signal Interface | TTL (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | ||||
| Signal Electrical : | Voltage Input | 3.3/9.2/16/-7V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 4.0/25/0.3/0.2mA (Typ.)(ICC/IAVDD/IGH/IGL) | ||||
| Interface Features : | Position | - | Physical Type | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| 0.5mm | 30pins | 2 pcs | ||||||
Chimei Innolux AT102TN03 V.9 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S10P | Position | Edge light type (Top side) | |||||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Min.) (Hours) | ||||||||
| Lamp Electrical : | Voltage Supply | 8.4/9.3/10.5V (Min./Typ./Max.) | Current Supply | 200±20mA | |||||||||
| Consumption | 1.86W (Typ.) | ||||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Backlight Driver : | No | ||||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||||||
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLE-2PINS-AC | ||||||||
Chimei Innolux AT102TN03 V.9 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 25pcs / box | 10.79±0.54 Kgs | 530*355*255 mm |
