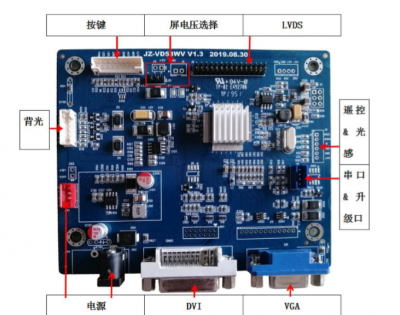

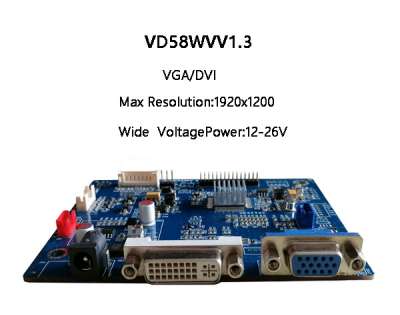

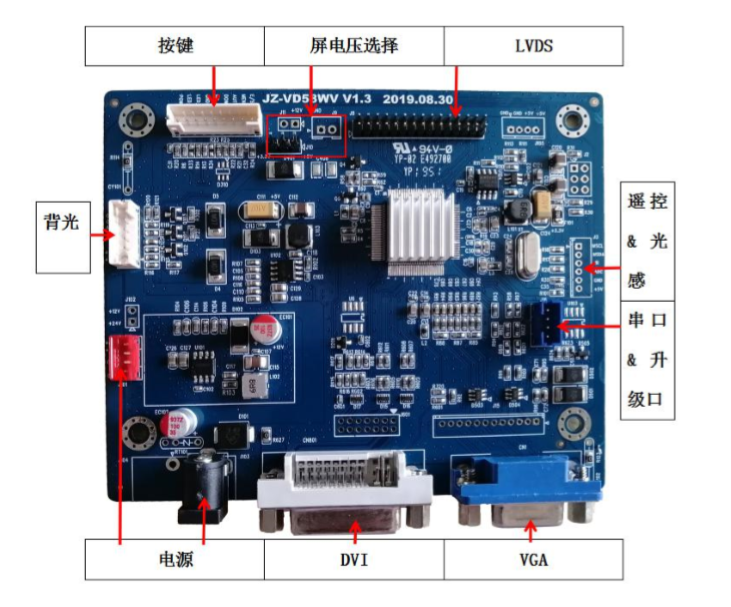

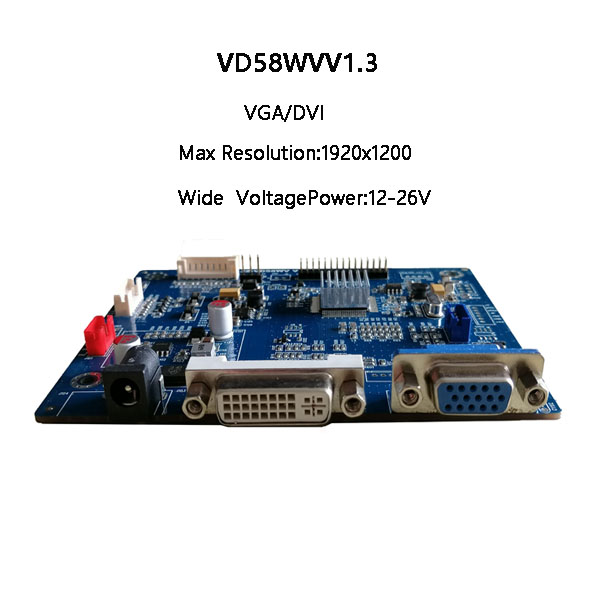

JZ-VD58WV is a high-quality TFT LCD monitor controller board with VGA+ DVI inputs, As the board is designed to act as a full monitor interface, besides the main functionality, also variousappealingOn-Screen-DisplayMenulayoutsarepossibleoncustomer’srequest.

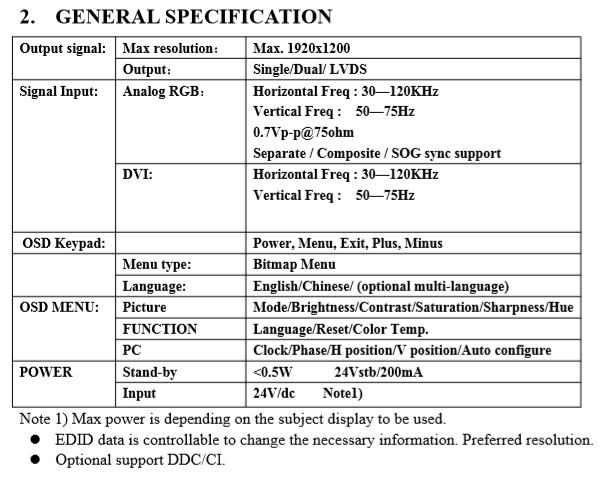

Keyfeatures:
*LVDSoutputresolutionupto1920x1200&1920x1080
*Lightsensor(optional)
*Workingtemperature: -40--50℃
*Serialportsetting
*Functionofremotecontrol
*Powervoltagerange:12-26V.
*SupportWorkingelectricity：>=2A.
* When the board is working, pay attention to heat dissipation. The metal shell of the whole machine can be contacted with the power cooling place on the back of the driving board card to increase heat dissipation and so on.

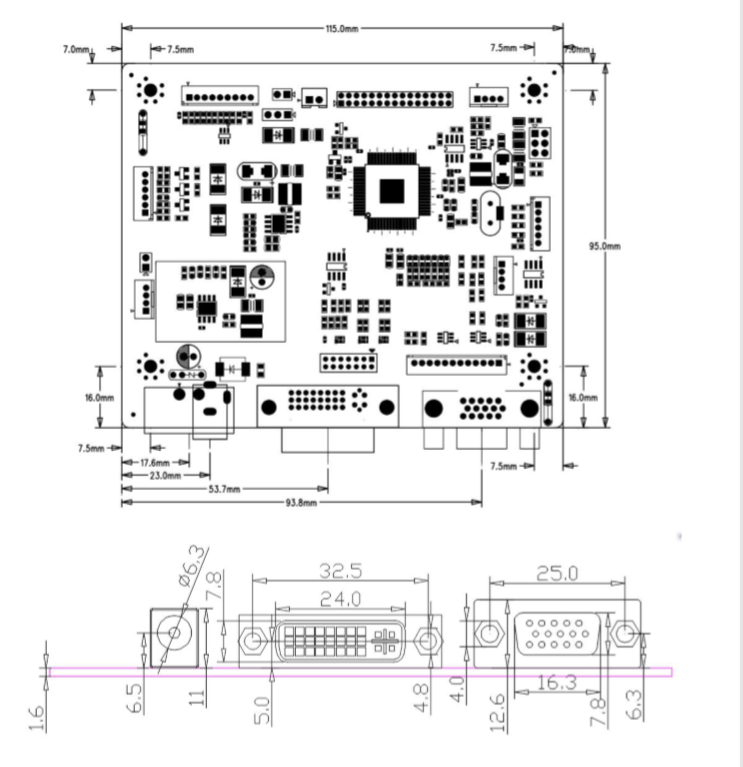

PCB height: 1.6mm
Total height: 15.0mm
Length and width: 115.0x95.0mm
