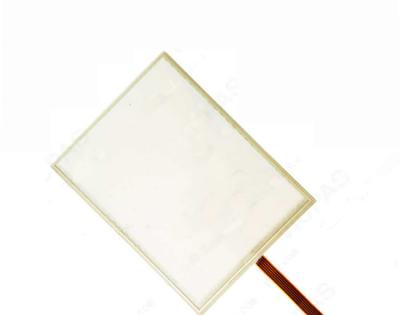

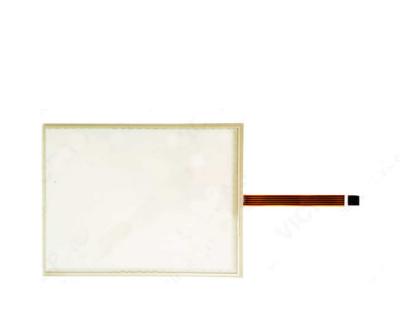

Amt2514 12.1 "5-wire resistive touch screen |
|
Brand |
AMT |
Model |
AMT2514 |
Size |
12.1” |
Outline Dim. |
270.99*205.51(H*V)mm |
Active Area |
248.87*187.4(H*V)mm |
Operating Temperature |
-10 ~ 60 °C |
Storage Temperature |
-40 ~ 80 °C |
Click life |
>10000000times (single point) |
Transmittance | 81±3% |
Haze degree |
9.5±413% |
Working voltage |
5V-12V |
Environmental testing |
Storage Temperature: -40℃~80℃ |
Transmission speed |
19200baud |
Impedance characteristics |
300-600Ω |
Linear error |
<1.5% |
New testing method |
High temperature test: test temperature 80 ℃, store 288 hours, take out and store 24 hours at room temperature ; Low temperature test: test temperature - Store at 40 ℃ for 288 hours, take out and store at room temperature for 24 hours ; High temperature and humidity test : Test temperature 60 ℃, humidity 90rh, storage 288 hours , Remove and store at room temperature for 24 hours ; Thermal shock test: test temperature - Store at 40 ℃ and 80 ℃ for 30 minutes respectively, cycle 10 times, and then store at room temperature for 24 hours ; Durability test: r8mm / 250g force / 2 times per second single touch touch panel, more than 10 million times ; Writing test: R0 . 8mm / 250g force, draw back 100000 times in a straight line of one inch |
Notes |
Suitable for 12.1 inch Industrial LCD screen, such as AUO12.1 inch g121sn01, etc |
