1、 Purpose
Due to product strategy consideration, G121EAN01.0 will launch a new cell glass and related EE parts components for better allocation.
2、Changes
- From G3.5 change to G5 FAB
- Gate IC: from Novatek (AU65208H) to Radium (RM76870)
- New PCBA layout to accommodate new Gate IC
3、 Desired Implementation Method & Date
2024/01/19 ; RUNNING CHANGE ;
4、 Attachment
EC Notice of Cell FAB Change to G5
1、Purpose：In order to increase production capacity allocation，need to verify another cell Fab for better allocation。
2、Change Items
-From G3.5 change to G5 FAB
-Gate IC: from Novate(AU65208H) to Radium(RM76870)
-New PCBA layout to accommodate new Gate IC
3、Verification schedule：
a.RA300hr/EMI/EMC/optical test would be ready on the end of July。
b.Sample would be available around by the early of June。

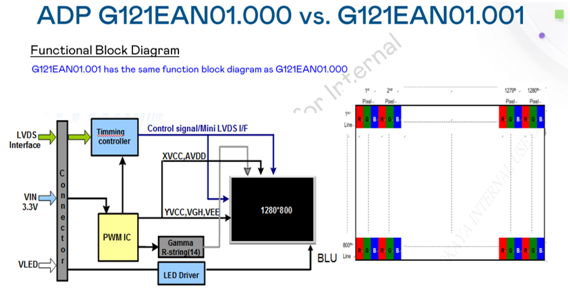

G121EAN01.000 VS G121EAN01.001
G121EAN01.001 has the comparable/key specs as G121EAN01.000，only cell FAB change to G5.
| （Preliminary）Spec. | G121EAN01.000(Before EC) | G121EAN01.001(After EC) |
| Outline Dimensions (mm) | 278.0 x 184.0 |  |
| Thickness (mm) | 9.29 | |
| Active Area (mm) | 261.12(H)x163.2(V) | |
| Resolution (Pixel) | 1280 RGB(H)×800(V) | |
| Display Mode | AHVA | |
| Contrast Ratio | 800:1 (Min.) | |
| Brightness | 500(Typ.) | |
| Response Time (typ.) | 25 ms | |
| Viewing Angle_ CR>10 (typ., H/ V) | 89 / 89 / 89 / 89 | |
| LED Life Time | 70K | |
| Weight | 480g | |
| Interface | LVDS | |
| Support Color | 16.2M (8bit) / 262K (6bit) | |
| Color Gamut (typ.) | 72% | |
| W(x, y) (typ.) | (0.313 , 0.329) | |
| Power Consumption | 6.06W | |
| Power Supply Voltage (typ.) | 12V | |
| Operation Temp. (℃) | -30 ~ 85 ℃ | |
| Storage Temp. (℃) | -30 ~ 85 ℃ | |
| Remark | ----- | New PCBA due to gate IC quantity is changing from 2pcs to 1 pcs after EC. |
