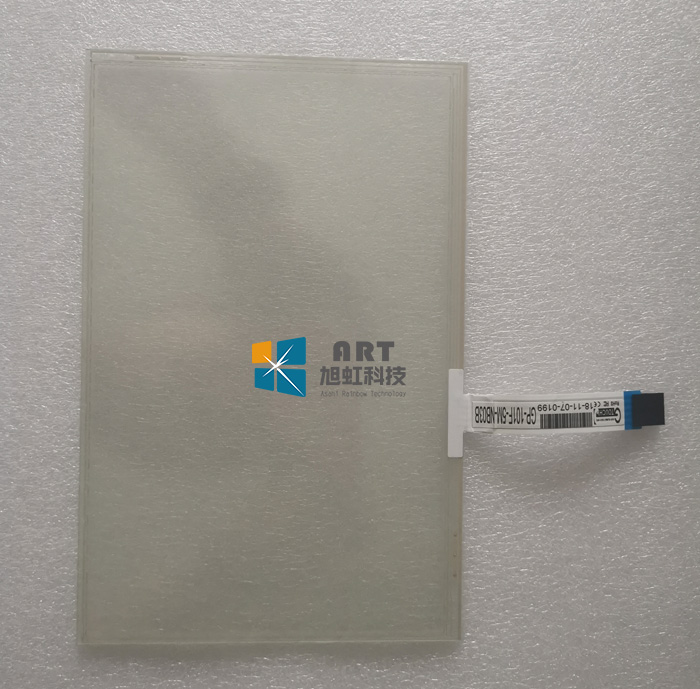

GP-101F-5M-NB03B 10.1 inch 5-wire resistive touch screen |
|
Brand |
GTOUCH |
Model Name |
GP-101F-5M-NB03B |
Screen Size : |
10.1” |

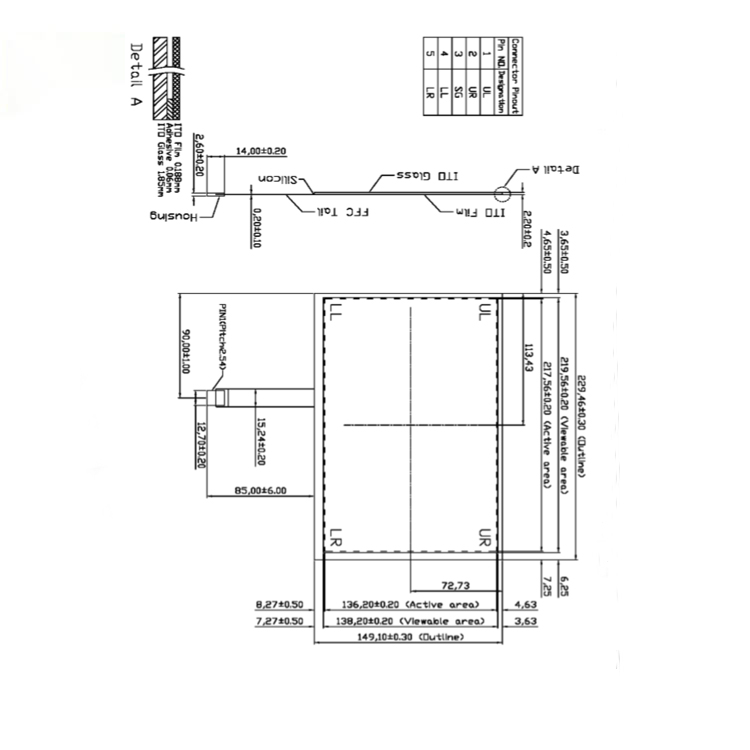

Outline Dim. |
229.46 x 149.10 mm |
Display Area |
217.56 x 136.20 mm |
Bezel Area |
219.56 x 138.20 mm |
Outline Depth |
2.2mm |
Operating Temp. |
-10°C ~ +60°C |
Storage Temp. |
-20°C ~ +70°C |
Working humidity |
20%RH ~80%RH |
Storage humidity |
20%RH ~ 90%RH |
Click life |
>10000000times(Single point) |
Transmittance |
>80%
|
Haze degree |
<13% |
Working voltage |
5V-12V |
Environmental testing |
Storage temperature:-40℃~80℃ |
transmission speed |
19200baud |
Impedance characteristics |
300-600Ω |
Linear error |
<1.5% |
Test method |
High temperature test: test temperature 80 ℃, store 288 hours, take out and store 24 hours at room temperature; Low temperature test: test temperature - 40 ℃, store 288 hours, take out and store 24 hours at room temperature; High temperature and humidity test: test temperature 60 ℃, humidity 90rh, storage 288 hours, take out at room temperature for 24 hours; Cold and hot shock test: the test temperature was - 40 ℃ and 80 ℃, and the storage time was 30 minutes each, 10 cycles, and then stored at room temperature for 24 hours; Durability test: r8mm / 250g force / 2 times per second single touch touch panel, more than 10 million times; Writing test: R 0.8 mm / 250 g force, draw back 100000 times in a straight line of one inch |
Notes |
Gp-101f-5m-nb03b 5-wire resistive touch screen is suitable for 10.1 inch Industrial LCD screen, such as Youda 10.1 inch g101evn03.1, etc |
