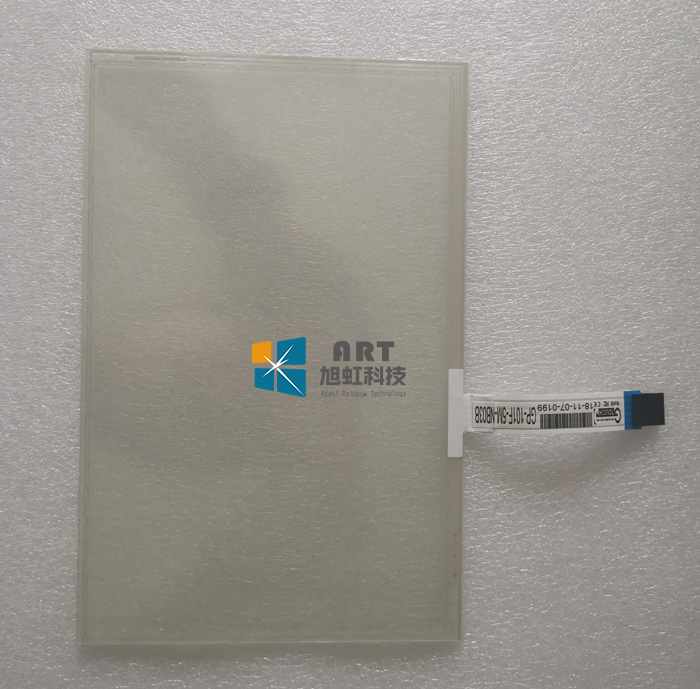

  • GP-101F-5N-NB01B
  • Model:GP-101F-5N-NB01B
  • Brand:gtouch
  • Aximum:5-wire resistive touch screen
  • Size:10.1 inches
  • Maximum resolution supported:
  • Interface signal:LR / ll / SG / ur / UL pitch = 2.54
  • LCDinterface:
  • Operating temperature: - 20 ° C to + 70 ° C
  • Current production status:
  • Technical Parameters
  • 1、GP-101F-5N-NB01B Brief introduction of five wire resistive touch screen products:

      This specification is applicable to five wire analog resistance touch screen:

      1. If ITO glass is not damaged, even if the surface is scratched. Still working normally;

      2. High temperature manufacturing process at 500 ℃;

      3. The warranty period is 2 years of normal operation and 10000000 times of contact;

      4. Provide high transparency touch screen (over 80%), even low brightness display is very clear;

      5. You can customize 5 to 26 inch sizes to meet customer requirements.

      6. It is designed to activate by the pressure of the finger or stylus.

      7. It's easy to install on different brands of displays.

    2、GP-101F-5N-NB01B characteristic

      Type

    Five wire analog resistance type

     Operation mode

    Brush or hand touch

      Links

    FFC

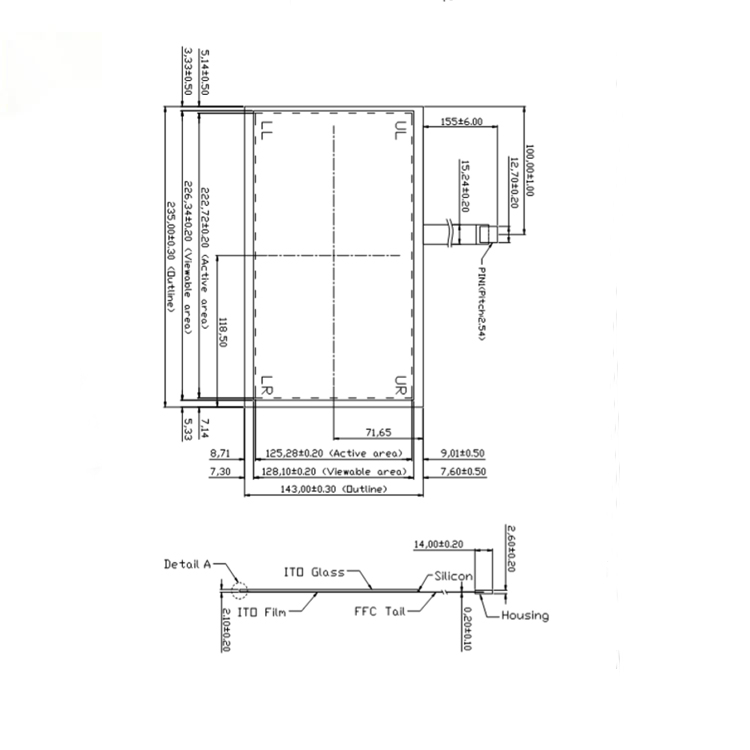

    3、GP-101F-5N-NB01B General specifications

    Frame size

    235.00 * 143.00mm ± 0.30mm

    Viewable area

    226.34 * 128.10mm ± 0.20mm

    Action area

    226.34 * 128.10mm ± 0.20mm

    Total thickness

    2.10mm ± 0.20mm

    Length of outgoing line

    155.00mm ± 6.00mm

    4、GP-101F-5N-NB01B Environmental characteristics

    Operating temperature

    -20°C ~ +70°C

    Storage temperature

    -40°C ~ +80°C

    Operating humidity

    20%RH ~85%RH

    Storage humidity

    10%RH ~ 90%RH

    Note: the above environment is atmospheric pressure

    5、GP-101F-5N-NB01B Optical characteristics

    Light transmittance

    ≧80% ± 3% (Measured by BYK-Gardner)

    Haze degree

    Antiglare Finish≦10% ± 3%

    6、GP-101F-5N-NB01B Electronic characteristics

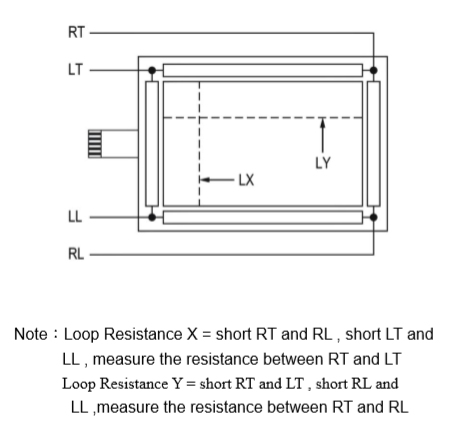

    Loop impedance

    X:20~500Ω, Y:20~500Ω

    Linear

    X≦1.5%, Y≦1.5%

    Actuation time

    ≦15ms

    Insulation impedance

    ≧20MΩ/25V(DC)

    Withstand voltage

    Dc50v / 60s no action damage
