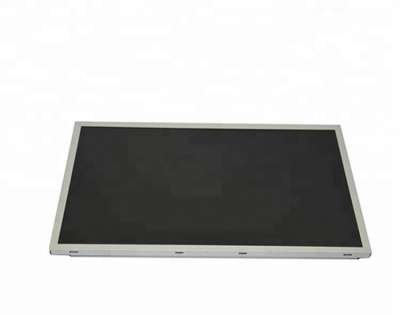

1、AUO G121EAN01.6 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G121EAN01.6 |
Diagonal Size | 12.1" | Application | Industrial，Medical Imaging | |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - | |
Reliability : | Operating Temp. | -30 ~ 85 °C | Storage Temp. | -30 ~ 85 °C |
RoHS State | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
Specific Features : | Wide Temperature，WLED Backlight，Life≥50K hours，With LED Driver，6/8bit ，Matte | |||
2、 AUO G121EAN01.6 Mechanical Details
Pixel Features : | Pixel Format | 1280(RGB)×800, WXGA | Dot Pitch | 0.068×0.204 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.204×0.204 mm (H×V) [124PPI] | |
Mechanical Size : | Display Area (mm) | 222.72(W)×125.28(H) mm | Bezel Area(mm) | 264.22×168.12 mm (H×V) |
Outline Dim. | 278×184 mm (H×V) | Outline Depth | 6.95/9.64 (Typ./Max.) mm | |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:10 (H:V) | Shape Style | ||
Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
Other Features : | Weight | - | Treatment | Antiglare, Hard coating (3H) |
3、AUO G121EAN01.6 Optical Details
Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AHVA, Normally White, Transmissive | |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) ms | |
Color Performance : | Chromaticity | X:0.313; Y:0.329 | Color Numbers | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | Uniformity | 1.33 (Max.)(5 points) |
4、AUO G121EAN01.6 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5、AUO G121EAN01.6 Backlight Details
Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) |
Replacement | - | Lamp Shape | - | Position | Edge light type | |
Interface Features : | Type | Included in signal interface | Position | Edge light type | Lamp Driver | With LED Driver |
6、AUO G121EAN01.6 Interface Detail
Signal Systerm : | eDP (1 Lane) | Logic Voltage | - | |
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - |
Interface Features : | Type | Connector | Position | - |
