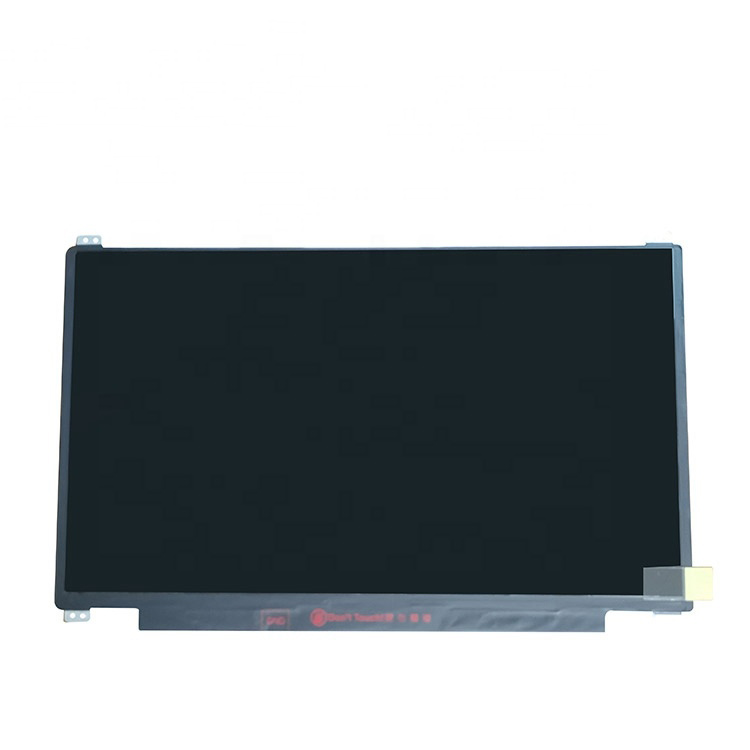

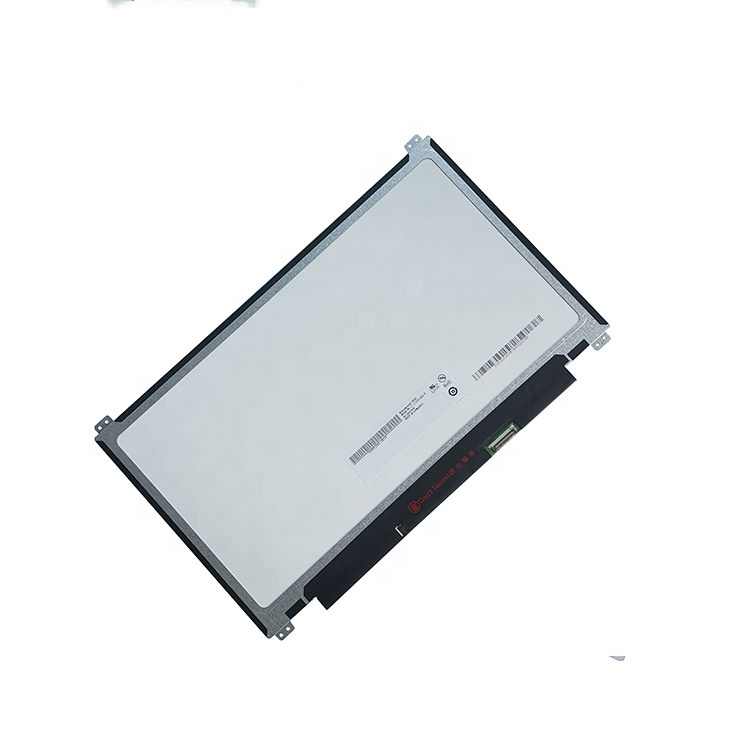

AUO G133HAN03.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G133HAN03.0 |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Panel Size | 13.3 inch | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| Vibration Level | 1.5G (14.7 m/s²) | RoHS | RoHS | |
| Features : | WLED Backliht，With LED Driver，Matte | |||
AUO G133HAN03.0 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Typ.) | Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 27 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.2M (6-bit + FRC) |
| Color Temperature | 6485K | White Uniformity | - |
AUO G133HAN03.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*1080 [FHD] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.05095*0.15285 mm | Pixel Pitch(W×H) | 0.15285*0.15285 mm [166PPI] | |
| Physical Size : | Active Viewing | 293.472(W)*165.078(H) mm | Overall Dim. | - |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 16:9 | Shape Style | ||
| Other Detail : | Mass | - | Surface | Antiglare |
AUO G133HAN03.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO G133HAN03.0 Interface Details
| Signal Electrical : | Input Current | - | Input Voltage | 3.3V (Typ.) | |
| Consumption | - | Signal Interface | eDP (2 Lanes), eDP1.2 | ||
| Interface Features : | Position | - | Physical Type | Connector | |
AUO G133HAN03.0 Lightting Details
| Lamp Features: | Lamp Shape | - | Lamp Type | WLED | Position | Edge light type |
| Exchange | - | Amount | - | Life | 15K(Typ.) (Hours) | |
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||
| Backlight Driver : | With LED Driver | |||||
