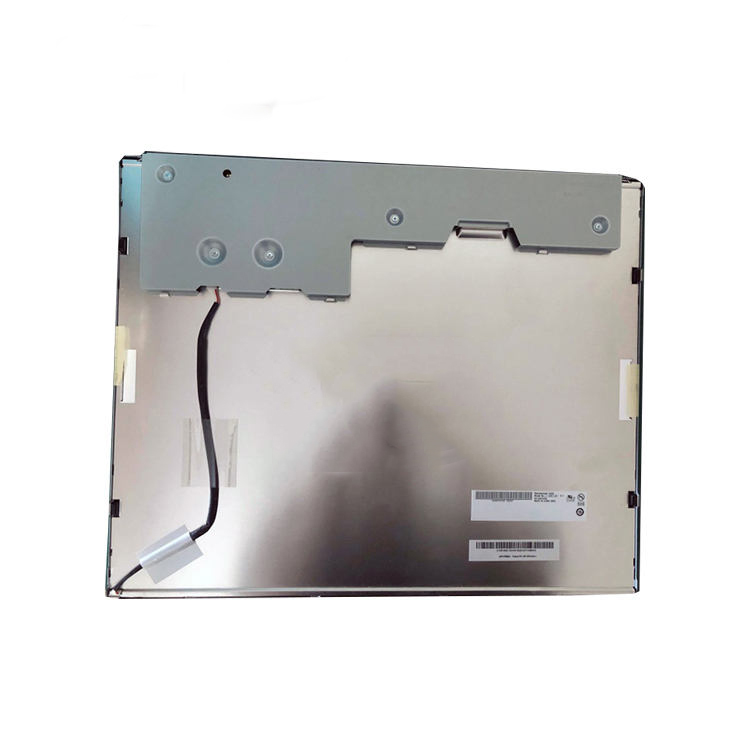

AUO G190EG01 V1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G190EG01 V1 |
| Panel Type | a-Si TFT-LCD , LCM | Model Alias | G190EG01 V.1 | |
| Panel Size | 19inch | Designed For | Industrial,Gaming | |
| Maximum Ratings : | OP Temperature | 0 ~ 50 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight，Life>=50K hours,With LED Driver，Matte,Upside I/F | |||
AUO G190EG01 V1 Optical Details
| Basic Information : | Luminance | 350cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 3.6/1.4 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Support Color | 16.7M (6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G190EG01 V1 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*1024 [SXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.098*0.294 mm | Pixel Pitch(W*H) | 0.294*0.294 mm [86PPI] | |
| Physical Size : | Active Viewing(mm) | 376.32(W)*301.056(H) mm | Outline Dim.(mm) | 396*324 mm (H*V) |
| Bezel Area | 380.32(W)*305.06(H) mm | Outline Depth | 918.3 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 5:4(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 1.67Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G190EG01 V1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 20.55W (Typ.) |
AUO G190EG01 V1 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.94/1.1A (Typ./Max.) | |||||
| Consumption | 4.7/5.5W (Typ./Max.) | Signal Interface | LVDS (2 ch, 8-bit) | ||||||
| Interface Features : | Type | Connector | Position | Rear | |||||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | |||
| P-TWO | 187034-30091 | 1.0 mm | 30 pins | 1 pcs | LVDS-30P2C8B-190A | ||||
AUO G190EG01 V1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Bottom side) | ||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) Hours | |||||||
| Lamp Electrical : | Voltage Input | Current Input | 80mA (Typ.) | |||||||||
| Consumption | 12/14.4W (Typ./Max.) | |||||||||||
| Interface Features : | Position | Rear | Physical Type | Connector | ||||||||
| Backlight Driver : | With LED Driver | |||||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration | ||||||
| STM | MS24019RHD | 1.25 mm | 9 pins | 1 pcs | ||||||||
| Driver Electrical : | Voltage Supply | 12.0V | Current Supply | 1.15/1.25A (Typ./Max.) | ||||||||
| Consumption | 13.8/15W (Typ./Max.) | |||||||||||
AUO G190EG01 V1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 6 pcs / box | 16.5 Kgs (Max.) | 476*274*413 mm (L*W*H) |
