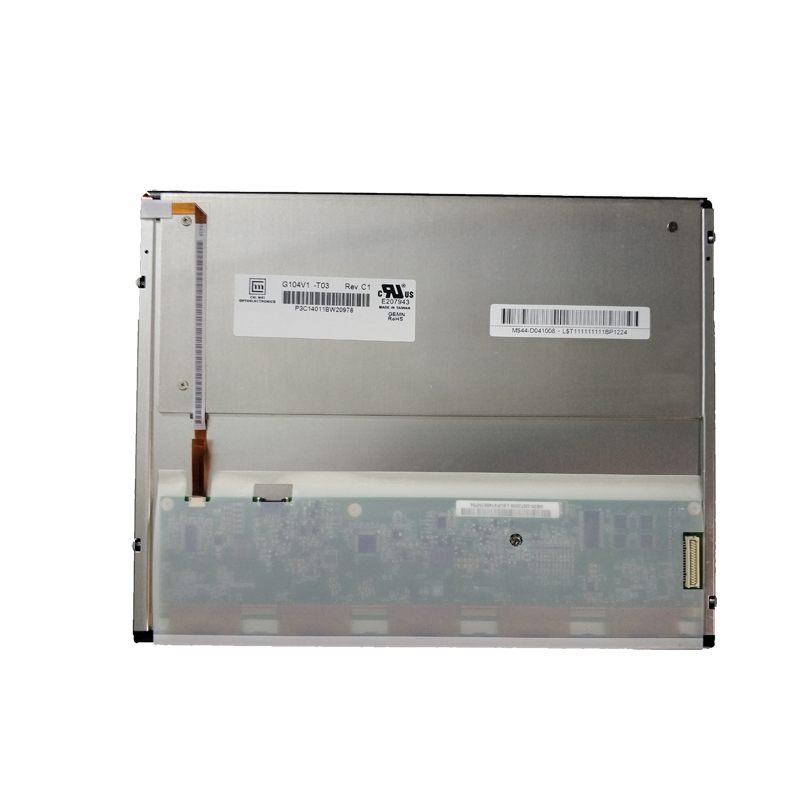

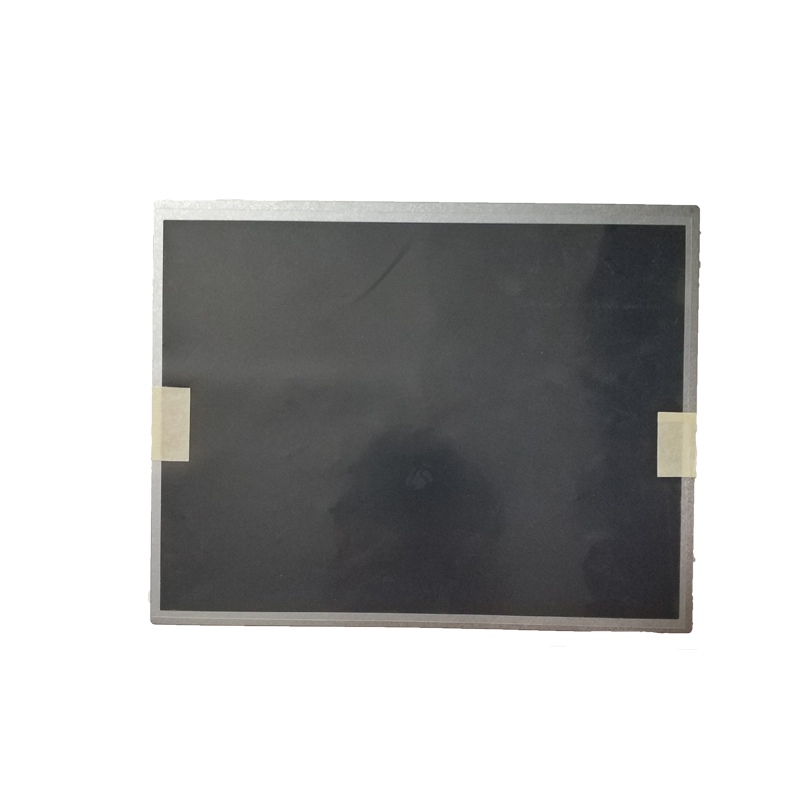

Chimei Innolux G104V1-T03 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G104V1-T03 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.4” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，Lamp Repaceable,WLED Backlight，Life>=50K hours,180°;Reverse,With LED Driver, Matte | |||
Chimei Innolux G104V1-T03 Optical Details
| Basic Information : | Luminance | 500 cd/m²(Typ.) | Contrast Ratio | 1500 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 14/9 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | Super MVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K (6-bit) |
Color Temperature | 6485K | White Variation | 1.40 (Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 55% | sRGB | 76% coverage |
| Adobe RGB | 57% coverage | DCI-P3 | 57% coverage | |
| Rec.2020 | 41% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G104V1-T03 Mechanical Details
| Pixel Features : | Number of Pixel | 640(RGB)*480 [VGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.110*0.330 mm (H*V) | Pixel Pitch (W*H) | 0.330*0.330 mm (H*V) [76PPI] | |
| Physical Size : | Active Viewing(mm) | 211.2(H) *158.4(V) | Bezel Area (mm) | 215.4*161.8 mm (H*V) |
| Outline Dim.(mm) | 225.5*176.3 mm (H*V) | Depth(mm) | 7.81/9.34 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3(W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 395±50g | Surface | Antiglare (Haze 25%), Hard coating (3H) |
Chimei Innolux G104V1-T03 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Total Consumption : | 8.94W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
Chimei Innolux G104V1-T03 Interface Details
| Signal Systerm : | CMOS/TTL (1 ch, 6-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | ||||||||
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.)(VCC) | Current Input | 490/390mA (Typ.)(ICC) | |||||||
| Consumption | 1.617W (Typ.) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| HRS | DF9C-31P-1V | 1.0mm | 31pins | 1 pcs | DRGB-31P1C6B-010C | ||||||
Chimei Innolux G104V1-T03 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type (Top side) | |||||||
| Exchange | Replaceable | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
| E&T | 3823K-F05N-00L | 1.25 mm | 5 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Input Voltage | 10.8/12.0/12.6V (Min./Typ./Max.) | Input Current | 0.61A (Typ.) | |||||||||
| Consumption | 7.32W (Typ.) | ||||||||||||
Chimei Innolux G104V1-T03 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 18pcs / box | 11.23 Kgs | 465*362*314mm |
