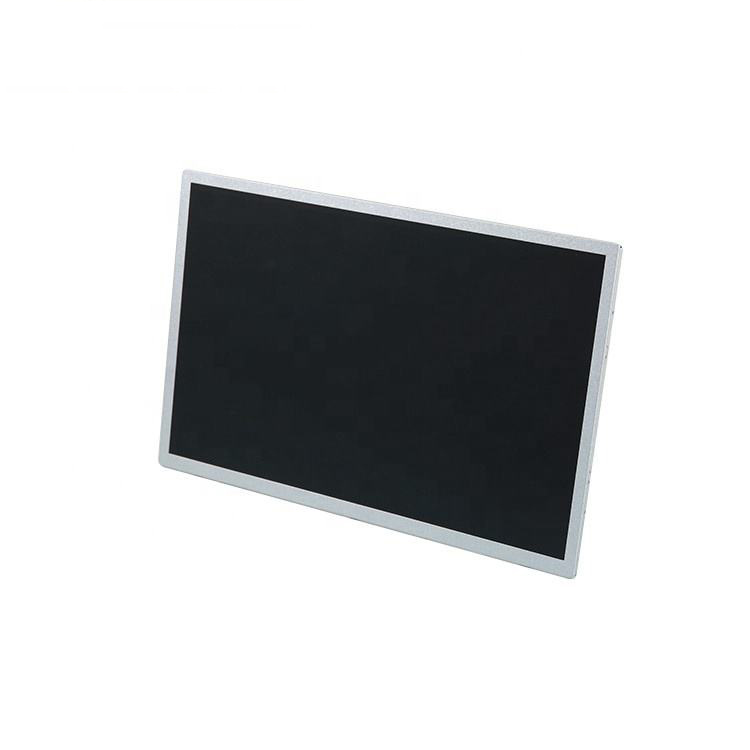

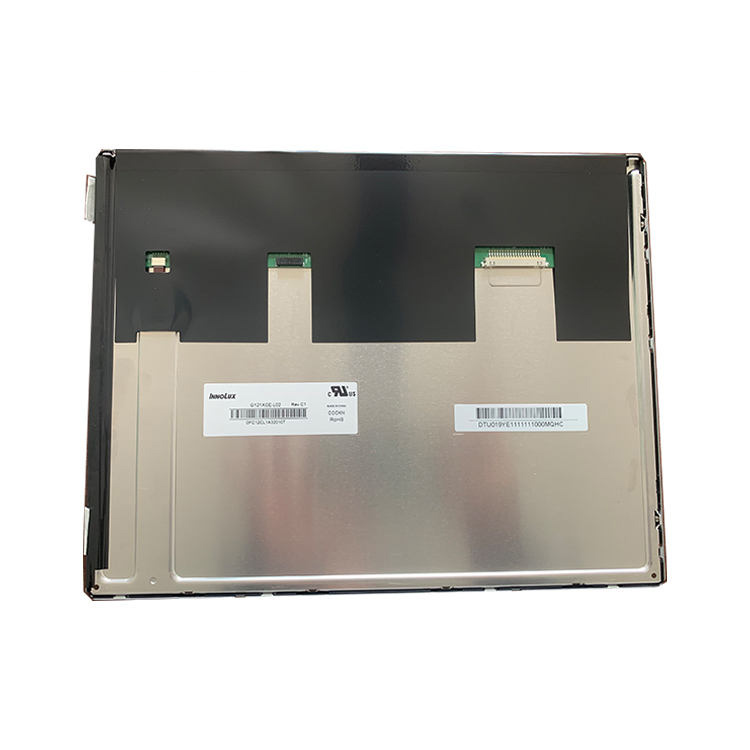

Chimei Innolux G121X1-L04 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G121X1-L04 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial,Automotive Display | |
| Maximum Ratings : | OP Temperature | -30 ~ 70 °C | ST Temperature | -40 ~ 80 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature， WLED Backlight，With LED Driver, U/D,L/R Reverse,6/8 bit, Matte | |||
Chimei Innolux G121X1-L04 Optical Details
| Basic Information : | Luminance | 500 cd/m²(Typ.) | Contrast Ratio | 700 : 1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 5/11 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 83% coverage |
| Adobe RGB | 65% coverage | DCI-P3 | 65% coverage | |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G121X1-L04 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.080*0.240 mm | Pixel Pitch (W×H) | 0.240*0.240 mm [105PPI] | |
| Physical Size : | Active Viewing(mm) | 245.76(W)*184.32(H) mm | Bezel Area (mm) | 249.0(W)*187.5(H) mm |
| Outline Dim.(mm) | 260.5(W)*204(H) mm | Depth(mm) | 7.2±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3(W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 435/465g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G121X1-L04 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Total Consumption : | 6.6W (Typ.) |
Chimei Innolux G121X1-L04 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3/5.0V (Typ.) | Current Input | 540/400mA (Typ.)(3.3/5.0V) | |||||||
| Consumption | 2.0W (Typ.) | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| JAE | FI-SEB20P-HFE | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-160A | ||||||
Chimei Innolux G121X1-L04 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
| ACES | 91208-01001 | 1.0 mm | 10 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Input Voltage | 12.0±5.0V | Input Current | 0.4/0.5A (Typ./Max.) | |||||||||
| Consumption | 4.8/6W (Typ./Max.) | ||||||||||||
Chimei Innolux G121X1-L04 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 16pcs / box | 9.13 Kgs | 465*362*314 mm (L*W*H) |
