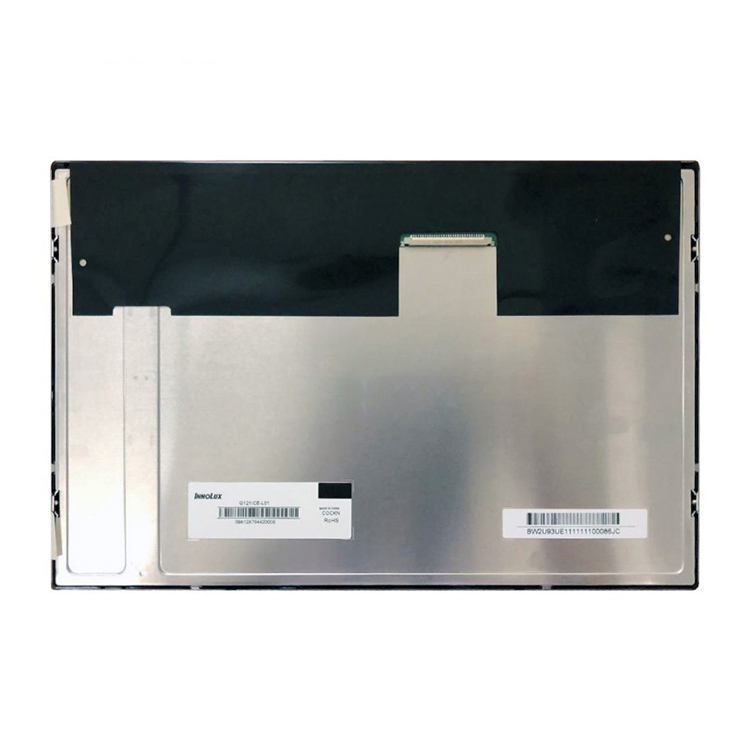

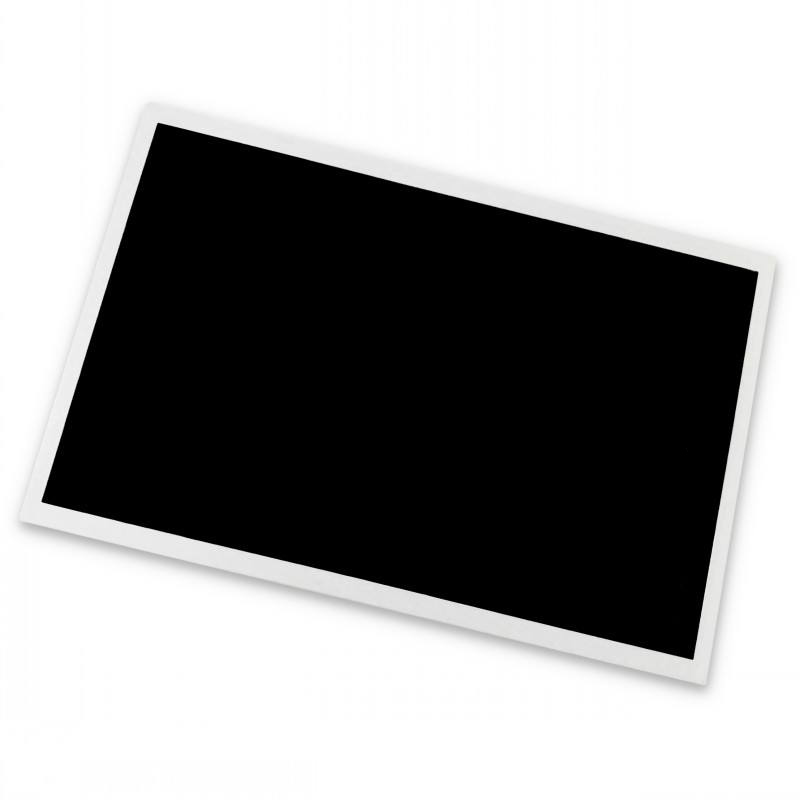

Chimei Innolux G121ICE-L01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G121ICE-L01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | Wide Temperature，Upside I/F,U/D,L/R Reverse，6/8bit，Matte | |||
Chimei Innolux G121ICE-L01 Optical Details
| Basic Information : | Luminance | 600 cd/m²(Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 12/8 (Typ.)(Tr/Td) | |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Operating Mode | AAS, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 8-bit) |
Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 75% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G121ICE-L01 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.068*0.204 (H*V) | Pixel Pitch (mm) | 0.204*0.204 (H*V) [124PPI] | |
| Physical Size : | Active Viewing(mm) | 261.12(H) *163.2(V) | Bezel Area (mm) | 264.12(H) *166.2(V) |
| Outline Dim.(mm) | 278(H)*184(V) | Depth(mm) | 7.6/11 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (W:H) | Orientation | Landscape type | |
| Fixation : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Spec : | Weight | 455g (Typ.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G121ICE-L01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 11.05W (Typ.) |
Chimei Innolux G121ICE-L01 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 440±40mA | |||||||
| Consumption | - | ||||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| P-TWO | 187114-30091 | 1.0mm | 30pins | 1 pcs | |||||||
Chimei Innolux G121ICE-L01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Backlight Driver : | With LED Driver | ||||||||
| Driver Electrical : | Input Current | 12.0±1.2V | Input Voltage | 0.8/1.0A (Typ./Max.) | |||||
Chimei Innolux G121ICE-L01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 20pcs / box | 17 Kgs (Typ.) | 465*362*314 mm |
