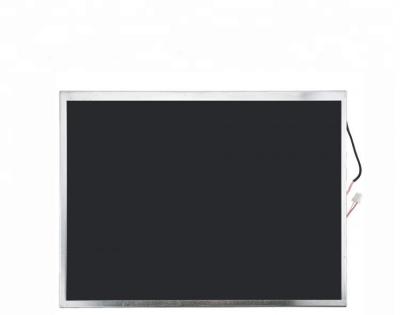

Innolux G121ACE-LH2 Application Details
| Basic Info : | Panel Brand | INNOLUX | Panel Model | G121ACE-LH2 |
| Diagonal Size | 12.1" | Application | Industrial | |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Reliability : | Operating Temp. | -30 ~ 80°C | Storage Temp. | -30 ~ 85 °C |
| RoHS | RoHS | Vibration Rating | 1.5G (14.7 m/s²) | |
| Specific Features : | Wide Temperature，Hight Brightness，WLED Backlight，Life>=50K hours,With LED Driver,Upside I/F,180°;Reverse，6/8bit，Matte | |||
Innolux G121ACE-LH2 Mechanical Details
| Pixel Features | Pixel Format | 800(RGB)*600, SVGA | Dot Pitch | 0.1025*0.3075mm (H*V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.3075*0.3075mm (H*V) [82PPI] | |
| Mechanical Size : | Display Area (mm) | 246(H) *184.5(V) | Outline Dim. (mm) | 249(H) * 187.5(V) |
| Outline Dim. (mm) | 260.5(H) * 204(V) | Outline Depth (mm) | 8.4±0.5 | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | ||
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel | |||
| Other Features : | Weight | 470/490g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Innolux G121ACE-LH2 Optical Details
| Basic Information : | Brightness | 600 cd/m²(Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) ms | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.2M (6-bit / 8-bit) |
| Color Temperature | 6485K | Uniformity | 1.25/1.43(Typ./Max.)(9 points) | |
| 1931 Color Gamut : | NTSC Ratio | 72% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 74% coverage | |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Innolux G121ACE-LH2 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 10.47W (Typ.) |
Innolux G121ACE-LH2 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) |
| Replacement | - | Lamp Shape | - | Position | Edge light type | |
| Interface Features : | Type | Connector | Position | - | Lamp Driver | With LED Driver |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| CviLux | CI4205M2HRP-NH | 1.25 mm | 5pins | 1 pcs | ||
| Driver Electrical : | Voltage Input | 12±1.2V | Current Input | 0.8±0.2A | ||
| Consumption | 9.6W (Typ.) | |||||
Innolux G121ACE-LH2 Interface Detail
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | |||
| Signal Electrical : | Voltage Input | 5.0V (Typ.) | Current Input | 87.96/105.64mA (Typ./Max.) | ||
| Consumption | - | |||||
| Interface Features : | Type | Connector | Position | Upper right of panel | ||
| Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
| I-PEX | 20455-030E-76 | 0.5mm | 30 pins | 1 pcs | - | |
Innolux G121ACE-LH2 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 18 pcs / box | 10.9 Kgs | 465*362*314 mm |
