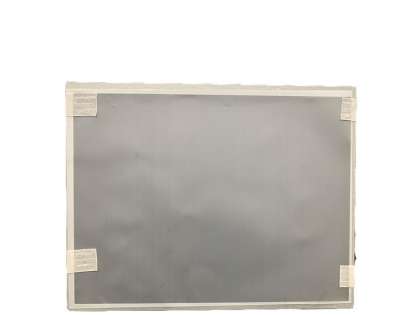

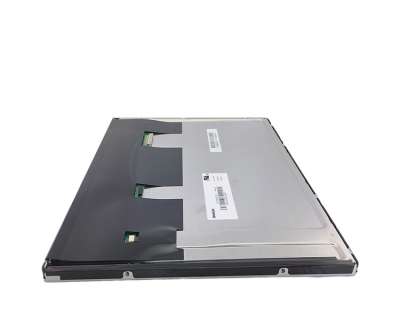

  • G121XCE-LM1 High Brightness 12.1 Inch 1024x768  LVDS LCD Display For Outdoor
  • G121XCE-LM1 High Brightness 12.1 Inch 1024x768  LVDS LCD Display For Outdoor
  • Model:G121XCE-LM1
  • Brand:CHIMEI
  • Size:12.1inch
  • Resolution:1024×768
  • Brightness:1000 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-30 ~ 75 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Innolux  G121XCE-LM1 Application Details

    Basic Info :

    Panel Brand

    INNOLUX

    Panel Model

    G121XCE-LM1

    Diagonal Size

    12.1"

    Application

    Industrial

    Panel Type

    a-Si TFT-LCD , LCM



    Reliability :


    Operating Temp.

    -30 ~ 75 °C

    Storage Temp.

    -40 ~ 80 °C

    RoHS State

    RoHS

    Vibration Rating

    1.5G (14.7 m/s²)

    Specific Features :

    Wide TemperatureUltra Hight BrightnessWLED BacklightLife50K hoursWith LED DriverUpside I/FU/D,L/R Reverse6/8bit Matte


    2Innolux G121XCE-LM1 Mechanical Details

    Pixel Features :


    Pixel Format

    1024(RGB)×768, XGA

    Dot Pitch

    0.080×0.240 mm (H×V)

    Configuration


    RGB Vertical Stripe

    Pixel Pitch

    0.240×0.240 mm (H×V)  [105PPI]

    Mechanical Size :

    Display Area

    245.76×184.32 mm (H×V)

    Outline Dim.

    249.0×187.5 mm (H×V)

    Outline Dim.

    260.5×204 mm (H×V)

    Outline Depth

    8.4/8.9 (Typ./Max.) mm

    Outline Features :

    Form Factor

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio

    4:3 (H:V)

    Shape Style


    Holes & Brackets :

    Side mounting holes (4-M2) on left, right   bezel

    Other Features :

    Weight

    490/510g (Typ./Max.)

    Surface

    Antiglare, Hard coating (3H)





    3Innolux G121XCE-LM1 Optical Details

    Basic Information :

    Brightness

    1000 cd/m² (Typ.)

    Contrast Ratio

    1000:1 (Typ.) (Transmissive)

    Viewing Angle

    89/89/89/89 (Typ.)(CR10)

    Optical Mode

    AAS, Normally Black, Transmissive

    Viewing Direction

    Symmetry

    Response Time

    13/12 (Typ.)(Tr/Td) ms

    Color Performance :

    Chromaticity

    Wx:0.313; Wy:0.329

    Color Numbers

    262K/16.7M (6-bit / 6-bit + Hi-FRC)

    Color Temperature

    6485K

    Uniformity

    1.25/1.40 (Typ./Max.)(9 points)

    1931 Color Gamut :

    NTSC Ratio

    73%

    sRGB

    93% coverage

    Adobe RGB

    72% coverage

    DCI-P3

    75% coverage

    Rec.2020

    54% coverage

    Remarks

    sRGB (Rec.709, BT.709), Rec.2020   (BT.2020)

    Dispaly Performance :

    Outdoor Visibility

    Sunlight Readable

    Transmittance

    -


    4Innolux G121XCE-LM1 Electronics Details

    Frame Frequency :

    60Hz

    Reverse Scan :

    Yes (U/D, L/R)

    Power Consumption :

    TBD


    5Innolux G121XCE-LM1 Backlight Details

    Back-light Features :

    Lamp Type

    WLED

    Amount

    -

    Life Time

    50K(Min.) (Hours)

    Replacement

    Replaceable

    Lamp Shape

    -

    Position

    Edge light type

    Interface Features :

    Type

    Connector

    Position

    -

    Lamp Driver

    With LED Driver

    Interface Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Configuration

    ACES

    91208-01001-H01


    1.0 mm

    10 pins

    1 pcs


    Driver Electrical :

    Voltage Input

    12.0±1.2V


    Current Input

    1.00/1.16A (Typ./Max.)

    Consumption

    12.0/13.9W (Typ./Max.)


    6Innolux G121XCE-LM1 Interface Detail

    Signal Systerm :

    LVDS (1 ch, 6/8-bit)



    Logic Voltage

    -


    Signal Electrical :

    Voltage Input

    3.3V (Typ.)

    Current Input

    520/620mA (Typ./Max.)

    Consumption

    1.72/2.05W (Typ./Max.)

    Interface Features :

    Type

    Connector


    Position

    Upper right of panel

    Connector Detail :

    Brand

    Model

    Pin Pitch

    Pins

    Amount

    Configuration

    STARCONN

    076B20-0048RA-G4

    1.25 mm

    20 pins

    1 pcs

    LVDS-20P1C8B-160A

















    7Innolux G121XCE-LM1 Carton Details

    Box Type

    Pcs/Box

    Package LWH (mm)

    G.W (kgs)

    18

    465×362×314

    10.90
