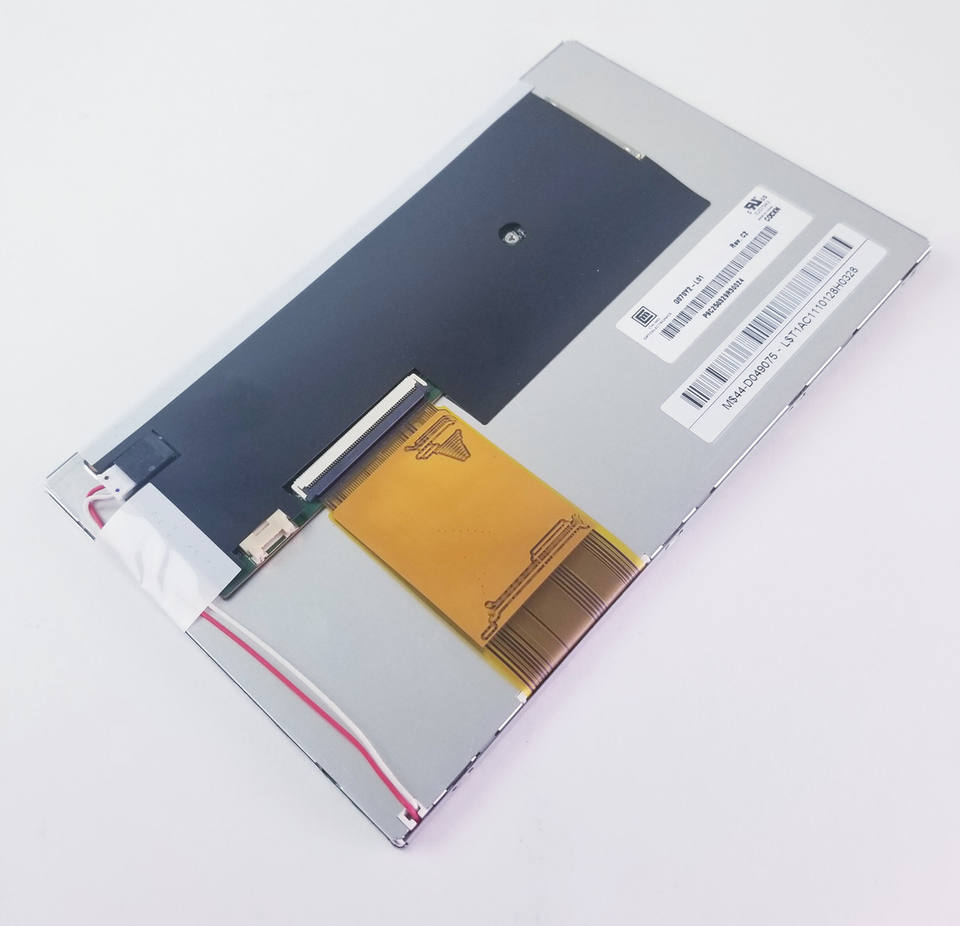

Chimei Innolux G070Y3-T01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G070Y3-T01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 7.0” | Designed For | Industrial，Autimotive Display | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 3.0G (29.4 m/s²) | |
| Features : | Wide Temperature，Hight Brightness，Lamp Repaceable，WLED Backlight，180°;Reverse,Matte | |||
Chimei Innolux G070Y3-T01 Optical Details
| Basic Information : | Luminance | 600 cd/m²(Typ.) | Contrast Ratio | 650 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 5/11 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 262K (6-bit) |
Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 59% | sRGB | 77% coverage |
| Adobe RGB | 60% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G070Y3-T01 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.065*0.1725 mm (H*V) | Pixel Pitch (W×H) | 0.195*0.1725 mm (H*V) [134PPI] | |
| Physical Size : | Active Viewing(mm) | 156*82.8 mm (H*V) | Bezel Area (mm) | 159.3*86.0 mm (H*V) |
| Outline Dim.(mm) | 168*94 mm (H*V) | Depth(mm) | 5.7/6.65 (Typ./Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:9 (W:H) | Orientation | Landscape type | |
| Fixation : | Without | |||
| Other Spec : | Weight | 180g (Typ./Max.) | Surface | Antiglare (Haze 25%), Hard coating (3H) |
Chimei Innolux G070Y3-T01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Time Controller (T-CON) : | Need external T-CON |
Chimei Innolux G070Y3-T01 Interface Details
| Signal Electrical : | Voltage Input | 3.3/10.5/18/-7V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 2.86/21.0/0.13/0.13mA (Typ.)(ICC/IDD/IGG/IEE) | ||||
| Consumption | - | Signal Interface | TTL (1 ch, 6-bit) | |||||
| Logic Voltage : | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | |||||||
| Interface Features : | Position | - | Physical Type | FPC | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| 0.5mm | 50pins | 1 pcs | ||||||
Chimei Innolux G070Y3-T01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 7S2P | Position | Edge light type (Bottom side) | ||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 50K(Min.) (Hours) | |||||
| Lamp Electrical : | Voltage Input | 18.9/28.0/31.5V (Min./Typ./Max.) | Current Input | 110mA (Typ.) | ||||||
| Consumption | 3.08W (Typ.) | |||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | ||||
| 2 pins | 1 pcs | BLE-2PINS-AC | ||||||||
| Backlight Driver : | No | |||||||||
Chimei Innolux G070Y3-T01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 40 pcs / box | 15.5 Kgs | 435*350*265 mm |
