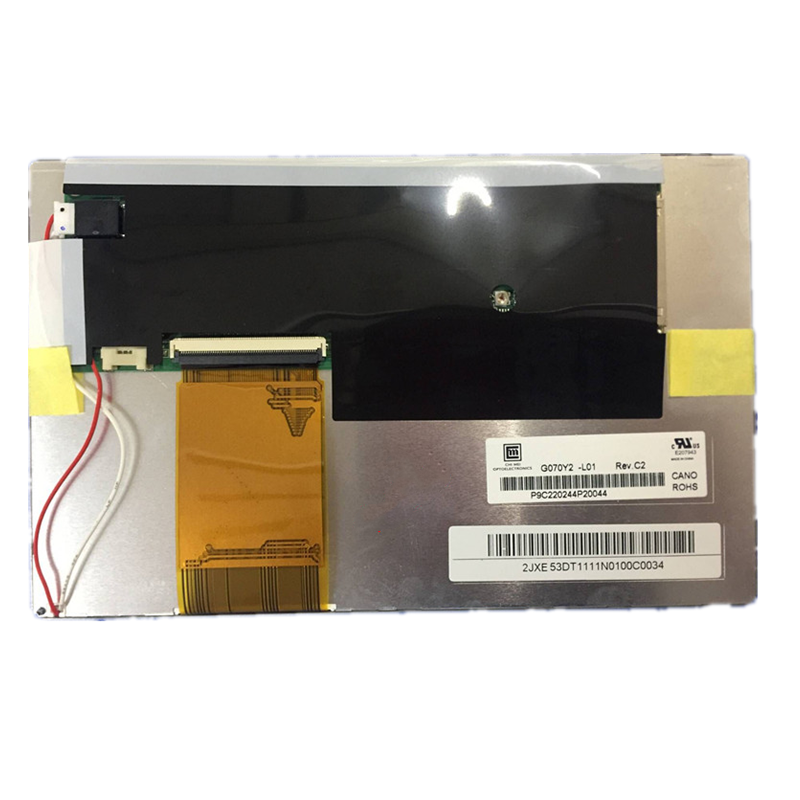

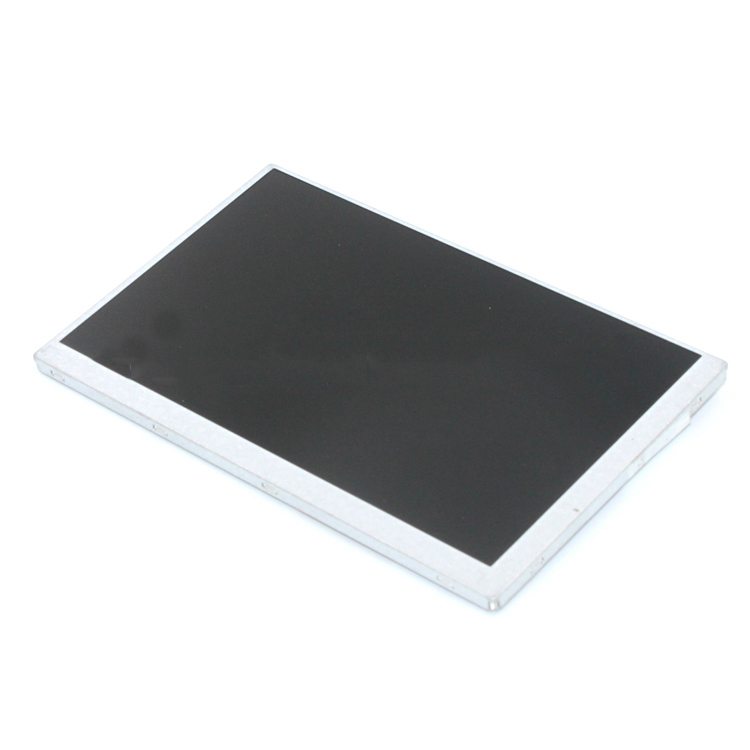

Chimei Innolux G070Y2-L01 Application Details
| Basic Detail : | Panel Brand | INNOLUX/CHI MEI | Model Name | G070Y2-L01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 7.0” | Designed For | Industrial，Autimotive Display | |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 3.0G (29.4 m/s²) | |
| Features : | Wide Temperature，WLED Backlight，Life>=50K hours,With LED Driver,U/D,L/R Reverse,Matte,6/8bit | |||
Chimei Innolux G070Y2-L01 Optical Details
| Basic Information : | Luminance | 500 cd/m²(Typ.) | Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 5/11 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.40 (Typ./Max.)(5 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 74% | sRGB | 97% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 77% coverage | |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Chimei Innolux G070Y2-L01 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*480, WVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.0635*0.1905 mm (H*V) | Pixel Pitch (W*H) | 0.1905*0.1905 mm (H*V) [133PPI] | |
| Physical Size : | Active Viewing(mm) | 152.4*91.44 mm (H*V) | Bezel Area (mm) | 154.6*93.64 mm (H*V) |
| Outline Dim.(mm) | 165*104 mm (H*V) | Depth(mm) | 9.53±0.5 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9 (W:H) | Orientation | Landscape type | |
| Fixation : | Without | |||
| Other Spec : | Weight | 147/162g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
Chimei Innolux G070Y2-L01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | 3.71W (Typ.) |
Chimei Innolux G070Y2-L01 Interface Details
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 170/204mA (Typ./Max.) | ||||
| Consumption | 0.56W (Typ.) | Signal Interface | LVDS (1 ch, 6/8-bit) | |||||
| Logic Voltage : | - | |||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||
| STARCONN | 076B20-0048RA-G4 | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-160A | |||
Chimei Innolux G070Y2-L01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | Position | Edge light type (Bottom side) | ||||||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 50K(Min.) (Hours) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pitch | Pins | Amount | Pin Assignment | |||||||
| UNE | LM123S004HTF13 | 1.25 mm | 4 pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Voltage Input | 12.0±1.2V | Current Input | 0.25A (Typ.) | |||||||||
| Consumption | 3.15W (Typ.) | ||||||||||||
Chimei Innolux G070Y2-L01 Carton Details
| Package Box : | Amount | Weight | Size (L*W*H) |
| 34 pcs / box | - | 465*362*314 mm |
