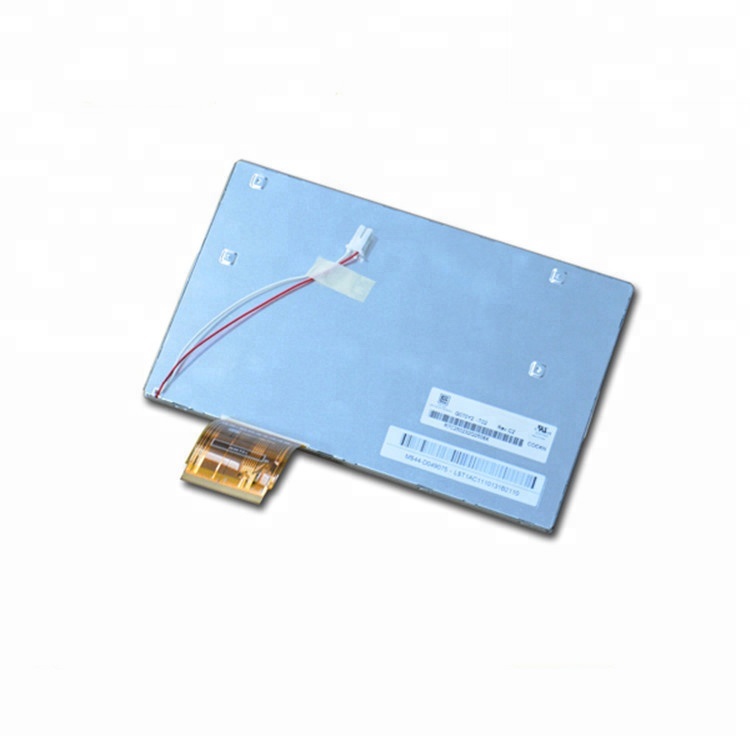

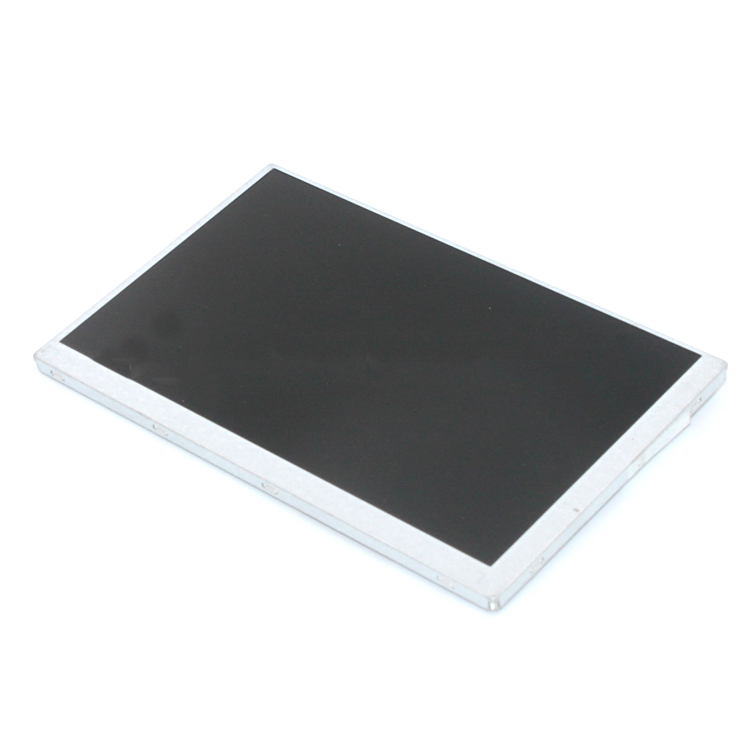

AUO G070ACE-LH1 Application Details
| Basic Info : | Panel Brand | AUO | Panel Model | G070ACE-LH1 |
| Diagonal Size | 7.0inch | Application | Industrial,Outdoor High Brightness | |
| Panel Type | a-Si TFT-LCD , LCM | |||
| Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 85°C |
| RoHS State | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Specific Features : | Wide Temperature，Ultra High Brightness,WLED Backlight，Life>=50 hours,With LED Driver,6/8 bit,,Matte | |||
AUO G070ACE-LH1 Mechanical Details
| Pixel Features : | Pixel Format | 800(RGB)*480, WVGA | Dot Pitch (W×H) | 0.0635*0.1905 mm |
| Configuration | RGB Vertical Stripe | Pixel Pitch (mm) | 0.1905*0.1905 mm [133PPI] | |
| Mechanical Size : | Active Viewing | 152.4(W)*91.44(H) mm | Overall Dim. | 170(W)*110(H) mm |
| Bezel Opening | 154.4(W)*93.44(H) mm | Overall Depth | 6.0/8.85 (Typ./Max.) mm | |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 15:9 (H:V) | Shape Style | ||
| Fixation : | Side mounting holes (4-M2) on up, down bezel | |||
| Other Detail : | Mass | 183±9g | Surface | Antiglare, Hard coating (3H) |
AUO G070ACE-LH1 Optical Details
| Brightness | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 800:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive | |
| Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 8-bit) |
| Color Temperature | 6485K | Uniformity | 1.43 (Max.)(5 points) | |
| 1931 Color Gamut : | NTSC Ratio | 59% | sRGB | 82% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 61% coverage | |
| Rec.2020 | 44% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) | |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO G070ACE-LH1 Electronics Details
| Frame Frequency : | 60Hz |
| Reverse Scan : | No |
| Time Controller (T-CON) : | 3.98W (Typ.) |
AUO G070ACE-LH1 Backlight Details
| Back-light Features : | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) (Hours) | ||||
| Replacement | - | Lamp Shape | - | Position | Edge light type | |||||
| Interface Features : | Position | - | Physical Type | Included in signal interface | ||||||
| Backlight Driver : | With LED Driver | |||||||||
| Backlight Driver : | Input Current | 0.3±0.1A | Input Voltage | 12.0±1.2V | ||||||
| Consumption | 3.5/4.0W (Typ./Max.) | |||||||||
AUO G070ACE-LH1 Interface Details
| Signal Electrical : | Input Current | 135/200mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) | |||||||
| Consumption | 0.48/0.73W (Typ./Max.) | Signal Interface | LVDS (1 ch, 6/8-bit) | ||||||||
| Interface Features : | Position | - | Type | Connector | |||||||
| Signal Interface : | Brand | Model | Amount | Pin Pitch | Pin Amount | Pin Assignment | |||||
| STARCONN | 093G30-B0001A-G4 | 1 pcs | 1.0mm | 30pins | |||||||
Innolux G070ACE-LH1 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 38 pcs / box | 8.3Kgs | 455*370*275 mm (L*W*H) |
