Your location:Home > Products > LCD Driver Board >

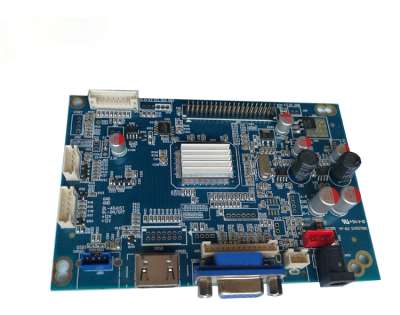

  • DM37F V1.0 Car mounted LCD display driver board
  • Model: DM37F
  • Brand:Xuhong
  • Aximum:≤ 1920*1200
  • Size:≤ 82”
  • Maximum resolution supported:
  • Interface signal: VGA/HDMI/DVI/USB
  • LCDinterface:
  • Operating Temp.:-25 ~ 85 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • Project

    Describe

    Chip Scheme

    MSTAR

    Supports maximum resolution

    1920*1200

    Support size

    ≤ 82”

    Interface signal

    Two CVBS signal inputs, one VGA, one   HDMI/DVI, one YPBPR, two USB (capable of reading high-definition video   images), and one CVBS output

    Input power

    +12V single power supply, recommended to   use a 48W or higher power adapter

    Function

    Support multiple languages, support full   HD 1080P decoding, support full true color startup images (images, videos),   support breakpoint memory, support playback, and support reverse screen;   Supports flipping function and factory mode control signal output

    LCD screen interface

    LVDS(6/8/10bit) 2ch

    Storage conditions

    temperature:-40℃ to 150℃; relative   humidity: 5% to 85%

    Working conditions

    temperature:-25℃ to 85℃; relative   humidity: 20% to 80%

    Size

    123*83*15mm

    Application scope

    Industrial display, vehicle display
