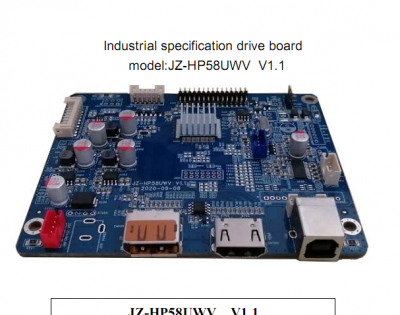

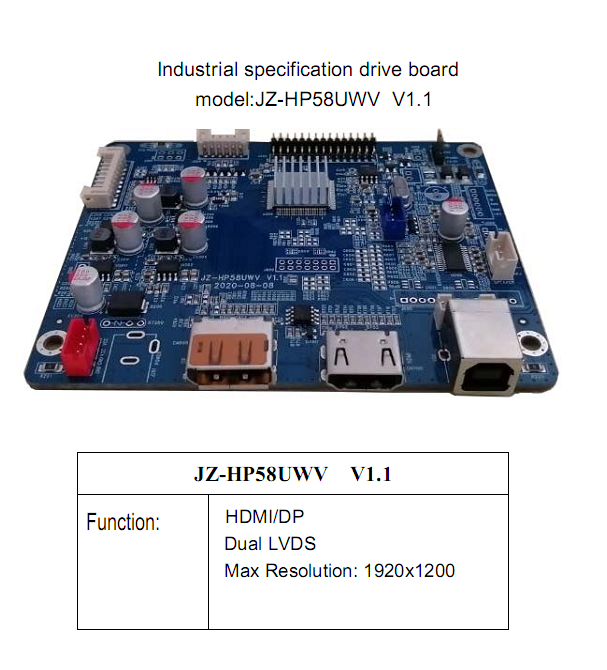

  • JZ-HP58UWV driver board with 1 DP and 1 HDMI interface, ,Support IR remote contr
  • JZ-HP58UWV driver board with 1 DP and 1 HDMI interface, ,Support IR remote contr
  • JZ-HP58UWV driver board with 1 DP and 1 HDMI interface, ,Support IR remote contr
  • Model:JZ-HP58UWV
  • Brand:Xuhong
  • Aximum:≤1920x1200
  • Size:108.0 x 88.9 mm
  • Maximum resolution supported:
  • Interface signal:DP/ HDMI
  • LCDinterface:
  • Operating Temp.:-20 ~ 70 °C
  • Production State:In Production
  • Click For Price

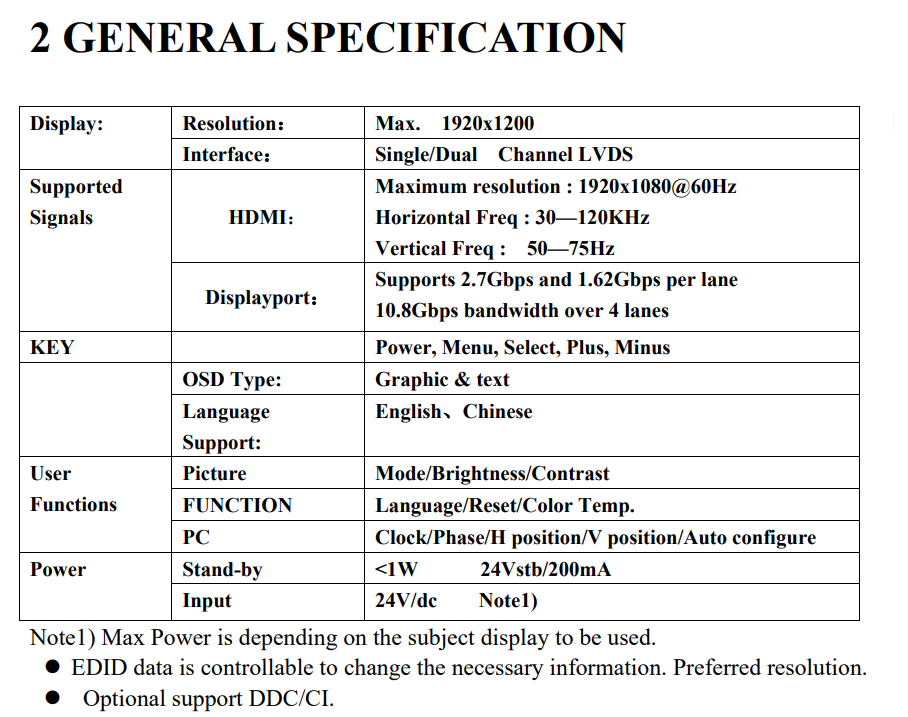

  • Technical Parameters
  • The driver board is mainly used to support TFT LCD, with 1-way DP and 1-channel HDMI interface, supporting LVDS Output interface. The main board adopts MSTAR signal processing chip, which has powerful processing function and can support all kinds of standard and non-standard signals. Using high specification devices, it has good working

    performance.

    * 2x10W Audio amplifier

     * Support max resolution to : 1920x1200

     * Input PC signal support: ALL VESA standard

    * Support IR remote control

    *Support infrared detection control

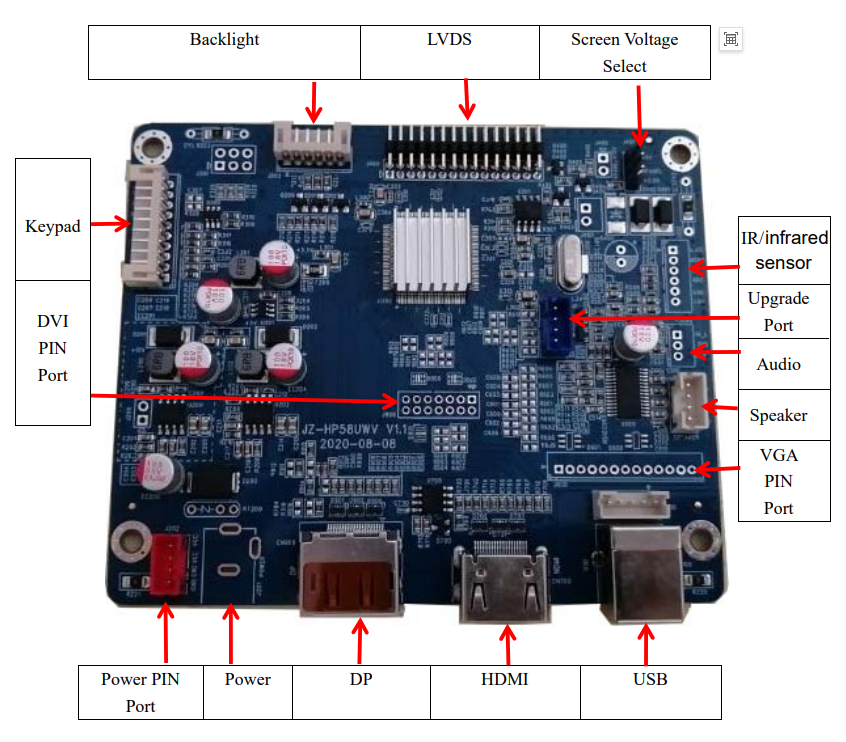

    3 CONTROLLER PICTURE

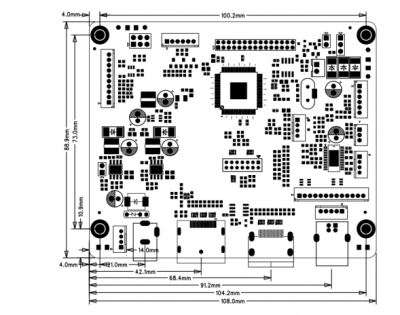

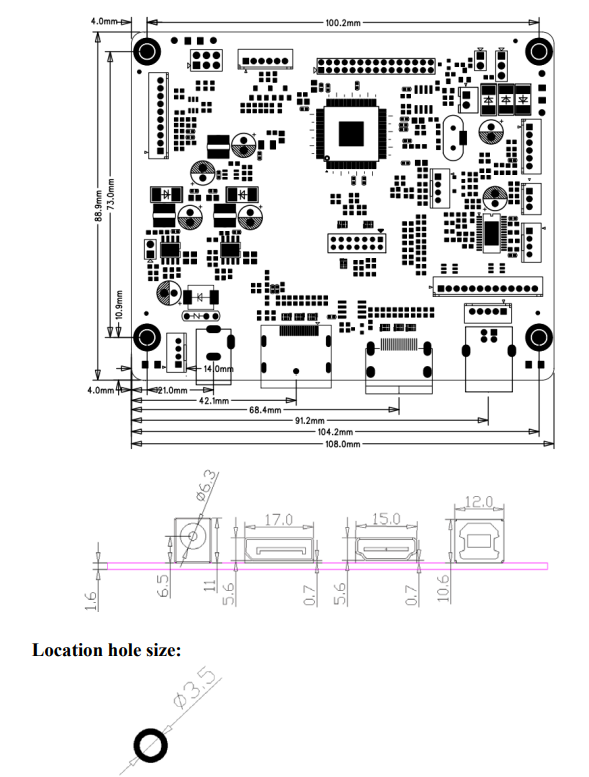

    4 DIMENSION

    PCB height: 1.6 mm

    Length and width: 108.0 x 88.9mm

    Total height: 12.6 mm



    More details, please contact with us Email:market@hzxuhong.com
