Your location:Home > Products > LCD Driver Board >
  • Model:JZ-VH68U
  • Brand:Xuhong
  • Aximum:≤1920x1200 &1920x1080
  • Size:≤ 82”
  • Maximum resolution supported:
  • Interface signal:VGA+ HDMI inputs
  • LCDinterface:
  • Operating Temp.:-20 ~ 60 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1. INTRODUCTION

    JZ-VH68U is a high-quality TFT LCD monitor controller board with VGA+ HDMI inputs, As the board is designed to act as a full monitor interface, besides the main functionality, also various appealing On-Screen-Display Menu layouts are possible on customer’s request.

    Key features:

    * LVDS output resolution up to 1920x1200 &1920x1080

    * Light sensor (optional)

     * Working temperature: -20 -- 60

    * Remote control * Support Serial UART control

    * Audio amplifier: 2x10W

    * Support DDC/CI (optional)

    * Support USB standard port to pin port

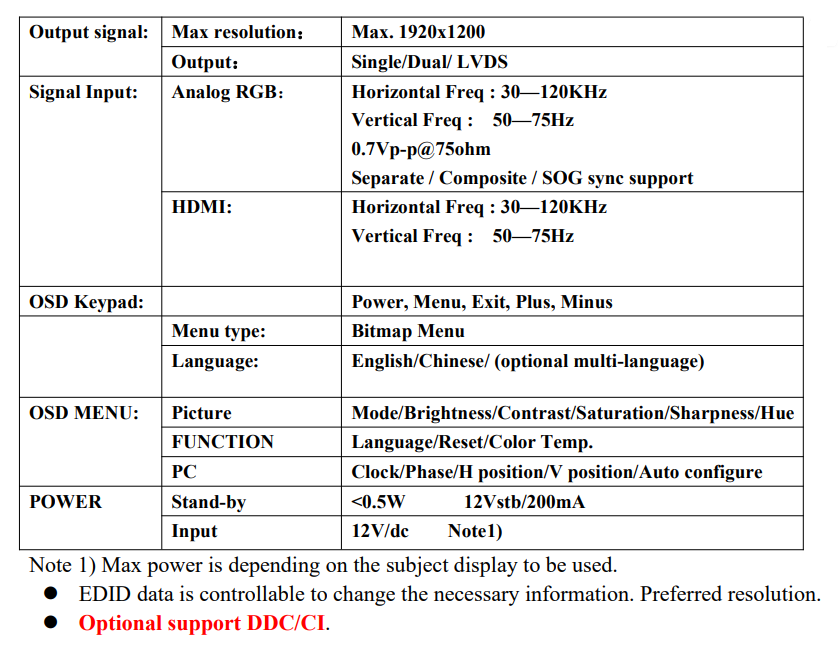

    2. GENERAL SPECIFICATION

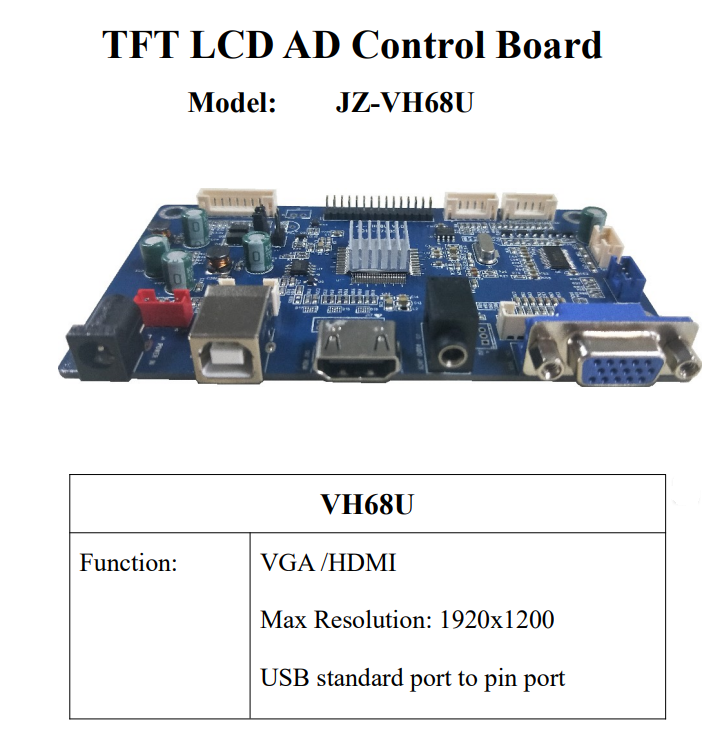

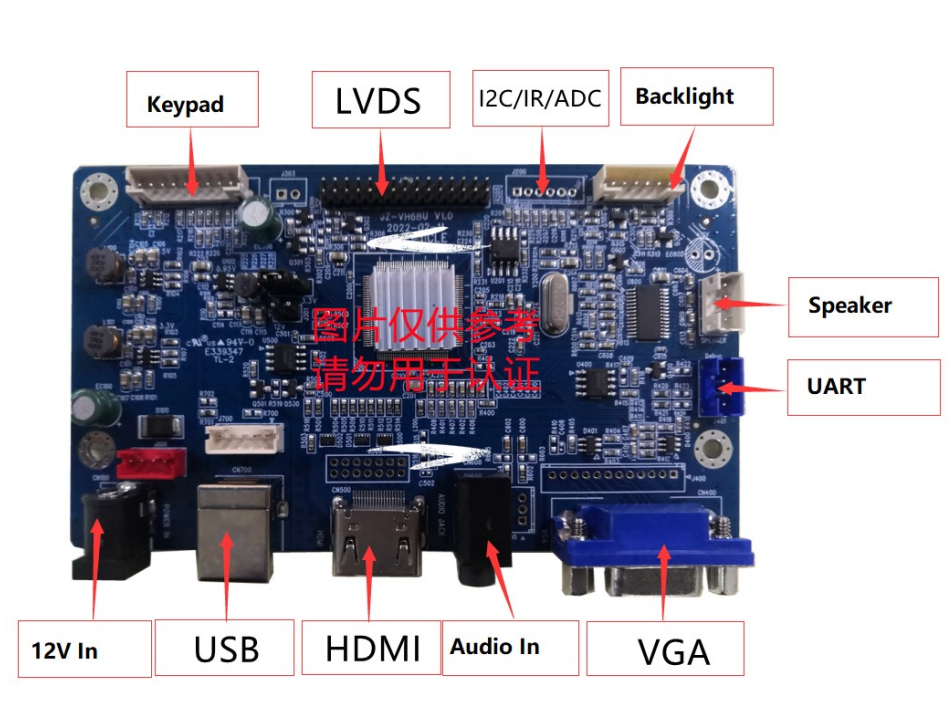

    3. CONTROLLER PICTURE

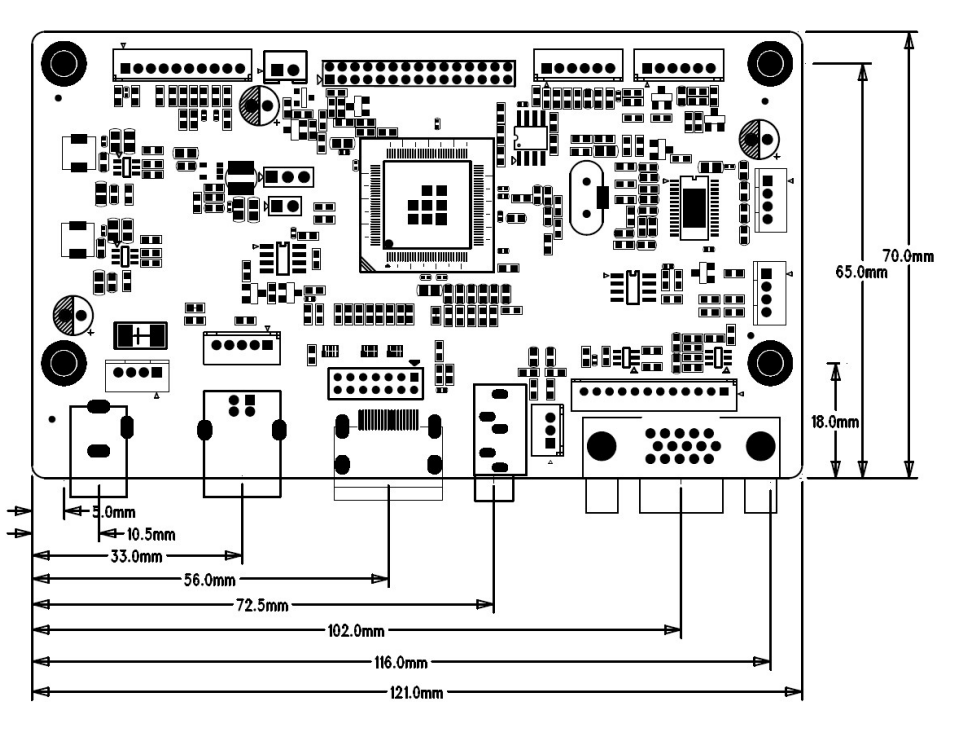

    4. CONTROLLER DIMENSIONS


    PCB height: 1.6 mm

    Total height: 15.0 mm

    Length and width: 121.0 x 70.0 mm
