  • FPD-UHD driver board with 1 VGA and 1 DVI connection Port 1 HDMI and 1 DP,
  • FPD-UHD driver board with 1 VGA and 1 DVI connection Port 1 HDMI and 1 DP,
  • FPD-UHD driver board with 1 VGA and 1 DVI connection Port 1 HDMI and 1 DP,
  • Model:FPD-UHD
  • Brand:Xuhong
  • Aximum:≤4096x2160
  • Size:≤ 82”
  • Maximum resolution supported:
  • Interface signal:VGA/DVI/HDMI/DP/VBY1/eDP
  • LCDinterface:
  • Operating Temp.:
  • Production State:In Production
  • Click For Price
  • Technical Parameters
  • 1Product Overview

    This driver board is mainly used for TFT LCD screens that support VBY1 interface. The driver board comes with 1 VGA and 1 DVI connection 1 channel HDMI and 1 channel DP, supporting VBY1 and eDP output interfaces. The motherboard adopts an Mstar signal processing chip for processingPowerful and capable of supporting various specifications of standard and non-standard signals. Using high specification devices with good working performance.


    2Key features:

    Integrate 2 * 2 high-quality image scaling engines, capable of processing 4 simultaneously 4K2K@30Hz Video input stream.

    *Built in VBY1 interface, supports a maximum resolution of 4096x2160@60Hz LCD Panel.

    *Support large screen external power control, ultra-low standby power consumption.

    *Supports PIP/PBP windows.

    *Supports 4K eDP signal output and supports two formats of eDP LCD screens, HBR and HBR2.

    *Integrate 4 composite digital interfaces, supporting HDMI/DVI/DP/MHL interfaces, and also integrate 1 analog input port, supporting PC (VGA) input.



    3Product feature description

    Display output

    Maximum resolution:

    Max4096x2160

    Output interface:

    VXB1/eDP

    Support signal

    Analog RGB

    Horizontal Freq

    30—120KHz

    Vertical Freq

    50—75Hz

    0.7Vp-p@75ohm

    Separate   / Composite / SOG sync support

    Numbers

    HDMIDVI DP

    Horizontal Freq

    30—120KHz

    Vertical Freq

    50—75Hz

    Keys

    Power, Menu, Exit, Plus, Minus

    Menu Type

    Graphical menu

    Language support

    Language support for   multiple countries including Chinese and English

    Functional   operation


    Mode/Brightness/Contrast/Saturation/Sharpness/Hue

    FUNCTION

    Language/Reset/Color   Temp.

    PC

    Clock

    Phase

    H position

    V position

    Auto configure

    POWER

    Input voltage

    12V/dc Note1:

    Stand-by

    <0.5W 12Vstb/200mA

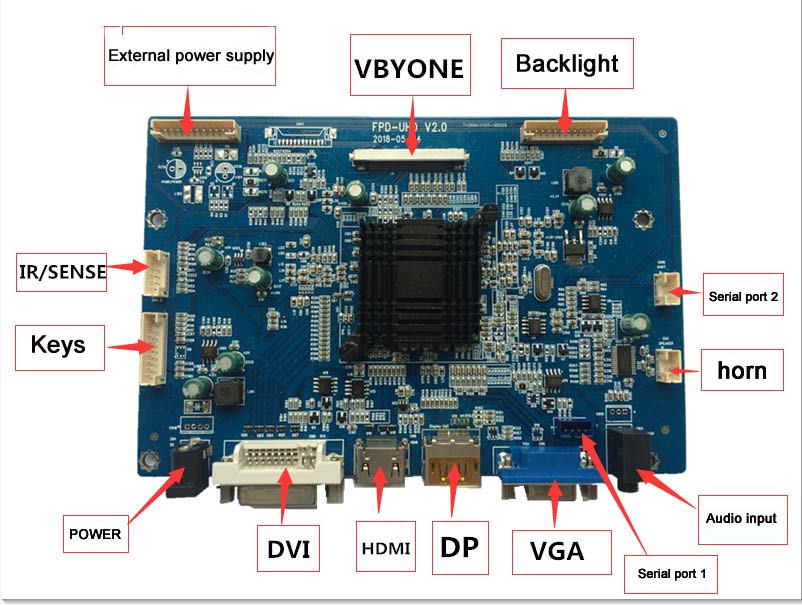

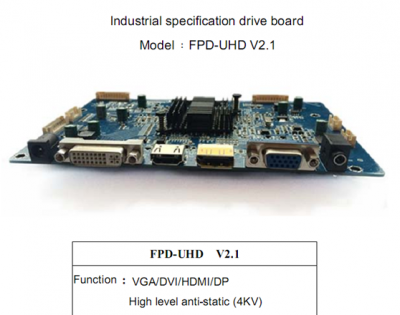

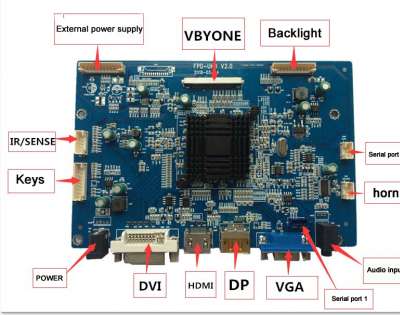

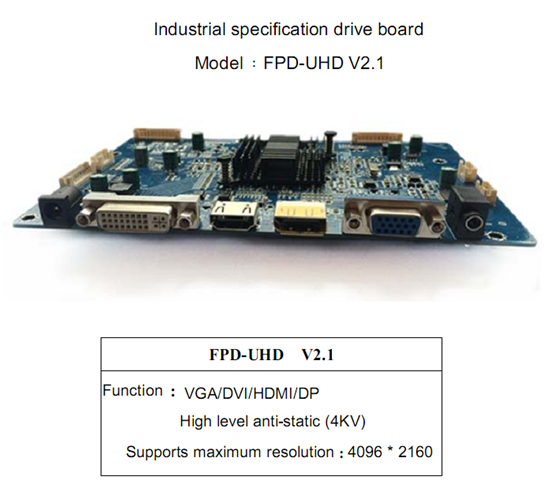

    4Product appearance

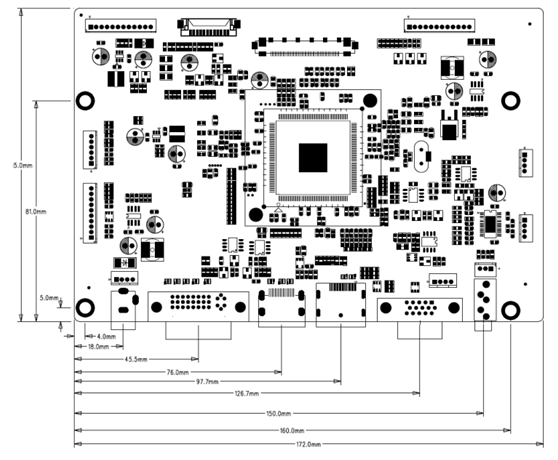

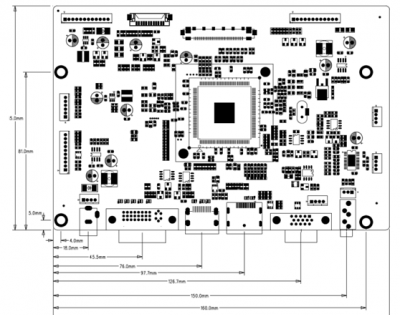

    5Product size





    PCB board thickness: 1.60 mm

    Total height: 15.00 mm

    Size: 172.00 x 115 mm

    PCB board thickness+highest part height:<17mm
