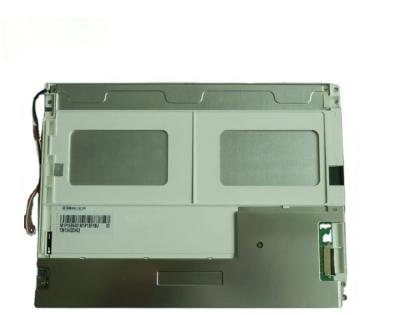

TIANMA TM104SDH02 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM104SDH02 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 10.4” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，Life>=50K hours,180°C;Reverse，6/8bit，Matte | |||
TIANMA TM104SDH02 Optical Details
| Basic Information : | Luminance | 400 cd/m²(Typ.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 10/15 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.345 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Color Temperature | 6760K | White Variation | 1.25/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 69% coverage |
| Adobe RGB | 53% coverage | DCI-P3 | 52% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM104SDH02 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600, SVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.088*0.264 mm | Pixel Pitch (W×H) | 0.264*0.264 mm [96PPI] | |
| Physical Size : | Active Viewing(mm) | 211.2(W)*158.4(H) mm | Bezel Area (mm) | 214.8(W)*162.5(H) mm |
| Outline Dim.(mm) | 243(W)*179.4(H) mm | Depth(mm) | 8.5 (Max.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Face mounting holes (2-Φ3.5, 2-R1.75) on left, right bezel | |||
| Other Spec : | Weight | 437g (Typ.) | Surface | Antiglare, Hard coating (3H) |
TIANMA TM104SDH02 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Driver IC : | COG Built-in NT39411 + NT39211 |
TIANMA TM104SDH02 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 380mA (Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| STARCONN | 107A20-0021RA-G3-R | 1.0mm | 20pins | 1 pcs | LVDS-20P1C8B-080C | ||||
TIANMA TM104SDH02 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 5S8P | Position | Edge light type | ||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 50K(Min.) (Hours) | |||||
| Lamp Electrical : | Input Voltage | 15/16/18V (Min./Typ./Max.) | Input Current | 160/240mA (Typ./Max.) | ||||||
| Frequency | 2.56/4.32W (Typ./Max.) | |||||||||
| Interface Features : | Position | - | Physical Type | Connector | ||||||
| Backlight Driver : | No | |||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||
| JST | BHSR-02VS-1 | 3.5 mm | 2 pins | 1 pcs | BLL-2PINS-HL | |||||
TIANMA TM104SDH02 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 20pcs / box | 11.7±0.59 Kgs | 530*350*250 mm (L*W*H) |
