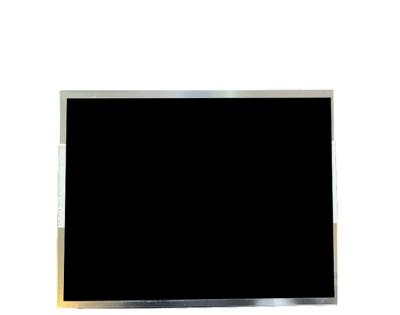

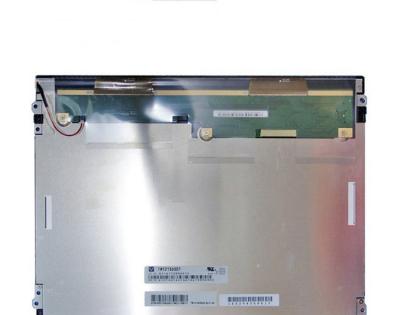

TIANMA TM121SDS01 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM121SDS01 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight，Life>=50K hours,With LED Driver， 180°C;Reverse，6/8bit，Matte | |||
TIANMA TM121SDS01 Optical Details
| Basic Information : | Luminance | 450 cd/m²(Typ.) | Contrast Ratio | 700:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 10/25 (Typ.)(Tr/Td) (ms) | |
| Viewing Angle | 80/80/65/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 46% | sRGB | 65% coverage |
| Adobe RGB | 49% coverage | DCI-P3 | 48% coverage | |
| Rec.2020 | 35% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM121SDS01 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)*600 [SVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W*H) | 0.1025*0.3075 mm | Pixel Pitch (W*H) | 0.3075*0.3075 mm [82PPI] | |
| Physical Size : | Active Viewing(mm) | 246*184.5 mm (H*V) | Bezel Area (mm) | 249.05*188.3 mm (H*V) |
| Outline Dim.(mm) | 279*209 mm (H*V) | Depth(mm) | 9.0 (Typ.) mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Face mounting holes (7 pcs) on left, right bezel | |||
| Other Spec : | Weight | TBD | Surface | Antiglare |
TIANMA TM121SDS01 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
| Power Consumption : | 6.8W (Typ.) |
TIANMA TM121SDS01 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - | ||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 270/325mA (Typ./Max.) | |||||
| Interface Features : | Position | - | Physical Type | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| STM | MSB240420HE | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-080B | ||||
TIANMA TM121SDS01 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||||||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||||||
| Lamp Electrical : | Voltage Input | 25.0/33.0V (Min./Max.) | Current Input | 80mA (Typ.) | |||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||||
| STM | MSB240420HE | 1.25mm | 20pins | 1 pcs | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Voltage Input | 12V | Current Input | 480/660mA (Typ./Max.) | |||||||||
