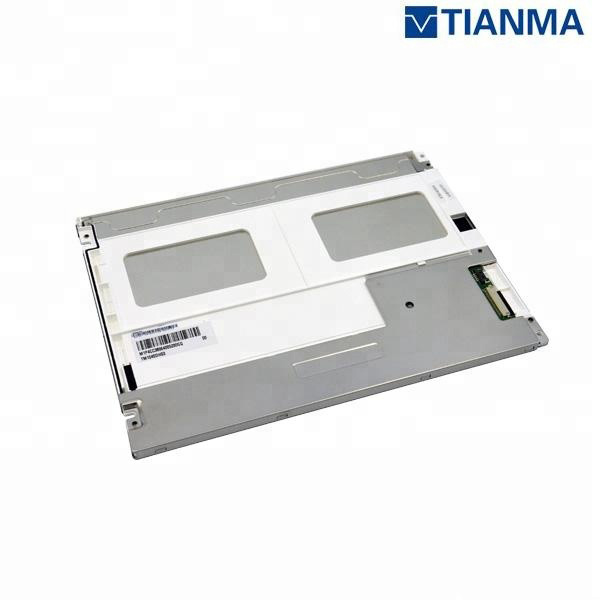

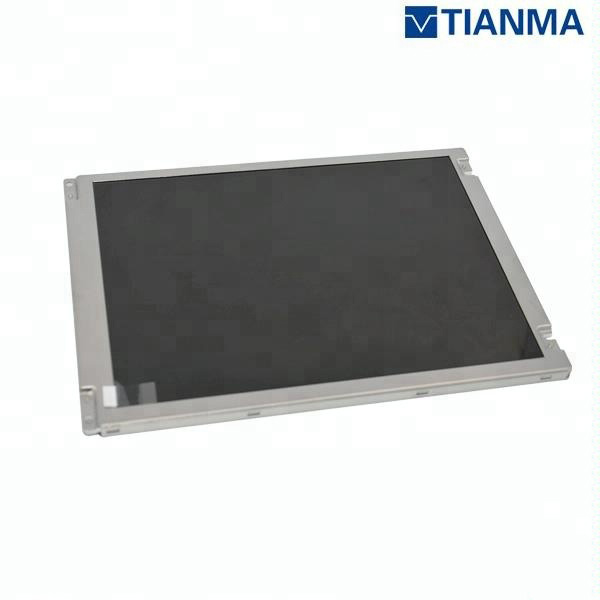

TIANMA TM121JDSG10 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM121JDSG10 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 12.1” | Designed For | Industrial | |
| Maximum Ratings : | OP Temperature | -30 ~ 80 °C | ST Temperature | -30 ~ 80 °C |
| RoHS | RoHS | Vibration Level | ||
| Features : | Wide Temperature,WLED Backlight,Life>=50K hours, With LED Driver,Matte | |||
TIANMA TM121JDSG10 Optical Details
| Basic Information : | Luminance | 450 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 12/13 (Typ.)(Tr/Td) | |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | SFT, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.316; Wy:0.350 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6200K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 39% | sRGB | 55% coverage |
| Adobe RGB | 41% coverage | DCI-P3 | 41% coverage | |
| Rec.2020 | 29% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM121JDSG10 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*800, WXGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.068*0.204 mm | Pixel Pitch (W*H) | 0.204*0.204mm [124PPI] | |
| Physical Size : | Active Viewing(mm) | 261.1(W)*163.2(H) mm | Bezel Area (mm) | 262.12(H) *164.2(V) |
| Outline Dim.(mm) | 278(W)*184(H) mm | Depth(mm) | 9.9/10.4 (Typ./Max.) | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Spec : | Weight | 440g (Typ.) | Surface | Antiglare |
TIANMA TM121JDSG10 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | COG Built-in RM91M39, RM76M59 |
TIANMA TM121JDSG10 Interface Details
| Signal Systerm : | LVDS (1 ch, 8-bit) | Logic Voltage | - | ||||||
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 660mA (Typ.) | |||||
| Consumption | 2.18W (Typ.) | ||||||||
| Interface Features : | Position | - | Physical Type | Connector | |||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||
| STARCONN | 093G30-B0001A-G4 | 1.0mm | 30pins | 1 pcs | |||||
TIANMA TM121JDSG10 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type | |||
| Exchange | - | Lamp Shape | - | Lamp Life | 50K(Min.) (Hours) | ||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | |||||
| Interface Detail : | Input Voltage | 10/12/15V (Min./Typ./Max.) | Input Current | 660mA (Typ.) | |||||
| Consumption | 7.20W (Typ.) | ||||||||
| Backlight Driver : | With LED Driver | ||||||||
TIANMA TM121JDSG10 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 15 pcs / box | 10.0±0.5 Kgs | 530*430*274 mm |
