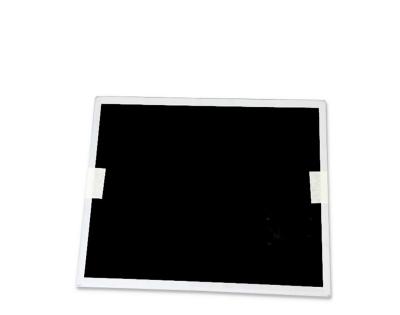

TIANMA TM150TDSG52 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM150TDSG52 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 15” | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | 0 ~ 65 °C | ST Temperature | -20 ~ 65 °C |
| RoHS | RoHS | Vibration Level | |
| Features : | WLED Backlight,With LED Driver,6/8bit,Matte |
TIANMA TM150TDSG52 Optical Details
| Basic Information : | Luminance | 250 cd/m²(Typ.) | Contrast Ratio | 600:1 (Typ.) (Transmissive) |
| Good View at | - | Response Speed | 3/5 (Typ.)(Tr/Td) (ms) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | White Variation | 1.25/1.33 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 63% | sRGB | 80% coverage |
| Adobe RGB | 62% coverage | DCI-P3 | 65% coverage |
| Rec.2020 | 47% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM150TDSG52 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768, XGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch | 0.099*0.297 (mm) (H*V) | Pixel Pitch | 0.297*0.297 (mm) (H*V) [85PPI] |
| Physical Size : | Active Viewing(mm) | 304.128(H) *228.096(V) | Bezel Area (mm) | 307.4(H) *231.3(V) |
| Outline Dim. (mm) | 326.5(H) *253.5(V) | Outline Depth | 11.8±0.3 mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | Normal bezel |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel |
| Other Features : | Weight | 1.00Kgs (Typ.) | Surface | Antiglare |
TIANMA TM150TDSG52 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 7.5W (Typ.) |
TIANMA TM150TDSG52 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | - |
| Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 500/550mA (Typ./Max.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| P-TWO | 185083-20121 | 1.25mm | 20pins | 1 pcs | LVDS-20P1C8B-010K |
TIANMA TM150TDSG52 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | - | Position | Edge light type |
| Exchange |
- | Lamp Shape | - | Lamp Life | 30K(Min.) (Hours) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| STM | MSB24038P5 | 1.25 mm | 5pins | 1 pcs | |
| Backlight Driver : | With LED Driver |
| Driver Electrical : | Input Current | 750/800mA (Typ./Max.) | Input Voltage | 12.0V (Typ.) |
TIANMA TM150TDSG52 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 14 pcs / box | 14.6 Kgs | 378*368*315.5 mm |
