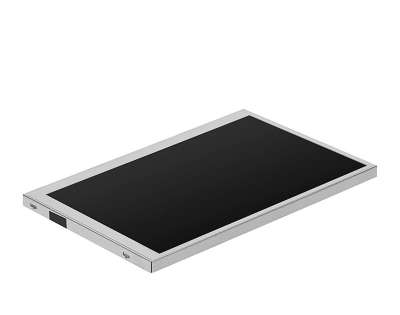

1.TIANMA P0640XGF1MB00 Application Details
Basic Info : | Panel Brand | TIANMA | Panel Model | P0640XGF1MB00 |
Diagonal Size | 6.4" | Application | Industrial |
Panel Type | a-Si TFT-LCD , LCM | Model Alias | - |
Reliability : | Operating Temp. | -30 ~ 80 °C | Storage Temp. | -40 ~ 90 °C |
RoHS State | RoHS |
|
|
Specific Features : | Wide Temperature，WLED Backlight，Life≥50K hours，With LED Driver，Matte |
2. TIANMA P0640XGF1MB00 Mechanical Details
Pixel Features : | Pixel Format | 1024(RGB)×768 [XGA] | Dot Pitch | 0.04225×0.12675 mm (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch | 0.12675×0.12675 mm (H×V) [200PPI] |
Mechanical Size : | Display Area | 129.79×97.34 mm (H×V) | Bezel Area | - |
Outline Dim. | 140.76×110.52 mm (H×V) | Outline Depth | 2.83/6.2 (Typ./Max.) mm |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 4:3 (H:V) | Shape Style |
|
Holes & Brackets : | Without |
Other Features : | Weight | TBD | Surface | Antiglare |
3. TIANMA P0640XGF1MB00 Optical Details
Basic Information : | Brightness | 400 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) | Optical Mode | SFT, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 30 (Typ.)(Tr+Td) (ms) |
Color Performance : | Chromaticity | Wx:0.292; Wy:0.326 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 7763K | White Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 50% | sRGB | 70% coverage |
Adobe RGB | 52% coverage | DCI-P3 | 52% coverage |
Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4. TIANMA P0640XGF1MB00 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
5. TIANMA P0640XGF1MB00 Backlight Details
Back-light Features: | Lamp Shape | 2 strings | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
Replacement | - | Amount | 9S2P | Position | Edge light type |
Interface Features : | Type | Included in signal interface | Position | - | Lamp Driver | With LED Driver |
Driver Electrical : | Voltage Input | 12.0±0.8V |
| Current Input | - |
6.TIANMA P0640XGF1MB00 Interface Details
Signal Systerm : | LVDS (1 ch, 8-bit) + SPI | Logic Voltage | - |
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | - |
Interface Features : | Type | Connector |
| Position | - |
Connector Detail : | Brand | Model | Pin Pitch | Pins | Amount | Amount |
|
| NA | 30 pins | 1 pcs |
|
7. TIANMA P0640XGF1MB00 Carton Details
Package Type | Pcs/Package | Package LWH (mm) | G.W (kgs) |
| 46 | 398×290×315 | N/A |
