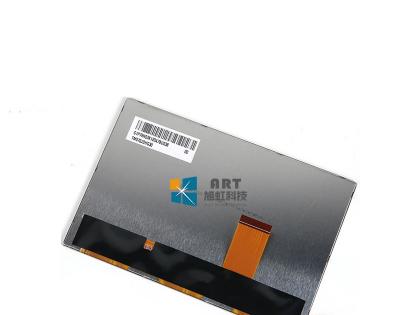

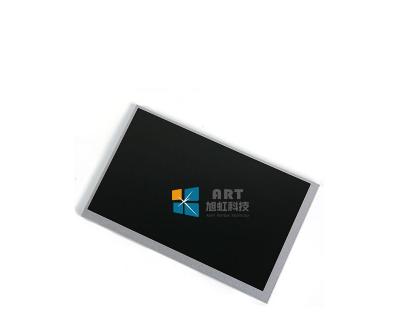

TIANMA TM070DDH03 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM070DDH03 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 7.0” | Designed For | Pad&Table，Netbook PC,Industrial，MID UMPC,MP3 PMP | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80°C |
| RoHS | RoHS | Vibration Level | ||
| Features : | WLED Backlight,U/D,L/R Reverse，6/8bit，Matte | |||
TIANMA TM070DDH03 Optical Details
| Basic Information : | Luminance | 320 cd/m² (Min.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 20 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 75/75/70/75 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.310; Wy:0.330 | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
Color Temperature | 6869K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 51% | sRGB | 71% coverage |
| Adobe RGB | 54% coverage | DCI-P3 | 53% coverage | |
| Rec.2020 | 38% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM070DDH03 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)×600 [WSVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.050×0.150 mm (H×V) | Pixel Pitch (W×H) | 0.150×0.150 mm (H×V) [169PPI] | |
| Physical Size : | Active Viewing(mm) | 153.6×90 mm (H×V) | Bezel Area (mm) | 156.2×92.6 mm (H×V) |
| Outline Dim.(mm) | 165.75×105.39 mm (H×V) | Depth(mm) | 3.4±0.3 mm | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 17:10 (H:V) | Orientation | Landscape type | |
| Fixation : | Without | |||
| Other Spec : | Weight | 112g (Typ.) | Surface | Antiglare |
TIANMA TM070DDH03 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Power Consumption : | 1.543W (Typ.) |
TIANMA TM070DDH03 Interface Details
| Signal Systerm : | LVDS (1 ch, 6/8-bit) | Logic Voltage | ||||||||
| Signal Electrical : | Voltage Input | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) | Current Input | 16/33/0.4/0.4mA (Typ.)(IDD/IAVDD/IGH/IGL) | ||||||
| Consumption | 426.5/646.1mW (Typ./Max.) | |||||||||
| Interface Features : | Position | - | Physical Type | FPC | ||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | ||||
| 0.5mm | 40pins | 1 pcs | LVDS-40P1C8B-050A | |||||||
TIANMA TM070DDH03 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S6P | Position | Edge light type | ||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 15K(Min.) (Hours) | |||||
| Lamp Electrical : | Input Current | 120mA (Typ.) | Input Voltage | 9.3V (Typ.) | ||||||
| Consumption | 1.116W (Typ.) | |||||||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||||||
| Backlight Driver : | No | |||||||||
TIANMA TM070DDH03 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
| 50 pcs / box | 8.826±5% Kgs | 530×350×250 mm |
