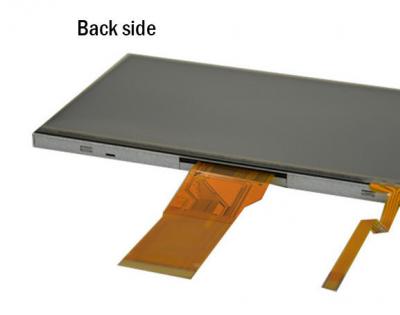

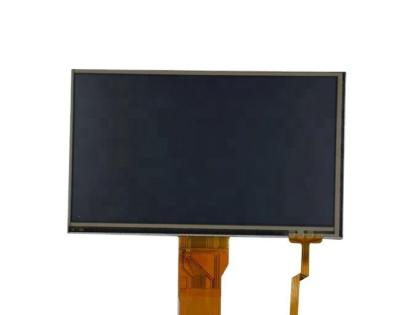

TIANMA TM070RBH10-20 Application Details
| Basic Detail : | Panel Brand | TIANMA | Model Name | TM070RBH10-20 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 7.0” | Designed For | Industrial，Digital Photo Frame，Portable DVD Player，MP3 PMP | |
| Maximum Ratings : | OP Temperature | -20 ~ 70 °C | ST Temperature | -30 ~ 80°C |
| RoHS | RoHS | Vibration Level | ||
| Features : | With Touch，WLED Backlight,U/D,L/R Reverse，6/8bit，Matte | |||
TIANMA TM070RBH10-20 Optical Details
| Basic Information : | Luminance | 350 cd/m² (Min.) | Contrast Ratio | 500:1 (Typ.) (Transmissive) |
| Good View at | 12 o'clock | Response Speed | 25 (Typ.)(Tr+Td) (ms) | |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive | |
| Color Performance : | Chromaticity | Wx:0.317; Wy:0.334 | Display Colors | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Color Temperature | 6243K | White Variation | 1.33 (Typ.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 49% | sRGB | 69% coverage |
| Adobe RGB | 51% coverage | DCI-P3 | 51% coverage | |
| Rec.2020 | 37% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
TIANMA TM070RBH10-20 Mechanical Details
| Pixel Features : | Number of Pixel | 800(RGB)×480 [WVGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (W×H) | 0.0642×0.1790 mm (H×V) | Pixel Pitch (W×H) | 0.1926×0.1790 mm (H×V) [134PPI] | |
| Physical Size : | Active Viewing(mm) | 154.08×85.92 mm (H×V) | Bezel Area (mm) | 157.08×89.39 mm (H×V) |
| Outline Dim.(mm) | 164.9×100 mm (H×V) | Depth(mm) | 6.8±0.3 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9 (H:V) | Orientation | Landscape type | |
| Touch Panel : | Touch Points | - | Touch Panel | 4-wire Resistive Touch |
| TP Controller | Without touch controller | Touch Signal | - | |
| Fixation : | Without | |||
| Other Spec : | Weight | 195g (Typ.) | Surface | Antiglare |
TIANMA TM070RBH10-20 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
| Time Controller (T-CON) : | Embedded T-CON |
TIANMA TM070RBH10-20 Interface Details
| Signal Systerm : | Parallel RGB (1 ch, 6/8-bit) | Logic Voltage | 0≤VIL≤0.3VCC; 0.7VCC≤VIH≤VCC | ||||||||
| Signal Electrical : | Voltage Input | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) | Current Input | 10/30/0.3/0.3mA (Max.)(ICC/IDD/IGH/IGL) | |||||||
| Interface Features : | Position | - | Physical Type | FPC | |||||||
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment | |||||
| 0.5mm | 50pins | 1 pcs | DRGB-50P1C8B-115A | ||||||||
TIANMA TM070RBH10-20 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 3S8P | Position | Edge light type | ||||
| Exchange | - | Lamp Shape | Array | Lamp Life | 20K(Typ.) (Hours) | |||||
| Lamp Electrical : | Input Current | 160/200mA (Typ./Max.) | Input Voltage | 9.6/10.8V (Typ./Max.) | ||||||
| Consumption | 1.54/2.16W (Typ./Max.) | |||||||||
| Interface Features : | Position | - | Physical Type | Included in panel signal interface | ||||||
| Backlight Driver : | No | |||||||||
TIANMA TM070RBH10-20 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L×W×H) |
| 50 pcs / box | 13.9Kgs | 530×350×250 mm |
