Is it the LCD or backlight that determines the lifespan of industrial LCD screen
Date:2025-11-25
Is it the LCD or backlight that determines the lifespan of industrial LCD screens?
Backlight is the main factor determining the lifespan of industrial LCD screens.
The backlight system is a "shortcoming" in the lifespan of LCD screens, and its core reasons are as follows:
Backlight - the main limiting factor for lifespan
The backlight system is an active light-emitting component, and its aging and failure are inevitable physical processes.
Here’s a detailed breakdown of why this is the case and the roles both components play.
1.The Backlight: The Primary Lifespan Limiter
The backlight is an active component that degrades over time. It's the "workhorse" of the display and has a predictable, finite lifespan.
Why the Backlight Fails First:
Luminance Decay (Most Common Cause):
The industry-standard definition of an LCD's "lifetime" is the point at which its brightness decays to 50% of its original value (often called L50).
Whether using LEDs (current standard) or older CCFLs, the light output gradually diminishes over time. This is an inherent physical property.
In demanding industrial environments (7x24 operation, high ambient brightness), this decay directly impacts usability.
2.Component Failure:
LEDs: While individual LEDs have long lifespans (often 50,000-100,000 hours), they are driven by power supplies and driver ICs that can fail prematurely due to heat, voltage spikes, or poor manufacturing.
Heat: High brightness generates significant heat. Poor thermal management is the number one enemy of LEDs and their driving electronics, drastically accelerating luminance decay and component failure.
Optical Components: The light guide plate, diffusers, and prism films can yellow, warp, or become brittle under prolonged heat and light exposure, leading to dark spots, uneven lighting, or color shifts.
The LCD Panel: The Stable, Passive Component
The liquid crystal layer itself is a stable, passive component sealed between two glass substrates. Its inherent lifespan is typically much longer than the backlight's.
Common LCD Panel Failure Modes (Less Frequent):
1.Image Persistence (Burn-in): Not a permanent failure, but a condition where a ghost image remains visible. This is more common with static content on industrial HMIs and is caused by DC voltage imbalance stressing the liquid crystals.
2.Seal Failure: If the seal that contains the liquid crystals is broken, air and moisture can enter, causing large black spots or the entire display to fail.
3.Physical Damage: The glass substrates and the matrix of thin-film transistors (TFTs) are fragile and can be cracked by impact or stress.
4.Ultraviolet (UV) Light Degradation: For outdoor industrial screens, prolonged UV exposure can slowly break down the polarizer layers, causing them to delaminate or turn brownish.

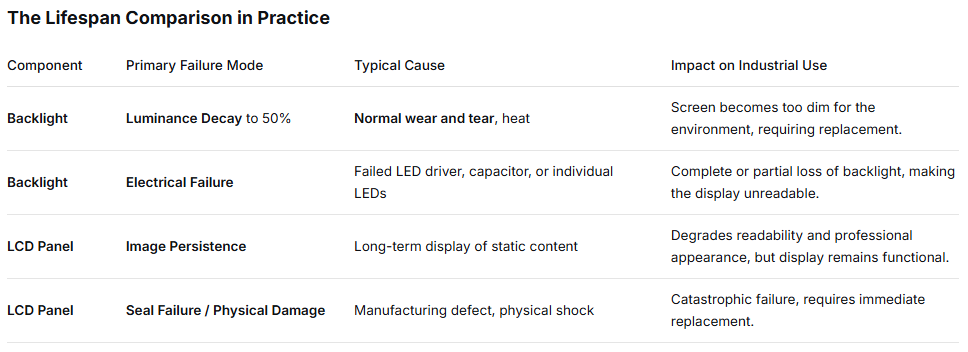

Summary and Industrial Implications
The Backlight is the "Consumable": Think of the backlight as a light bulb in a projector. Even if the projector's lenses (the LCD panel) are perfect, you still can't see the image if the bulb burns out or becomes too dim.
The LCD is the "Shutter": The LCD panel is like a sophisticated shutter that controls light passage. It has no moving parts and, if protected and well-made, will far outlast the backlight.
What This Means for Your Industrial Selection:
1.Focus on Backlight Quality and Specifications: When choosing an industrial screen, pay close attention to:
Rated Lifespan (L50): Look for screens rated for 50,000, 70,000, or even 100,000 hours.
Thermal Management: Screens with metal frames, heat sinks, and efficient designs will have longer-lasting backlights.
High-Quality LEDs: Brand-name LEDs from manufacturers like Nichia or Cree typically have better consistency and longevity.
2.Understand the Application: In a 24/7 factory environment, the backlight will be the limiting factor. In a less critical, intermittently used device, the entire module might become obsolete before it fails.
3.Consider the Entire Ecosystem: While the backlight is the main concern, also ensure the LCD panel is from a reputable manufacturer to avoid issues like image persistence or seal failure, which can be just as disruptive.
