Nanoflow detector 13.3-inch LCD with multi-point touch screen should

Date:2023-02-22

Application product: nano-flow detector
Industry: software and information technology services

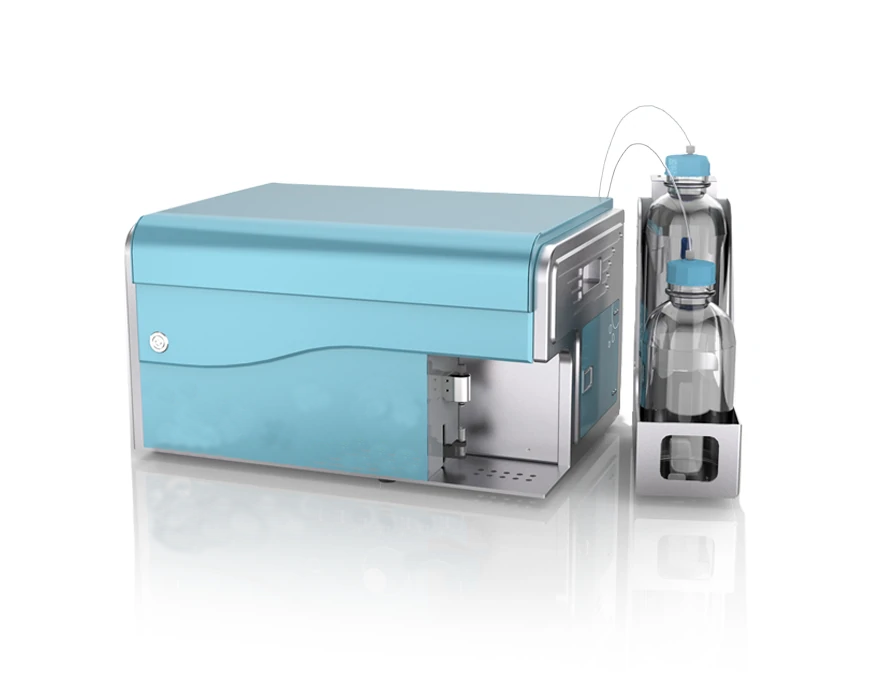

Flow NanoAnalyzer covers the blind area of particle size detection below 200 nm by traditional flow cytometry, including the characterization of natural biological nanoparticles such as nanoparticles and subcellular structures, bacteria, viruses, and extracellular vesicles (exocrine), which opens a window to the nano world for flow cytometry technology. Through the high resolution, high selectivity and high throughput detection of the particle size and distribution, particle concentration and biochemical properties of a single nanoparticle (7-1000 nm), the nano-flow detector provides a powerful characterization tool for the development of life science and biomedical research and nanotechnology.

Customer's LCD screen selection requirements: The customer wants to find a 13.3-inch LVDS interface industrial LCD screen and an 11.6-inch EDP interface LCD screen with a resolution of 1920 * 1080, equipped with a narrow frame USB interface capacitive screen, which requires frame pasting, and is recommended if it is cost-effective.

Our recommended scheme: G133HAN01.1 (AUO 13.3 inches)+XH13351C, G116HAN01.0 (AUO 11.6 inches)+XH116052A

G133HAN01.1 (AUO13.3 inch):

133HAN01.1 resolution is 1920 (RGB) × 1080 [FHD] 166PPI, brightness is 400 cd/m ² (Typ.), contrast 800:1, visual angle 89/89/89/89 (Typ.) (CR ≥ 10), working temperature: - 20~70 ° C, signal system LVDS (2 ch, 8-bit), terminal, 30 pins, backlight type WLED, 50K hours, including LED driver, response speed 25 (Typ.) (Tr+Td) ms, G133HAN01.1 is applicable to industry.


XH13351C 13.3-inch capacitive touch screen technical parameters:
1. COVER LENS is chemically strengthened glass;
2. FPC interface line is full-out PIN interface; 4PIN socket - USB interface
3, IC (Yili ILI2511)
4. Interface PIN is 0.3 * 102
4. The surface hardness is 6H;
5. The light transmittance is more than 87%;
6. Unspecified tolerance is ± 0.2mm
7. The product conforms to RoHS standard
8. Display area: 295.1 (horizontal) * 166.6 (vertical) mm
   Appearance dimension: 309.2 (horizontal) × 182.89 (vertical) × 1.85 (thick) mm

G116HAN01.0 (Yoda 11.6 inch):

G116HAN01.0 resolution is 1920 (RGB) × 1080 [FHD] 190PPI, brightness is 300 cd/m ² (Typ.), contrast 800:1, visual angle 89/89/89/89 (Typ.) (CR ≥ 10), working temperature: 0~50 ° C, signal system eDP (2 Lanes), eDP1.2, 30 pins, terminal, backlight type WLED, 15K hours, including LED driver, response speed 25 (Typ.) (Tr+Td) ms, G116HAN01.0 is applicable to industry.

XH116052A 11.6 inch capacitive touch screen technical parameters:
1. COVER LENS is reinforced glass (G+G structure);
2. IC (Yili ILI2511), touch channel: TX22 * RX38
3. The surface hardness is 6H;
4. Light transmittance of finished product>85%
5. Working environment: - 10~60 ° C
6. Storage temperature: - 20~70 ° C 6. Unspecified tolerance is ± 0.3mm
7. The product conforms to RoHS standard
8. Display area: 257.32 (horizontal) * 145.18 (vertical) mm
Appearance dimension: 270.37 (horizontal) × 159.79 (vertical) × 1.85 (thick) mm

Advantages: The G133HAN01.1 LCD screen has wide temperature, wide color gamut, high contrast and high saturation, a life span of more than 50000 hours, 400 brightness, full view, vibration resistance of 1.5G, and the 13.3-inch LCD screen is the main model. The G116HAN01.0 LCD screen is selected because the size of the customer's structural parts just matches this one, and it is also the EDP interface, full view, and the 11.6-inch LCD screen is also the main model. These two models are applicable to industry.


AUO LCD screen:https://www.auo-lcd.com/products/auo-lcd-screen/
AUO13.3-inch LCD screen selection:https://www.auo-lcd.com/products/auo-lcd-screen/13_3inch/

Consult Hangzhou Xuhong for more LCD solutions for the application of nano-flow detector products. I recommend you the most suitable LCD screen with the best cost performance.
