Application of 5-inch engineering vehicle touch LCD display screen


  Industry: Software and Information Technology Services

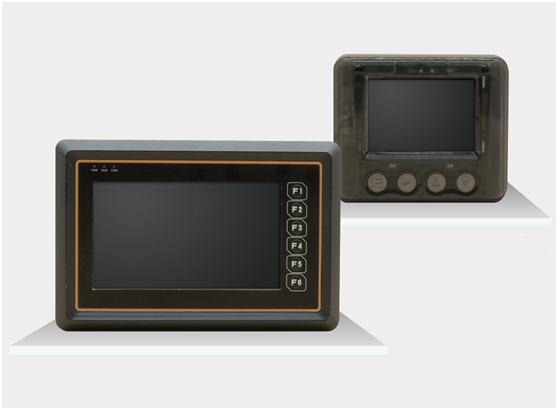

  Application product: Engineering car screen

  The engineering machinery control screen is suitable for electronic control engines and other equipment, and can display the J1939 standard parameters of China III engine ECU and transmission system ECU. This washing product can be widely used in the fields of engineering machinery, ships, agricultural machinery, and loading and unloading equipment.

  Product features:

  Resistant to harsh working conditions such as vibration, high and low temperatures, humidity, salt spray, etc

  Adopting a 5-inch  touch TFT LCD screen, supporting switching between Chinese and English

  I/O interface expandable

  Support CAN bus communication

  Customer LCD screen selection requirements: 5 inches, 800 * 480, 40P, RGB interface, outdoor use, equipped with IIC capacitive screen, preferably with 6P capacitive screen interface. Industrial machinery equipment has high seismic requirements.

  Our recommended solution: T050BWSA-04+STC-05099

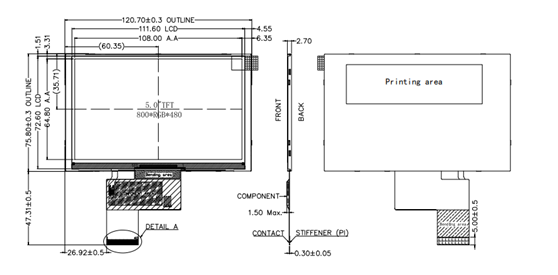

  T050BWSA-04 has a resolution of 800 * 480 and a brightness of 1000 cd/m ² (Typ.), contrast 1000:1, viewing angle 80/80/80/80, working temperature: -30~80 ° C, signal system RGB, Driver IC: IC-ST7262-02, T050BWSA-04 suitable for industrial use.

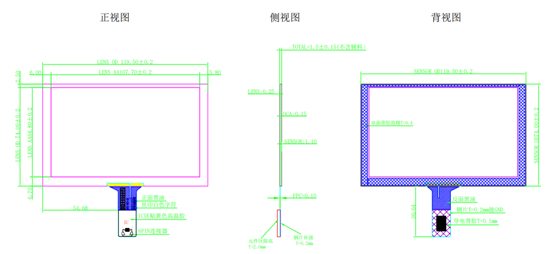

  STC-05099 5.0 inch resistive touch screen technical parameters:

  1. IC: GT911

  2. LENS: 0.25mm

  3. OCA: 0.15mm

  4. ITO SENSOR: 1.1mm

  5. Lead: FPC (PINCH=0.5mm)

  6. Total thickness: 1.25 ± 0.15mm (excluding accessories)

  7. 2. Working voltage: 3.3V

  8. Transmittance: ≥ 85

  9. Surface hardness: 3H

  10. Working environment: -20 ℃~+70 ℃, ≤ 90% RH

  11. Storage environment: -30 ℃~+80 ℃, ≤ 90% RH

  12. AA: 107.70 * 64.80, VA: 119.50 * 74.00

  13. The final dimension tolerance is ± 0.2mm

  Advantages: T050BWSA-04 is a 5.0-inch IPS LCD module with high brightness display, IPS display mode, ultra wide viewing angle, high contrast, working temperature: -30-80 degrees, and also meets customer seismic requirements. The resolution is 800 * 480, brightness is 1000cd/m2, and it meets the needs of outdoor high brightness screens and can be read in sunlight. It supports RGB888 communication interface and can be used in industrial products such as construction machinery equipment, dew point testers, gas detection alarms, etc.
