PC056TN53 V1: Lighting up the Display Field of Veterinary Ultrasound Equipment
Date:2025-05-07
PC056TN53 V1: Lighting up the Display Field of Veterinary Ultrasound Equipment.
In the field of veterinary ultrasound equipment, a high-quality screen is the key to accurate diagnosis. The PC056TN53 V1 LCD module launched by Xuhong Technology Company, with its excellent performance, has become an ideal compatible replacement for the 5.6-inch AT056TN53 V1 in Guntronics, bringing a new upgrade to the vision of the beast super machine.

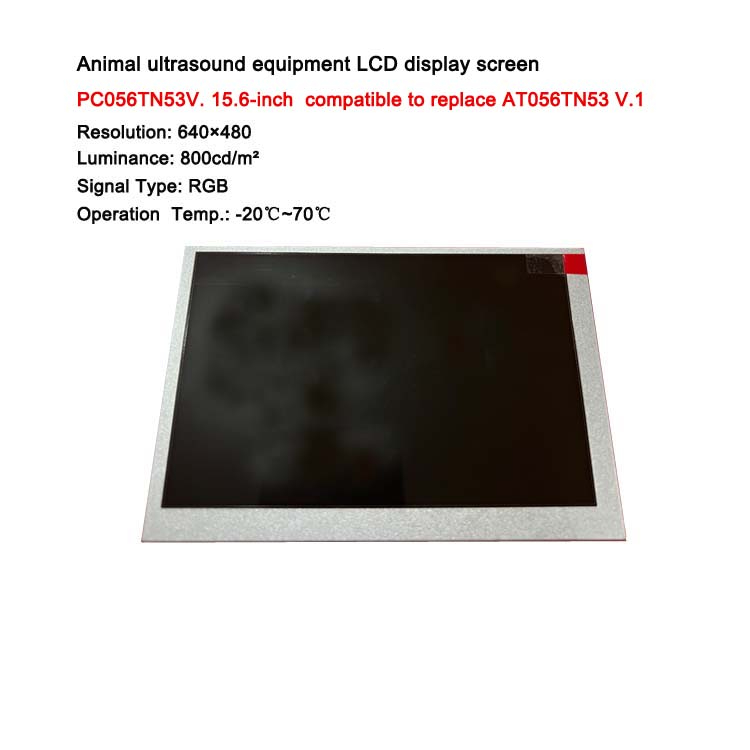

PC056TN53 V1 is a 5.6-inch TFT-LCD liquid crystal module that uses TN (twisted nematic) technology to present a normally white display and transmissive visual effect. It has a display brightness of 800 cd/m ², which can clearly display image details even in strong lighting environments. A transmission contrast ratio of 500:1 allows for clear black and white grayscale levels, accurately presenting subtle differences in tissue structure, which is crucial for veterinary ultrasound equipment. The echo intensity of different tissues in ultrasound images needs to be distinguished by contrast, and a high contrast screen can help veterinarians more accurately identify the boundary between the lesion site and normal tissue.
Its viewing angle is 70/70/50/70 (Typ.) (CR ≥ 10) (left/right/up/down), and the optimal viewing angle is 6 O'clock, which means that the screen can maintain good display effects at different viewing angles. During the operation, veterinarians can obtain clear and accurate image information from any direction when viewing the screen. A response time of 10/15 (Typ.) (Tr/Td) ms enables the screen to quickly update images and reduce ghosting in ultrasound dynamic images. In veterinary ultrasound examination, the organs and tissues of animals are dynamically presented under the scanning of ultrasound. The fast response screen ensures the smoothness of the image, allowing veterinarians to observe the movement of organs in real time, such as the beating of the heart and the peristalsis of the gastrointestinal tract, thus more accurately assessing the health status of animals.
Each pixel uses a 6-bit grayscale signal, which can display 262K colors with a color saturation of 50% (NTSC), meeting the basic requirements of animal ultrasound equipment for image color. Although veterinary ultrasound images are mainly grayscale, in some special cases, such as color Doppler ultrasound imaging, appropriate color display can help veterinarians better identify information such as the direction and velocity of blood flow.
In terms of backlight, PC056TN53 V1 adopts a WLED side entry light source with a lifespan of up to 30K hours. It includes an LED driver, which means that the screen can work stably for a long time, reducing equipment downtime caused by backlight failure and improving the reliability and lifespan of veterinary ultrasound equipment.
Its working temperature range is -20~70 ° C, storage temperature range is -30~80 ° C, vibration resistance is 1.5G (14.7 m/s ²), and it can adapt to various complex usage environments. Veterinary ultrasound equipment may be used in different places, such as veterinary clinics, animal farms, and field rescue operations, where the environmental temperature and vibration conditions vary. The good environmental adaptability of PC056TN53 V1 ensures that the equipment can operate stably under various conditions, providing reliable protection for animal health diagnosis.
In summary, the PC056TN53 V1 LCD module is perfectly suited for veterinary ultrasound equipment due to its excellent display performance, high contrast, fast response, and good environmental adaptability. It not only meets the display requirements of basic medical imaging, but also maintains clear image presentation in complex lighting environments, providing strong support for veterinary diagnostic work. It is the best choice for upgrading veterinary ultrasound equipment screens.
