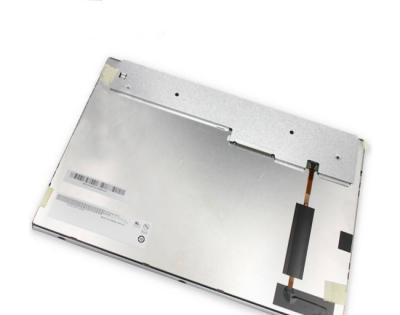

AUO G121EAN01.2 Application Details
| Basic Detail : |
Manufacturer |
AUO |
Model Name |
G121EAN01.2 |
| Panel Type |
a-Si TFT-LCD , LCM |
Model Alias |
|
| Panel Size |
12.1inch |
Designed For |
Idustrial，Outdoor High Brighness |
| Maximum Ratings : |
OP Temperature |
-30 ~ 85°C |
ST Temperature |
-30 ~ 85 °C |
| RoHS |
RoHS |
Vibration Level |
1.5G (14.7 m/s²) |
| Features : |
Srgb，Wide Temperature，Ultra High Brightness，WLED Backlight，Life>=70K hours,With LED Driver, Matte,6/8 bit |
AUO G121EAN01.2 Optical Details
| Basic Information : |
Luminance |
1000cd/m² (Typ.) |
Contrast Ratio |
1000:1 (Typ.) (Transmissive) |
| Good View at |
Symmetry |
Response Speed |
25 (Typ.)(Tr+Td) (ms) |
| Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Operating Mode |
IPS, Normally Black, Transmissive |
| Color Performance : |
Chromaticity |
Wx:0.313; Wy:0.329 |
Support Color |
262K/16.7M (6-bit / 8-bit) |
| Color Temperature |
6485K |
White Variation |
1.33 (Max.)(5 points) |
| 1931 Color Gamlt : |
NTSC Ratio |
73% |
sRGB |
99% coverage |
| Adobe RGB |
75% coverage |
DCI-P3 |
75% coverage |
| Rec.2020 |
54% coverage |
Remarks |
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : |
Outdoor Visibility |
Sunlight Readable |
Transmissivity |
- |
AUO G121EAN01.2 Mechanical Details
| Pixel Features : |
Number of Pixel |
1280(RGB)×800 [WXGA] |
Arrangement |
RGB Vertical Stripe |
| Dot Pitch(W×H) |
0.068×0.204 mm |
Pixel Pitch(W×H) |
0.204×0.204 mm [124PPI] |
| Physical Size : |
Active Viewing(mm) |
261.12(W)×163.2(H) mm |
Outline Dim. |
264.22×168.12 mm (H×V) |
| Outline Dim. |
278×184 mm (H×V) |
Depth(mm) |
7.32/9.29 (Typ./Max) |
| Outline Features : |
Form Style |
Flat Rectangle |
Outline Shape |
|
| Aspect Ratio |
16:10 (H:V) |
Orientation |
Landscape type |
| Mounting : |
Side mounting holes (4-M2) on left, right bezel |
| Other Spec : |
Weight |
450g (Max.) |
Treatment |
Antiglare, Hard coating (3H) |
AUO G121EAN01.2 Electronics Details
| Refresh Rate : |
60Hz |
| Reverse Scan : |
No |
| Total Consumption : |
11.78W (Typ.) |
AUO G121EAN01.1 Interface Detail
| Signal Electrical : |
Voltage Supply |
3.3V (Typ.) |
Current Supply |
500mA (Max.) |
| Consumption |
1.65W (Max.) |
Signal Interface |
LVDS (1 ch, 6/8-bit) |
| Interface Features : |
Position |
- |
Type |
Connector |
| Interface Detail : |
Brand |
Model |
Pitch |
Pins |
Quantity |
Pin Configuration |
| STARCONN |
093G30-B0001A-1 |
1.0mm |
30 pins |
1 pcs |
- |
AUO G121EAN01.2 Backlight Details
| Lamp Features : |
Lamp Type |
WLED |
Quantity |
- |
Position |
Edge light type |
| Exchange |
- |
Lamp Shape |
- |
Lamp Life |
70K(Min.) (Hours) |
| Lamp Electrical |
Voltage Supply |
24.4/30.6V (Typ./Max.) |
Current Supply |
61mA (Typ.) |
| Consumption |
4.88/6.25W (Typ./Max.) |
| Interface Features : |
Position |
- |
Physical Type |
Included in panel signal interface |
| Backlight Driver : |
With LED Driver |
| Driver Electrical : |
Voltage Supply |
0.63/0.73A (Typ./Max.) |
Current Supply |
10/12/15V (Min./Typ./Max.) |
| Consumption |
7.6/8.8W (Typ./Max.) |
AUO G121EAN01.2 Packing Details
| Package Box : |
Quantity |
Weight |
Box Size |
| 20 pcs / box |
- |
- |
