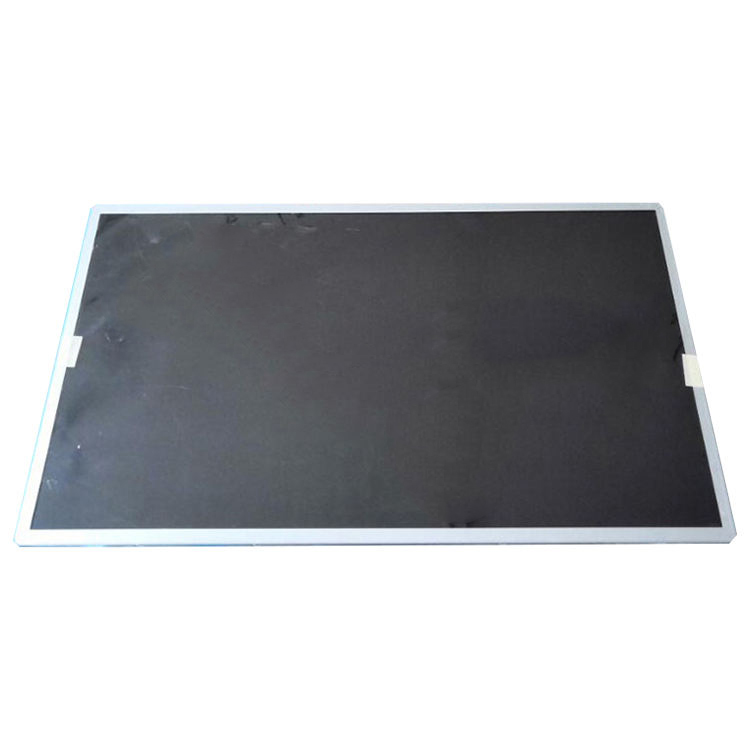

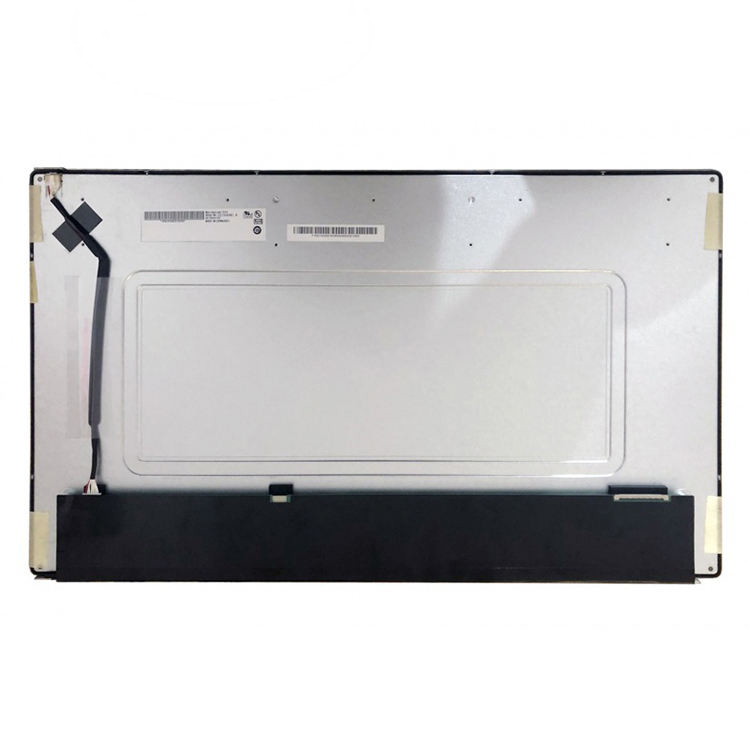

AUO G215HAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G215HAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | ||
| Panel Size | 21.5” | Designed For | Industrial,Medical Imaging | |
| Maximum Ratings : | OP Temperature | 0 ~ 60 °C | ST Temperature | -20 ~ 60 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) | |
| Features : | WLED Backlight,Life>=50K hours,Matte, Upside I/F,With LED Driver | |||
AUO G215HAN01.0 Optical Details
| Basic Information : | Luminance | 400cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 12/10(Typ.)(Tr/Td) | |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive | |
| Color Performance : | Chromaticity | X:0.313; Y:0.329 | Support Color | 16.7M (8-bit) |
| Color Temperature | 6485K | White Variation | 1.18/1.25 (Typ./Max.)(9 points) | |
| 1931 Color Gamlt : | NTSC Ratio | 73% | sRGB | 96% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 76% coverage | |
| Rec.2020 | 55% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO G215HAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)×1080, FHD | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.08265×0.24795 mm (H×V) | Pixel Pitch(mm) | 0.24795×0.24795 mm (H×V) [102PPI] | |
| Physical Size : | Active Viewing(mm) | 476.064×267.786 mm (H×V) | Outline Dim.(mm) | 495.6(H) × 292.2(V) |
| Bezel Area (mm) | 479.84(H) × 271.31(V) | Outline Depth | 10.7±0.5 | |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | - |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type | |
| Holes & Brackets : | Side mounting holes (4-M3) on left, right bezel | |||
| Other Features : | Weight | 2.10Kgs (Typ.) | Surface | Antiglare, Hard coating (3H) |
AUO G215HAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Power Consumption : | 18.44W (Typ.) |
AUO G215HAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 0.88/1.06A (Typ./Max.) |
||||
| Consumption | 4.4/4.84W (Typ./Max.) |
Signal Interface | LVDS (2 ch, 8-bit) | |||||
| Interface Features : | Position | Rear | Type | Connector | ||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | ||
| JAE | FI-XB30SSRLA-HF16 | 1 pcs | 30 pins | 1.0 mm | LVDS-30P2C8B-160A | |||
AUO G215HAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 9S7P | Position | Edge light type (Top side) | |||||||
| Exchange | - |
Lamp Shape | 7 strings | Lamp Life | 50K(Min.) Hours | ||||||||
| Interface Features : | Position | Rear | Physical Type | Connector |
|||||||||
| Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration | |||||||
| STM | MS24049HJ | 1 pcs | 9 pins | 1.25 mm | |||||||||
| Backlight Driver : | With LED Driver | ||||||||||||
| Driver Electrical : | Voltage Supply | 12.0V | Current Supply | 1.17/1.4A (Typ./Max.) | |||||||||
| Consumption | 14.0/16.8W (Typ./Max.) | ||||||||||||
AUO G215HAN01.0 Packing Details
| Package Box : | Quantity | Weight | Box Size |
| 7 pcs / box | 18.0 Kgs | 580×275×385 mm (L×W×H) |
